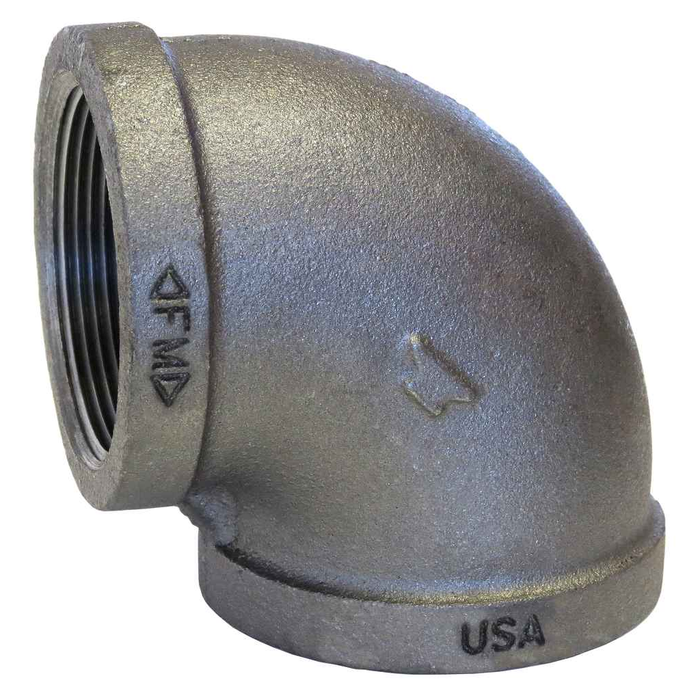

1/4 BLK MI 90 ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.25
- Size 2:
- 0.25
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° Elbow
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 0.11 lbs
ASC Engineered Solutions 310000401 – Frequently Asked Questions
1) Does the ASC 1/4 inch black malleable iron 90 degree elbow have female threads on both ends?
Both ends are FPT, so it's female on both sides. It takes 1/4 inch male NPT pipe threads on each end, cut to ASME B1.20.1. If you need a male end, you'd run a nipple into one side or use a street elbow instead.
2) Can I use a black malleable iron elbow on a potable water line?
No. Black malleable iron fittings are for gas, air, steam, and similar non-potable service. The black finish has no corrosion protection against water, so for domestic water you want galvanized, copper, or brass instead. Black iron is the standard for natural gas and propane piping.
3) Will this elbow interchange with other brands of 1/4 inch black iron fittings on my job?
It should. The elbow is built to ASME B16.3 dimensions with ASME B1.20.1 threads, which is the same dimensional and thread standard every domestic malleable iron fitting line is made to. Laying lengths and thread engagement match, so it'll thread onto the same nipples and pipe you're already running.
4) What iron grade is this fitting made from?
The casting is malleable iron to ASTM A-197. That's the ferritic malleable iron grade used for threaded pipe fittings, which gives it the ductility to take thread engagement and a wrench without cracking the way gray cast iron would.
