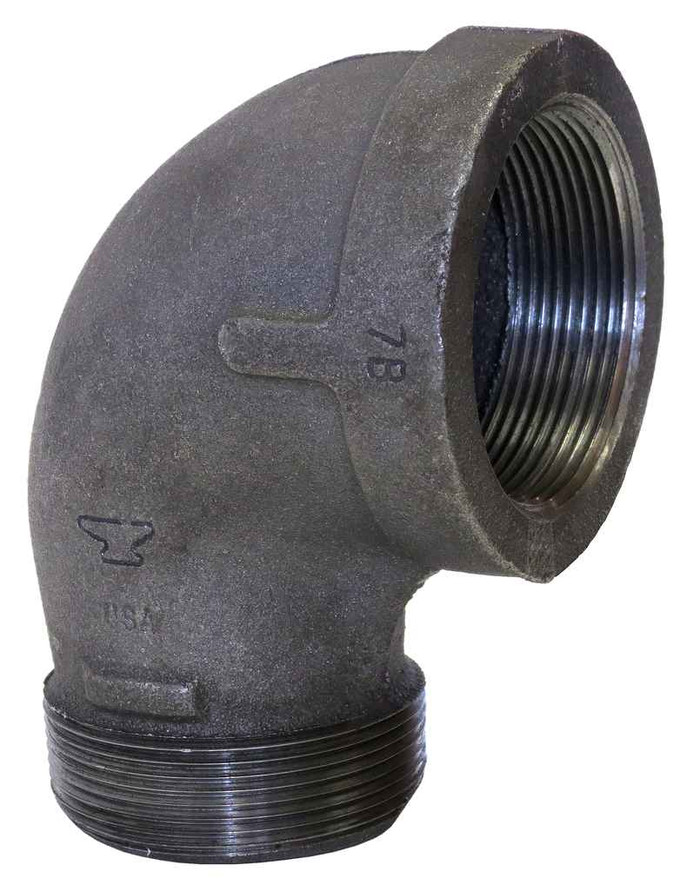

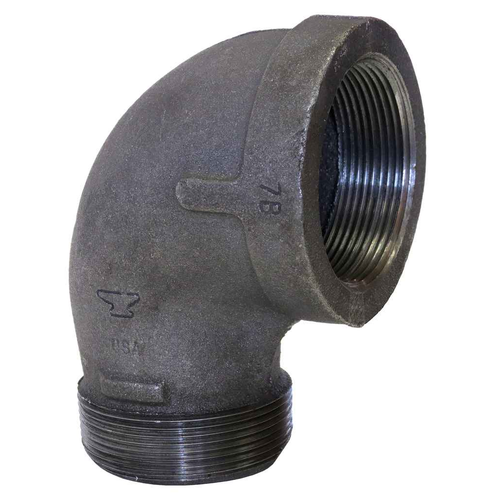

4 BLK MI 90 STREET ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- MPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 4
- Size 2:
- 4
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Street Elbows
- Product Type:
- Street Elbow
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 10.53 lbs
ASC Engineered Solutions 310017801 – Frequently Asked Questions
1) What is the difference between a street elbow and a regular 90 degree elbow in 4 inch black iron?
A street elbow has one female threaded end and one male threaded end, so it can thread straight into a fitting or valve without an intervening nipple. The ASC Engineered Solutions 4 inch black malleable iron 90 street ell carries FPT on one end and MPT on the other, both 4 inch. A standard 90 elbow is female on both ends and needs a nipple to reach the next fitting. Use the street ell where you need to turn a corner tight against another fitting and save the nipple and one joint.
2) Will this 4 inch black malleable iron street elbow thread onto standard NPT pipe?
Yes. The threads are cut to ASME B1.20.1, which is the NPT standard, so the female end takes a 4 inch NPT male pipe end or nipple and the male end threads into any 4 inch NPT female port. Use pipe dope or PTFE tape rated for the service. Nothing unusual about the prep on a 4 inch tapered joint.
3) How much does the 4 inch black malleable iron 90 street ell weigh for handling and hanger sizing?
10.53 lbs per fitting. At that weight on a 4 inch line, plan support close to the turn rather than letting the elbow hang off unsupported pipe, and expect a two-hand lift with a wrench on it.
