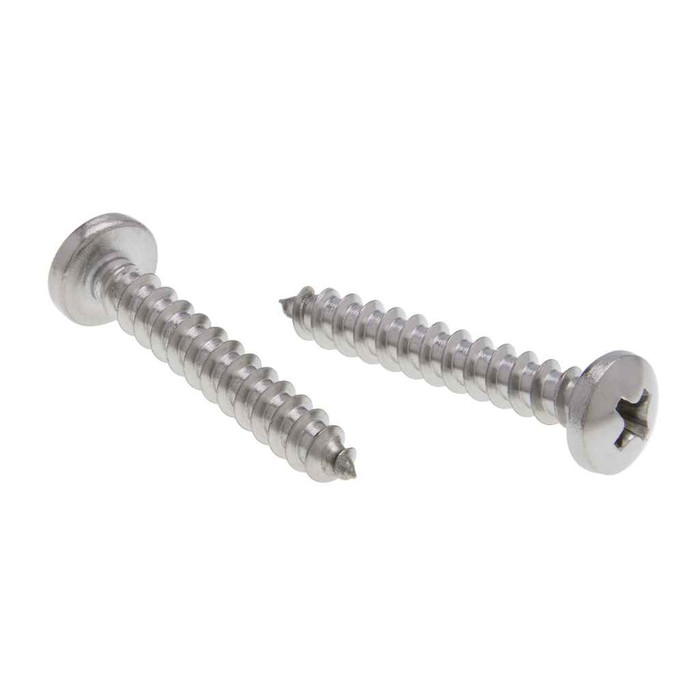

Metallics JSTSP30 14 x 3/4 in. Pan Head Phillips Tapping Screws - 18-8 Stainless - 100qty

Metallics #14 x 3/4 in. Pan Head Phillips Type A Tapping Screws - 18-8 Stainless Steel, 100 Pack

(No reviews yet) Write a Review

Model: JSTSP30
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.94
$1.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Metallics #14 x 3/4 in. Pan Head Phillips Type A Tapping Screws - 18-8 Stainless Steel

Professional Grade Stainless Steel Fasteners for Electrical Applications

Metallics delivers professional-grade Type A tapping screws engineered for reliable fastening in electrical, plumbing, and HVAC applications. These #14 x 3/4 in. pan head screws feature 18-8 stainless steel construction with Phillips drive for secure installation and corrosion resistance in demanding environments.

Professional Features & Benefits

  • 18-8 Stainless Steel Construction: Provides excellent corrosion resistance and durability for long-term performance in various environmental conditions.
  • #14 Diameter x 3/4" Length: Optimal sizing for secure fastening applications with 10 threads per inch for reliable engagement.
  • Pan Head Phillips Drive: Standard pan head design with Phillips recess enables consistent installation with common tools and uniform appearance.
  • Type A Tapping Design: Gimlet point configuration creates its own threads for efficient installation in sheet metal and thin materials.
  • 125 lb-in Minimum Torsional Strength: Engineered to withstand installation torque and operational stresses for reliable long-term service.
  • ASME B18.6.3-2013 Compliance: Manufactured to recognized dimensional standards ensuring consistent quality and compatibility.

Technical Specifications

  • Arra Compliant: N
  • Buy American Compliant: No
  • Country Of Origin: MUL
  • Department: Electrical
  • Dimensional Standard: ASME B18.6.3-2013
  • Division: Electrical H1
  • Drive Type: Phillips
  • Driver Size: #3
  • Fastener Head Height: 0.156 - 0.169 in.
  • Fastener Head Type: Pan
  • Fastener Head Width: 0.457 - 0.476 in.
  • Fastener Length: 4-Mar
  • Field Application: Electrical, Plumbing, Heating and Air Conditioning Industries
  • Height: 2.7 in
  • Language Code: EN
  • Material: 18-8 Stainless
  • Neurspe: https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slotted_Phillips_Self_Tap_SS.pdf
  • Order Minimum Imperial: 100
  • Order Minimum Uom Imperial: JR
  • Pack Type: Jar
  • Phillips Recess Depth: 0.148
  • Phillips Recess Diameter: 0.281 - 0.268
  • Phillips Recess Width: 0.036
  • Product Details: Type A Tapping Screw
  • Product Family: Electrical Supplies
  • Product Group: Fasteners
  • Product Height: 68.58 MM
  • Product Length: 3 in
  • Product Subgroup: Screws
  • Product Type: Type A Tapping Screw
  • Product Weight: 522 g
  • Product Width: 76.2 MM
  • Screw Point Type: Gimlet Point
  • Series: JSTSP
  • Sub Division: Electrical-E H2
  • Thread Per Inch: 10
  • Thread Standard: ASME B18.6.4
  • Torsional Strength: 125 lb-in minimum
  • Type2: Type A Tapping Screw
  • Weight: 1.15 lbs
  • Width: 3 in

Professional Applications

  • Electrical panel and enclosure assembly
  • HVAC equipment mounting and connections
  • Plumbing fixture installation
  • Sheet metal fabrication and repair
  • Commercial and industrial maintenance
  • Electrical conduit and raceway systems

Why Choose Metallics Quality?

Metallics fasteners are manufactured to ASME dimensional standards with consistent quality control for reliable performance. The 18-8 stainless steel construction provides long-term corrosion resistance, while the Type A tapping design ensures efficient installation across electrical, plumbing, and HVAC applications.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.156 - 0.169 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.457 - 0.476 in.
Fastener Length:
4-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slotted_Phillips_Self_Tap_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.148
Phillips Recess Diameter:
0.281 - 0.268
Phillips Recess Width:
0.036
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
1.15 lbs
Product Width:
3 in
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
10
Thread Standard:
ASME B18.6.4
Torsional Strength:
125 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JSTSP
Product Details:
Type A Tapping Screw
Product Material:
18-8 Stainless

Metallics JSTSP30 – Frequently Asked Questions

1) What size Phillips driver do I need for Metallics #14 x 3/4 in. pan head tapping screws?
A #3 Phillips bit. The recess on these #14 screws measures 0.148 in. deep, 0.268 to 0.281 in. across and 0.036 in. wide, so a #2 bit will sit shallow and cam out under installation torque. These screws are rated to 125 lb-in minimum torsional strength, which means you can drive them hard, but only with the right bit seated fully.
2) Do Type A tapping screws need a pilot hole, or do they cut their own thread?
The gimlet point on these Type A screws forms its own thread as it drives, which is what makes them quick in sheet metal and thin stock. You still drill a clearance hole in the top sheet and a pilot in the material being tapped; the point starts the thread, it does not pierce heavy plate. With 10 threads per inch, the coarse pitch is what gives holding power in thin material.
3) Are these Metallics stainless tapping screws Buy American or ARRA compliant?
No. The JSTSP30 screws are not Buy American compliant and are not ARRA compliant, with country of origin listed as multiple. If your project carries domestic-sourcing requirements on fasteners, these will not satisfy them.
4) Will 18-8 stainless tapping screws hold up in a damp or outdoor enclosure?
18-8 stainless is the standard austenitic grade for corrosion resistance in wet and washdown conditions, so these screws suit outdoor enclosures, rooftop HVAC curbs and mechanical rooms where a zinc-plated screw would rust at the head. For chloride-heavy coastal or pool environments, 316 is the better grade.
5) Is a pan head the right choice, or should I use a hex washer head for sheet metal?
Pan head gives a flat bearing surface with a rounded crown and sits cleanly on panel faces, with a head width of 0.457 to 0.476 in. and head height of 0.156 to 0.169 in. That head width spans a standard clearance hole without needing a washer. Hex washer head is the alternative when you want to drive with a nutsetter instead of a bit, or need a wider bearing area on soft or oversized holes. Pan head is not a flush fit; use a flat head if the screw has to sit below the surface.
6) Are Metallics JSTSP30 screws made to a dimensional standard I can put on a submittal?
Yes. Head and recess dimensions are built to ASME B18.6.3-2013, and the thread conforms to ASME B18.6.4, the tapping screw thread standard. Torsional strength is 125 lb-in minimum. Those three figures are what a spec reviewer typically wants on a fastener submittal.
7) How are the Metallics #14 x 3/4 in. tapping screws packaged and what is the minimum order?
They ship in a jar of 100, and 100 is the order minimum. Net product weight is 1.15 lbs per jar, which is a convenient count for a service van or a panel shop bench rather than a bulk box.
8) Can I use these tapping screws for plumbing and HVAC work, or are they electrical only?
They are rated for electrical, plumbing, and heating and air conditioning work. Typical uses are enclosure and panel assembly, duct and HVAC equipment mounting, fixture attachment and general sheet metal repair. The 18-8 stainless body is what makes them usable on the wet-side trades as well as inside dry panels.
