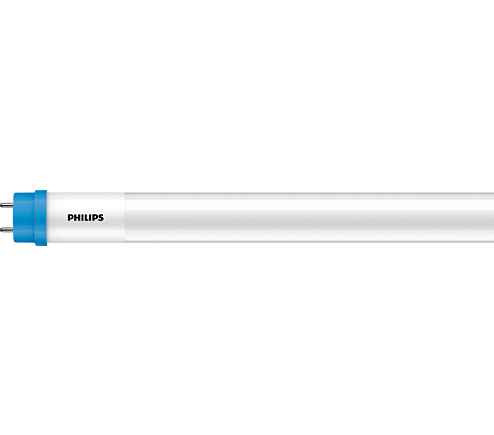

Philips Lighting 14W T8 LED Tube Light 48" 5000K Daylight Dimmable InstantFit

Philips Lighting 14W T8 LED Tube Light 48" 5000K Daylight Dimmable InstantFit

Professional LED lighting solution with plug-and-play compatibility

The Philips Lighting 14W T8 LED Tube Light delivers professional-grade illumination with 5000K daylight color temperature and dimmable functionality. This InstantFit LED tube provides plug-and-play compatibility with over 350 existing ballasts, offering 2100 lumens of bright, efficient lighting at 150 lm/W efficacy. Built with shatter-resistant polycarbonate construction and rated for up to 50,000 hours of operation, this DLC Standard certified tube minimizes maintenance while maximizing energy savings.

Professional Features & Benefits

• 14W Power Rating: Delivers energy-efficient operation while providing bright 2100 lumen output for reduced operating costs
• 5000K Daylight Color Temperature: Provides crisp, natural daylight illumination ideal for task lighting and color accuracy applications
• Dimmable Functionality: Offers flexible light control from 100-260 mA for customized lighting levels and additional energy savings
• InstantFit Compatibility: Works with over 350 ballasts and drivers for easy retrofit installation without rewiring
• 50,000 Hour Lifetime: Reduces maintenance frequency and replacement costs with extended operational life
• DLC Standard Certification: Meets utility rebate requirements and energy efficiency standards for professional installations
• Wide Operating Range: Functions reliably from -20�C to 45�C ambient temperature for versatile applications

Technical Specifications

• Base: G13 [ Medium Bi-Pin Fluorescent]
• Beam Angle Nom : 240 �
• Color Code: 850 [ CCT of 5000K]
• Color Consistency: <5
• Color Designation: Daylight
• Color Rendering Index Nom : 82
• Correlated Color Temperature Nom : 5000 K
• Dimmable: Yes
• Energy Certifications: DLC Standard
• Energy Saving Product: Yes
• Eu Rohs Compliant: Yes
• Initial Lumen Nom : 2100 lm
• Input Frequency: 25000-105000 Hz
• Lamp Current Max : 260 mA
• Lamp Current Min : 100 mA
• Llmf At End Of Nominal Lifetime Nom : 70%
• Luminous Efficacy Rated Nom : 150.00 lm/W
• Nominal Lifetime Nom : 50000 h
• Power Factor Nom : 0.9
• Power Rated Nom : 14 W
• Starting Time Nom : 0.5 s
• Switching Cycle: 50000X
• T Ambient Max : 45 �C
• T Ambient Min : -20 �C
• T Case Maximum Nom : 50 �C
• T Storage Max : 65 �C
• T Storage Min : -40 �C
• Voltage Nom : 120-277, 347 V
• Warm Up Time To 60 Light Nom : 0.5 s

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial facilities and warehouses requiring bright, efficient task lighting
• Parking lots and covered car parks needing reliable outdoor-rated illumination
• Office buildings and commercial spaces with existing T8 fluorescent fixtures
• Shopping centers and retail establishments requiring color-accurate lighting
• Educational facilities and healthcare environments needing daylight-quality illumination
• Manufacturing and assembly areas where precise visual tasks are performed

Why Choose Philips Lighting Quality?

Philips Lighting delivers proven reliability with DLC Standard certification, NSF certification, and RoHS compliance. The shatter-resistant polycarbonate construction and extended 50,000-hour lifetime ensure dependable performance in demanding commercial and industrial environments, backed by comprehensive warranty coverage for professional peace of mind.
