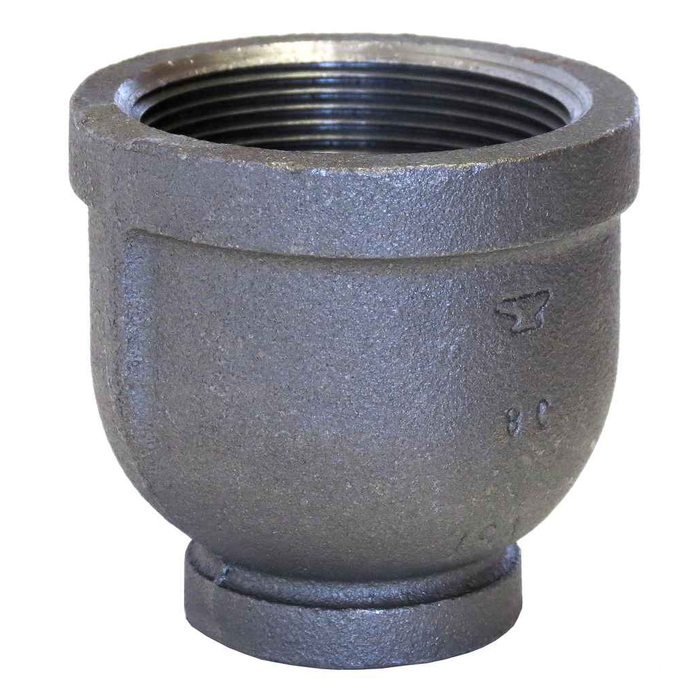

1/4X1/8 GALV MI REDUCER
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.25
- Size 2:
- 0.125
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Reducers
- Product Type:
- Reducer
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 0.08 lbs
ASC Engineered Solutions 311084800 – Frequently Asked Questions
1) Is the ASC Engineered Solutions 1/4 x 1/8 galvanized malleable iron reducer female on both ends?
Both ends are female pipe thread (FPT), so it threads onto male NPT pipe nipples or male fitting ends on each side. It steps 1/4 inch down to 1/8 inch, with threads cut to ASME B1.20.1. If you need a male-to-female step instead, you want a bushing or a hex reducing bushing, not this reducing coupling.
2) Is this galvanized reducer UL listed and FM approved for fire sprinkler work?
Yes, the 1/4 x 1/8 galvanized malleable iron reducer carries UL/FM recognition, which is what an AHJ looks for on fire protection piping. It is a standard (STD) class fitting dimensioned and pressure rated to ASME B16.3.
3) Can I use a galvanized malleable iron reducer on a wet or outdoor line?
The zinc coating is applied to ASTM A-153, the hot-dip galvanizing spec, so it holds up better than black iron in damp, outdoor, or wet-pipe service. The body is malleable iron to ASTM A-197. It is a threaded fitting, so use pipe dope or PTFE tape on the male threads going into it.
4) Will this reducer work for potable water?
This is a galvanized malleable iron threaded reducer built to ASME B16.3 with ASTM A-153 galvanizing. No lead-free or potable water certification is part of its specification, so for domestic water service specify a fitting certified for that use. For sprinkler, air, and general industrial threaded pipe it is the standard choice.
