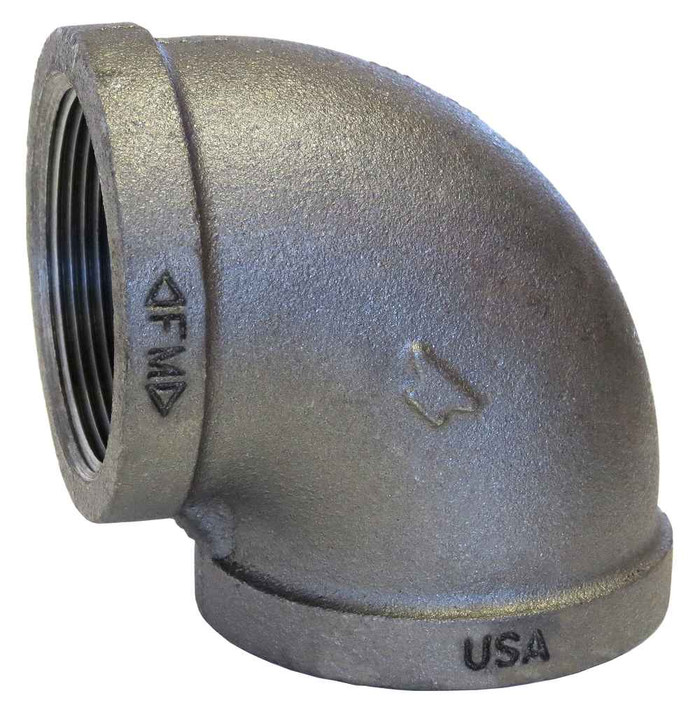

1/8 GALV MI 90 ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.125
- Size 2:
- 0.125
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° Elbow
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 0.07 lbs
ASC Engineered Solutions 311000202 – Frequently Asked Questions
1) What size and thread does the ASC Engineered Solutions galvanized 90 degree malleable iron elbow take on each end?
Both ends are 1/8 inch female pipe thread (FPT), so it joins two pieces of 1/8 inch male-threaded pipe or nipples at a right angle. Threads are cut to ASME B1.20.1, the NPT standard, so it mates with standard NPT pipe and nipples from any manufacturer.
2) Can I use a galvanized malleable iron 90 elbow on a water line, or should it be black iron?
Galvanized is the right choice for water and wet service; the hot-dip zinc coating is applied to ASTM A-153, which is the coating spec for threaded hardware and gives corrosion protection black iron does not have. Black malleable iron fittings are the ones used on gas and dry systems. Same body either way, the difference is the coating.
3) Is a 1/8 inch malleable iron elbow strong enough for a pressurized line, or should I step up to extra heavy?
This one is standard (STD) class, rated per ASME B16.3, which covers the large majority of plumbing and general service piping. If the drawing calls for 300 class or extra heavy malleable, this is not that fitting and you need the heavier body instead. Check what the spec sheet on the job calls out before you commit.
4) Do I need a sealant on this fitting or does it seal on its own?
NPT threads are tapered and seal metal to metal on the taper, but they are not intended to seal dry. Plan on PTFE tape or a pipe thread compound rated for your service, which is not supplied with the elbow. The threads here are cut to ASME B1.20.1, so any standard NPT-rated sealant works.
5) What is the part number and weight on the ASC 1/8 inch galvanized 90 elbow for my purchase order?
Order it as ASC Engineered Solutions part 311000202. Each fitting weighs 0.07 lbs, which is worth knowing if you are pricing freight on a bulk MRO order of several hundred.
