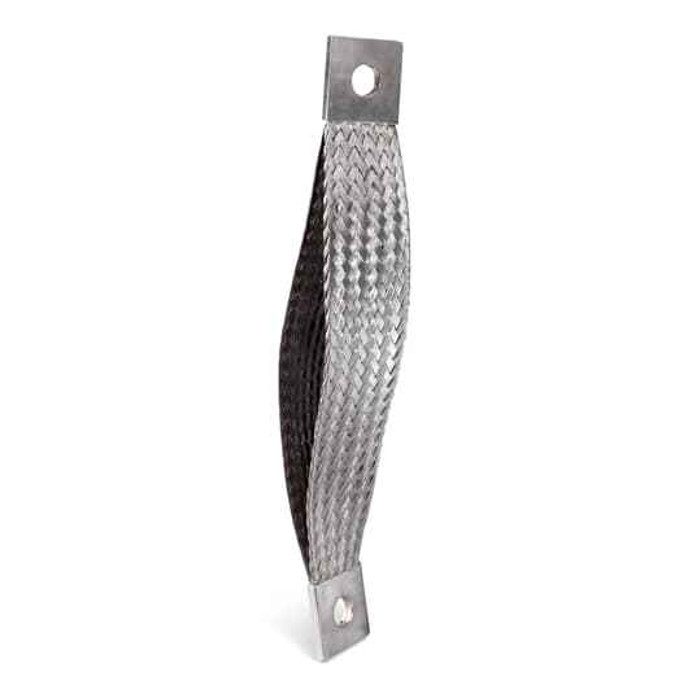

1H JMPR BRD ASY1 350 H9/16x2 L24
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Non-Insulated
- Product Group:
- Grounding & Bonding
- Product Net Depth Length:
- 24 in609.6 mm
- Product Type:
- Extra-Flexible Jumper Braid
- Selling Unit Of Measure:
- each
- Standards:
- NEMA
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
Blackburn FBE1H035A1-24 – Frequently Asked Questions
1) How long is the Blackburn FBE1H035A1-24 jumper braid?
The FBE1H035A1-24 is a 24 inch braid (609.6 mm). That length is what lets it span across an expansion joint, a hinged panel door, or a piece of vibrating equipment without putting strain on the terminations. If your span needs less than 24 inches, plan the routing with a gentle loop rather than cutting the assembly down, since the terminals are factory attached.
2) Is the Blackburn FBE1H035A1-24 bonding braid insulated?
No. It is a bare, non-insulated braid. That is normal for a bonding jumper, but it means you need to keep the run clear of live parts and sharp edges, and avoid routing it where it can be pinched against an energized busbar or a grounded surface it isn't meant to touch.
3) Why use a flexible braid instead of a solid or stranded bonding conductor?
A braid like the Blackburn FBE1H035A1-24 is an extra-flexible jumper braid, built for places where the two bonded points move relative to each other: equipment on vibration isolators, hinged enclosure doors, bus duct expansion fittings, transformer cases, generator skids. Solid or standard stranded copper work-hardens and eventually cracks at the termination under repeated flex. For a fixed, non-moving bond run, a normal grounding conductor and lug is the simpler choice.
4) Does the Blackburn FBE1H035A1-24 come as a complete assembly or do I have to add terminals?
It ships as a finished jumper braid assembly with the ends already formed, sold each. You are buying one ready-to-install jumper, not bulk braid by the foot, so there is no crimping or terminal kit to order alongside it. All you supply is the bolting hardware at each end.
5) What part number do I order for a 24 inch Blackburn flexible bonding jumper?
Blackburn FBE1H035A1-24. The trailing -24 is the 24 inch overall length, so the same family carries other lengths under different suffixes. Quote the full catalog number when ordering so the length and end configuration come through correctly.
6) Does this Blackburn bonding braid meet NEMA requirements for a grounding device?
The FBE1H035A1-24 is built to NEMA standards and is catalogued as a grounding device or assembly. For a specification package or a facility submittal, that is the standard reference carried on the part.
7) Is the Blackburn FBE1H035A1-24 made in the USA?
Yes, country of origin is the United States. That matters if you are procuring for a federal, military, or other domestic-preference project where the grounding and bonding materials have to be documented.
