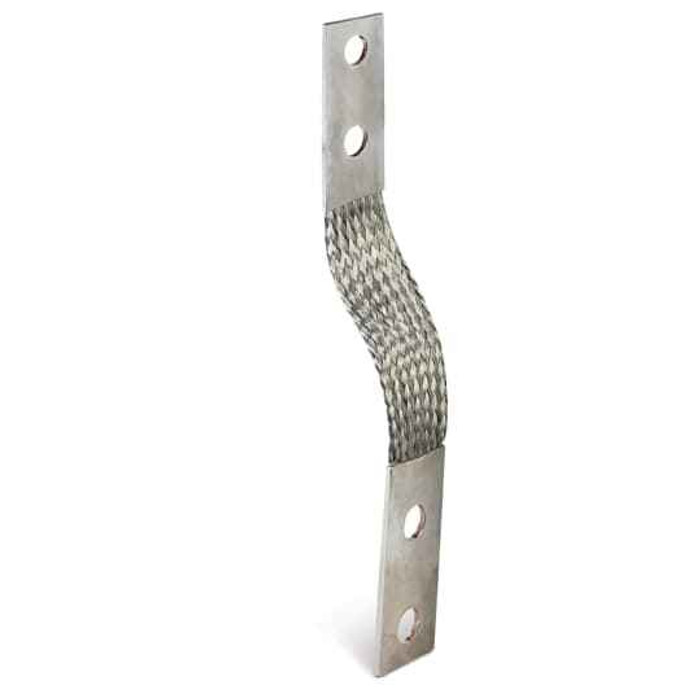

2-HOLE EX FLEX JUMP 2 BRD LEN 24IN
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Non-Insulated
- Product Group:
- Grounding & Bonding
- Product Net Depth Length:
- 24 in609.6 mm
- Product Type:
- Extra-Flexible Jumper Braid
- Selling Unit Of Measure:
- each
- Standards:
- NEMA
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
Blackburn FBE2H070A1-24 – Frequently Asked Questions
1) What is the Blackburn FBE2H070A1-24 braided jumper used for?
It's an extra-flexible braided bonding jumper, used to carry ground continuity across a joint that moves or flexes, things like equipment doors, hinged enclosure panels, transformer or generator connections, and expansion joints in raceway. The braid construction lets the connection flex without work-hardening a solid conductor. It's a grounding and bonding device, sold each.
2) Does this Blackburn flex jumper have one-hole or two-hole terminals?
Two-hole terminals on both ends, which is what the 2H in FBE2H070A1-24 refers to. Two-hole lugs resist rotation under vibration and are what most equipment bonding pads and NEMA two-hole pad drillings are set up for. If your ground pad is drilled for a single bolt, a two-hole terminal won't land correctly and you want a one-hole version instead.
3) Do I need hardware to install the Blackburn FBE2H070A1-24 bonding jumper?
The braid comes as the jumper itself, ordered each. Bolts, nuts, flat and lock washers, and any antioxidant compound for aluminum pads are separate items you add to the order. Size the hardware to the terminal hole diameter and the drilling on your equipment ground pad before you go to the field.
4) Is the Blackburn FBE2H070A1-24 braid insulated?
No. It's a bare, non-insulated copper braid. That's normal for bonding jumpers inside enclosures and on equipment frames, but it means you need to keep clearance from energized parts and live busbar along the whole run, not just at the terminals. If the braid could contact a live surface as it flexes, sleeve it or reroute it.
5) What size conductor is the FBE2H070A1-24 jumper equivalent to?
It's the 2 AWG braid in Blackburn's extra-flexible bonding jumper line, 24 inches long. Match the braid size to the bonding jumper size your equipment grounding conductor or supply conductors call for, and confirm the terminal bolt hole size and spacing against the ground pad you're landing on.
6) Does the Blackburn FBE2H070A1-24 meet NEMA standards, and is it made in the USA?
It's built to NEMA standards and made in the United States, which matters if you're on a Buy American or domestic-preference job and need country of origin on the submittal. The manufacturer part number to put on the spec is FBE2H070A1-24.
