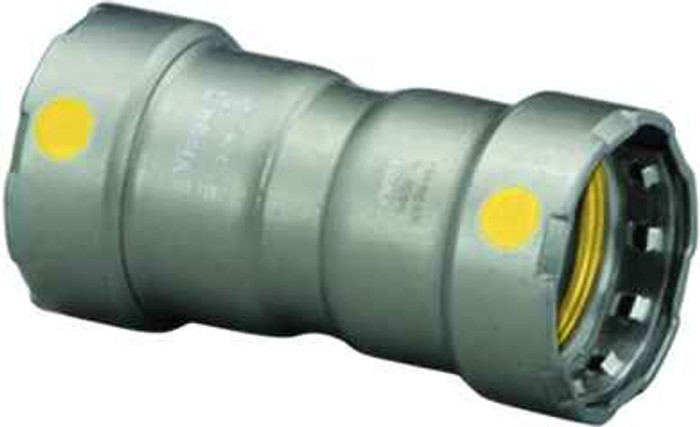

22009 Viega MegaPressG coupling With stop Smart Connect technology Carbon steel, 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- Carbon Steel
- Product Dimension:
- 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Couplings
- Product Type:
- Tee
- Product Length:
- 2.945"
- Product Height:
- 1.492"
- Product Weight:
- 0.353 lbs
- Product Width:
- 1.492"
- Product Material:
- Carbon steel
Viega 22009 – Frequently Asked Questions
1) Is the Viega 22009 MegaPressG coupling a stop coupling or a slip coupling?
It is a coupling with stop. The internal stop seats each pipe end at a fixed insertion depth, which is what you want for a normal in-line joint. If you need to drop a coupling over an existing fixed run of pipe and slide it into position, a stop coupling will not work, you need a coupling without stop (slip type) for that repair.
2) What material is the Viega 22009 coupling, and what piping is it meant for?
Carbon steel, which pairs it with black iron and carbon steel pipe rather than copper. Carbon steel press fittings are not for potable water service, they are used on gas and similar carbon steel systems.
3) What is Smart Connect on the Viega MegaPressG 22009?
Smart Connect is a deliberate feature in the sealing element that lets an unpressed connection leak when the system is tested, so an installer finds the joint they missed during pressure test instead of after the walls close up. It is built into the 22009 coupling.
4) Do I need a sealing element or anything else with the Viega MegaPressG 22009 coupling, or is it ready to press?
The coupling ships as a complete press fitting with its sealing element in place. What you supply is the press tool and the correct 3/4 inch MegaPress jaw, plus properly cut and deburred pipe. The fitting weighs 0.353 lbs, so hanger and support spacing is driven by the pipe, not the joint.
5) Who makes the Viega 22009 and where is it manufactured?
Viega, made in Germany. For spec submittals and procurement records the part number is simply 22009.
