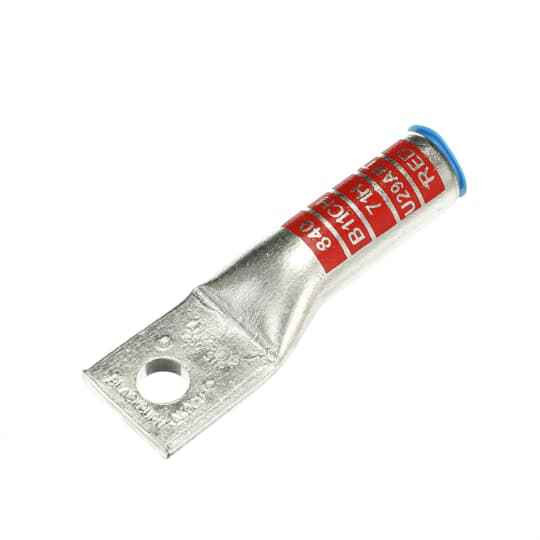

Blackburn ATL250-12 250 AL TP COMP LUG 1HL 1/2IN RED

Blackburn 250 kcmil Aluminum Compression Lug One-Hole 1/2 Inch Stud Red Wire Termination

(No reviews yet) Write a Review

Model: ATL250-12
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$136.56
$37.03
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Blackburn 250 kcmil Aluminum Compression Lug One-Hole 1/2 Inch Stud Red Wire Termination

Professional aluminum wire termination for reliable electrical connections

The Blackburn 250 kcmil aluminum compression lug delivers professional-grade wire termination performance with one-hole design and 1/2 inch stud compatibility. This red aluminum lug provides secure connections for 250 kcmil cable applications, featuring compression-type construction for reliable electrical contact and long-term durability in professional electrical installations.

Professional Features & Benefits

  • 250 kcmil Cable Capacity: Accommodates large conductor sizes for high-current applications and power distribution systems.
  • Aluminum Construction: Lightweight yet durable material provides excellent conductivity while reducing installation weight.
  • Compression Design: Ensures secure mechanical and electrical connection through proper compression tooling and installation techniques.
  • One-Hole Configuration: Simplifies mounting and connection with single bolt attachment point for efficient installation.
  • 1/2 Inch Stud Size: Standard stud diameter provides compatibility with common electrical hardware and connection points.
  • UL Listed: UL E9809 certification ensures compliance with safety standards and professional installation requirements.
  • Red Color Coding: Visual identification aids in phase identification and system organization during installation and maintenance.

Technical Specifications

  • Cable Size: 250 kcmil
  • Color: Red
  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Material: Aluminum
  • Product Group: Wire Termination
  • Product Subgroup: Lugs
  • Product Type: Aluminum One-Hole Lug
  • Selling Unit Of Measure: each
  • Standards: UL E9809
  • Stud Size: 1/2 in
  • Sub Brand Label: Blackburn
  • Type2: Cable or wire lug

Professional Applications

  • Power Distribution Panels and Switchgear
  • Industrial Control Systems
  • Commercial Electrical Installations
  • Utility and Substation Applications
  • Motor Control Centers
  • Large Conductor Terminations
  • High-Current Circuit Connections

Why Choose Blackburn Quality?

Blackburn aluminum compression lugs provide reliable wire termination solutions backed by UL E9809 listing and professional-grade aluminum construction. The precision-engineered design ensures consistent performance in demanding electrical applications, delivering the durability and reliability that electrical professionals trust for critical connections.

Manufacturer Resources

Product Specs

Cable Size:
250 kcmil
Country Of Origin:
Mexico (MX)
Product Group:
Wire Termination
Product Type:
Aluminum One-Hole Lug
Selling Unit Of Measure:
each
Standards:
UL E9809
Stud Size:
1/2 in
Sub Brand Label:
Blackburn
Type2:
Cable or wire lug
Department:
Electrical
Product Subgroup:
Lugs
Product Color:
Red
Product Material:
Aluminum

Blackburn ATL250-12 – Frequently Asked Questions

1) Can I use the Blackburn ATL250-12 lug on copper conductors, or aluminum only?
The ATL250-12 is an aluminum-bodied compression lug sized for 250 kcmil cable. Aluminum compression connectors are only suitable for copper when the manufacturer marks them AL9CU dual-rated; this one is catalogued as an aluminum lug for aluminum conductor, so for a 250 kcmil copper run you want a copper compression lug instead. If you are terminating aluminum conductor, this is the right family, and you should still use a listed oxide-inhibiting compound on the strands before crimping.
2) Is the ATL250-12 a compression lug or a mechanical set-screw lug?
Compression. It has to be crimped with the proper die and hydraulic or battery tool, not tightened with a hex key. If you do not have a compression tool on the truck, a mechanical (set-screw) lug for 250 kcmil is the practical choice instead. The tradeoff is that a compression termination is a permanent, factory-repeatable connection with no torque to re-check, which is why spec jobs and utility work call for it.
3) Is the Blackburn 250 kcmil aluminum lug UL listed for panel and switchgear work?
Yes, it carries UL listing under file E9809, which is what an inspector or a spec writer will want to see on a 250 kcmil termination in power distribution panels, switchgear, motor control centers and substation work.
4) What does the red color on this Blackburn lug mean?
Red here is the die color code, the identifier for the crimp die/index required for this connector barrel. Match the red die group on your compression tool to the lug. It also gives crews a quick visual check that the right size lug went on the right cable during inspection.
5) Do I get one lug or a pack when I order the Blackburn ATL250-12?
Sold each, so a three-phase plus neutral termination needs four pieces ordered. Worth counting both ends of the run plus a spare or two, since a mis-crimped compression lug cannot be reused.
6) What is the exact part number to order for the Blackburn 250 kcmil one-hole 1/2 inch lug?
Blackburn ATL250-12. The number reads directly: ATL for the aluminum terminal lug series, 250 for the 250 kcmil conductor, and 12 for the 1/2 inch stud hole. Country of origin is Mexico.
