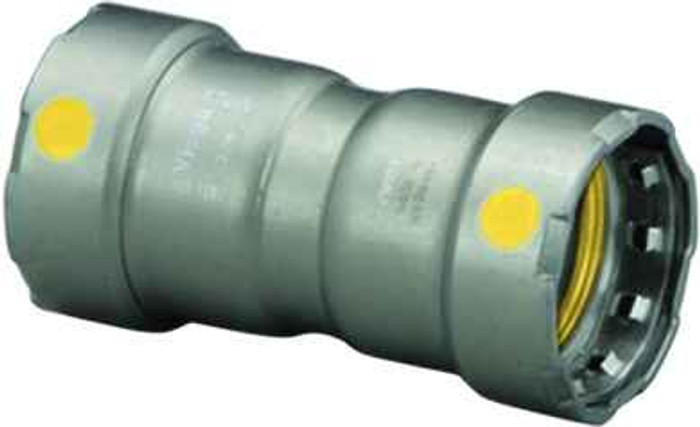

25011 Viega MegaPressG coupling With stop Smart Connect technology Carbon steel, 1'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- Carbon Steel
- Product Dimension:
- 1'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Couplings
- Product Type:
- Tee
- Product Length:
- 3.264"
- Product Height:
- 1.78"
- Product Weight:
- 0.514 lbs
- Product Width:
- 1.78"
- Product Material:
- Carbon steel
Viega 25011 – Frequently Asked Questions
1) What size pipe does the Viega MegaPressG 25011 coupling fit?
The MegaPressG 25011 is a 1 inch by 1 inch press coupling, so both ends press onto 1 inch carbon steel pipe. Press connections on both ends means no threading and no welding at the joint.
2) Does the Viega 25011 coupling have a stop, and why does that matter on a repair?
It is the with-stop version, meaning each end bottoms out at a fixed insertion depth. That sets the pipe position for you, but it also means you cannot slide it along an existing run. For a repair where the pipe is already fixed in place and will not move, you want a coupling without a stop instead.
3) Can I use the MegaPressG 25011 on gas lines?
MegaPressG is Viega's gas press system for carbon steel pipe, which is what the G in the name designates. It is built for gas service rather than the plain MegaPress water/hydronic line, so do not mix the two systems on one job.
4) What is Smart Connect on the Viega 25011 and what does it do during install?
Smart Connect is Viega's feature that makes an unpressed connection leak intentionally during pressure testing, so an installer can find any joint that was missed before the system is put in service. On a run with dozens of 1 inch press joints that is how you catch the one you skipped.
5) How much room do I need around the Viega 25011 coupling to get the press tool in?
The coupling itself is 3.264 inches long and 1.78 inches across in both height and width. Add clearance beyond that for the press jaw to wrap the fitting, which is the real constraint in tight joist bays or against a wall.
6) Is the Viega 25011 coupling steel or stainless, and will it work on black iron pipe?
Carbon steel, which is the same base material as black iron pipe, so it is the matching fitting for a carbon steel gas run. If your piping is stainless or copper, this is the wrong fitting family.
7) What part number and weight should I put on the Viega MegaPressG 1 inch coupling for my order?
Order it as Viega part 25011. It is made in Germany and each coupling weighs 0.514 lbs, useful when you are pricing freight on a full box for a larger job.
