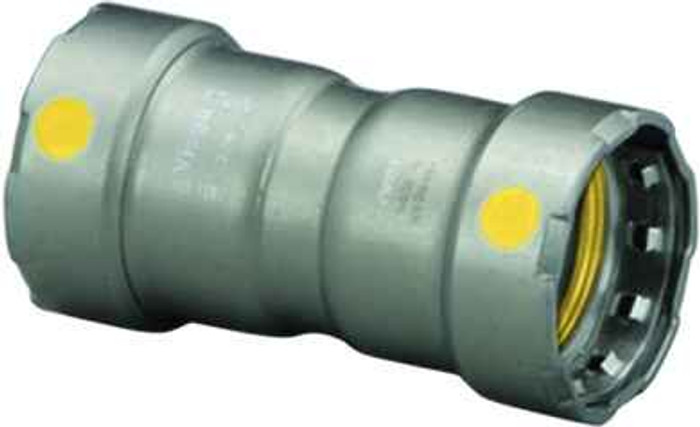

25026 Viega MegaPressG coupling With stop Smart Connect technology Carbon steel, 2'' x 2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- Carbon Steel
- Product Dimension:
- 2'' x 2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Couplings
- Product Type:
- Coupling
- Product Length:
- 4.709"
- Product Height:
- 2.894"
- Product Weight:
- 1.433 lbs
- Product Width:
- 2.894"
- Product Material:
- Carbon steel
Viega 25026 – Frequently Asked Questions
1) What size pipe does the Viega 25026 MegaPressG coupling with stop press onto?
The Viega MegaPressG 25026 is a 2 inch by 2 inch press fitting, so both ends press onto 2 inch pipe. Connections are press on both sides (P1 x P2), meaning no threading or welding on either end.
2) What does the "with stop" mean on a MegaPressG coupling, and when would I want one without a stop?
A coupling with stop has an internal shoulder that stops each pipe end at a fixed insertion depth, so both sides seat the same amount. That is what you want for a normal joint between two new pipe ends. A stopless (slip) coupling is the one to reach for when you are repairing a fixed run and need to slide the coupling along the pipe to bridge a cut, since there is no shoulder in the way. The Viega 25026 is the version with the stop.
3) Is the Viega 25026 coupling carbon steel or stainless, and what piping system is it meant for?
Carbon steel. MegaPressG fittings are made for black iron / carbon steel pipe systems, so the fitting material matches the pipe it presses onto. Do not substitute it on copper or stainless runs.
4) What are the physical dimensions and weight of the Viega 2 inch MegaPressG coupling for layout in a tight chase?
Overall length is 4.709 inches, with height and width both at 2.894 inches, and it weighs 1.433 lbs. Those outside dimensions are what you need to clear when you are pressing in a chase or against joists, since the press tool jaw needs room around the full body.
5) What is Smart Connect on a Viega MegaPressG fitting and why does it matter on inspection?
Smart Connect is a deliberate feature in the sealing element that lets an unpressed connection leak visibly during pressure testing. On a large job with dozens of 2 inch joints, that is how you find the one you skipped before the wall closes, rather than after. It is built into the 25026 coupling.
6) Can I use the Viega 25026 MegaPressG coupling to join two pipes of different sizes?
No. It is a 2 inch by 2 inch coupling, so both ends take 2 inch pipe. Going from 2 inch down to a smaller size needs a reducing coupling or a reducer fitting instead.
7) What is the exact part number and country of origin for the Viega 2 inch MegaPressG coupling with stop?
Order it as Viega part 25026. It is made in Germany, which is the detail that usually matters for a submittal or a buy-American review on an institutional job.
