25106 Viega MegaPressG adapter Smart Connect technology Carbon steel, 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P x MPT
- Material Type:
- Carbon Steel
- Product Dimension:
- 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 2.657"
- Product Height:
- 1.496"
- Product Weight:
- 0.313 lbs
- Product Width:
- 1.496"
- Product Material:
- Carbon steel
Viega 25106 – Frequently Asked Questions
1) What connections does the Viega MegaPressG 25106 adapter have?

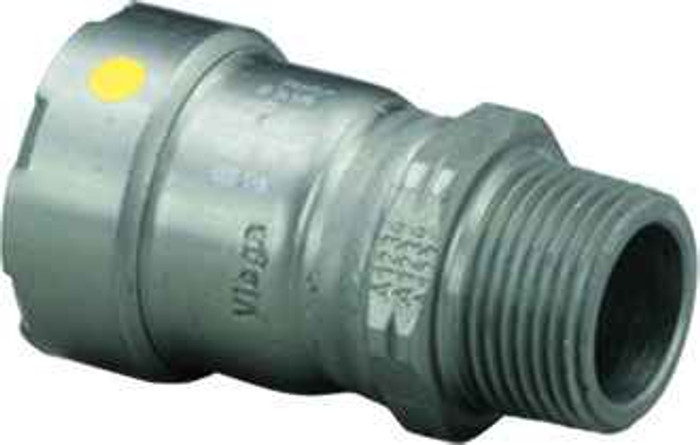

The Viega MegaPressG 25106 is a 3/4 inch press by 3/4 inch male pipe thread adapter (P x MPT). One end presses onto 3/4 inch carbon steel pipe with a press tool, the other threads into a 3/4 inch female NPT port, so it is the transition fitting between pressed pipe and threaded equipment like valves, regulators or appliance connectors.
2) Is the Viega 25106 MegaPressG fitting for gas or water lines?
MegaPressG is Viega's gas-rated press system, and the 25106 is the carbon steel 3/4 inch press to 3/4 inch MPT adapter in that line. It is built for black iron gas piping work rather than the MegaPress (non-G) water and hydronic line, so if you are pressing a potable or hydronic steel line, order the MegaPress version instead.
3) Can I use a MegaPressG adapter on copper or stainless pipe?
No. The 25106 is carbon steel and is made to press onto carbon steel (black iron) pipe. For copper tube or stainless lines you need the press system matched to that material, not this fitting.
4) What is Smart Connect on the Viega 25106 and why does it matter on a gas job?
Smart Connect is the feature Viega builds into the sealing element so an unpressed connection leaks visibly during pressure testing. On a gas line that is the point: it lets you find a missed joint on test instead of after the wall closes. It is included on the 25106 MegaPressG adapter.
5) How much space do I need to fit the Viega 25106 adapter in a tight chase?
The 25106 measures 2.657 inches in length and 1.496 inches in both height and width, and weighs 0.313 lbs. Allow clearance beyond that for the jaws of your press tool, which need room to close square on the fitting.
How fast can I get the Viega 25106 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Viega 25106 come with a warranty?
Absolutely. The Viega 25106 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Viega 25106?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
