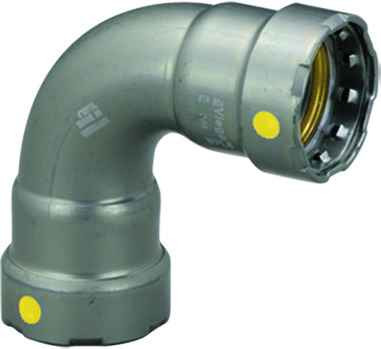

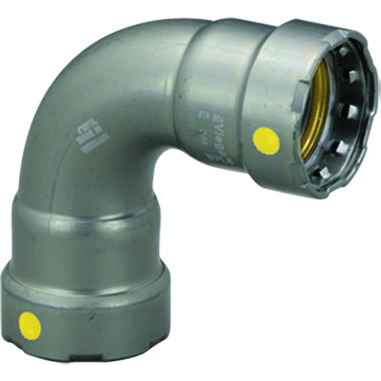

25211 Viega MegaPressG 90° elbow Smart Connect technology Carbon steel, 1'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Country Of Origin:
- Made in USA
- Material Type:
- Carbon Steel
- Product Dimension:
- 1'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 3.961"
- Product Height:
- 1.78"
- Product Weight:
- 0.811 lbs
- Product Width:
- 3.961"
Viega 25211 – Frequently Asked Questions
1) Is the Viega 25211 MegaPressG elbow approved for gas lines, or is it a water fitting?
MegaPressG is Viega's gas line press system, and the 25211 is the 1 inch by 1 inch 90 degree elbow in carbon steel. The G suffix is what separates it from standard MegaPress fittings used on water and hydronic lines, so use the G series on fuel gas piping and keep the non-G fittings on water service.
2) What does Smart Connect technology on the 25211 MegaPressG elbow actually do for me on a gas job?
Smart Connect is the feature in the sealing element that lets an unpressed joint leak intentionally during pressure testing, so an inspector or installer finds the missed connection at test rather than after the wall is closed. On a gas rough-in with a lot of fittings, that is the practical reason to specify MegaPressG over a system without it.
3) How much space do I need to fit the Viega 25211 90 degree elbow in a tight chase?
The 1 inch MegaPressG elbow measures 3.961 inches in length and width with a height of 1.78 inches, and it weighs 0.811 lbs. Those face dimensions are the outside envelope of the fitting itself. Remember to allow additional clearance around it for the press jaw to close, which is typically more than the fitting body needs on its own.
4) Do I need a special press tool and jaw for a 1 inch MegaPressG fitting?
Yes. The 25211 is a press fitting on both ends, so it requires a press tool with the correct 1 inch MegaPress jaw or ring. There is no thread and no solder path on this elbow, so hand tools will not make the joint. The fitting ships as the elbow only, without jaws, adapters, or pipe.
5) Is carbon steel the right material for my gas elbow, or should I be using copper or stainless?
Carbon steel is the correct material family here because MegaPressG matches the black iron pipe that fuel gas systems are normally run in. Copper press fittings belong on copper tube and would not join steel pipe. Note carbon steel is for interior, dry applications; a wet or buried location calls for a different material entirely.
6) Is the Viega 25211 elbow made in the USA for a project with domestic sourcing requirements?
Yes, the 25211 MegaPressG elbow is listed as Made in USA, which is the answer institutional and government buyers usually need for a domestic preference spec.
