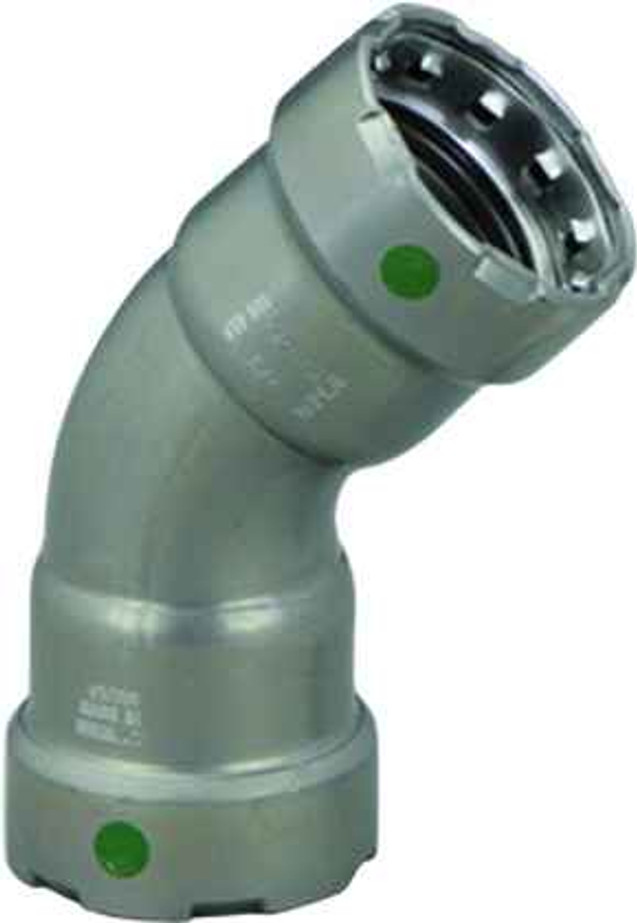

25230 Viega MegaPress 45° elbow Smart Connect technology Carbon steel, 1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- Carbon Steel
- Product Dimension:
- 1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 3.295"
- Product Height:
- 1.264"
- Product Weight:
- 0.304 lbs
- Product Width:
- 2.252"
- Product Material:
- Carbon steel
Viega 25230 – Frequently Asked Questions
1) What pipe size does the Viega MegaPress 25230 45-degree elbow fit?
The MegaPress 25230 is a 1/2 inch by 1/2 inch elbow, so both ends press onto 1/2 inch pipe. It is a press fitting on both ends (P1 x P2 connection), not threaded or grooved, so the pipe ends need to be cut square, deburred and marked to depth before the jaw is set.
2) Is the Viega 25230 elbow made for black iron / carbon steel pipe rather than copper?
Carbon steel is the fitting body material, and MegaPress is Viega's press system for steel pipe. Use a copper or stainless press fitting instead if you are running copper or stainless tube; this one is for carbon steel pipe runs.
3) What does Smart Connect on the Viega 25230 actually do on the job?
Smart Connect is Viega's unpressed-connection feature: an unpressed joint leaks noticeably during pressure test so the installer can find the fitting that was missed before the system is closed in. On a run with several 45s, that is the difference between finding a skipped press at test and finding it in a finished ceiling.
4) When should I use a 45-degree MegaPress elbow instead of two 90s?
A 45 lets you offset around an obstruction or come off a riser at an angle without the two extra direction changes a pair of 90s costs you in friction loss and space. The 25230 measures 3.295 inches long, 2.252 inches wide and 1.264 inches high, so it takes up very little room in a tight joist bay or wall cavity.
