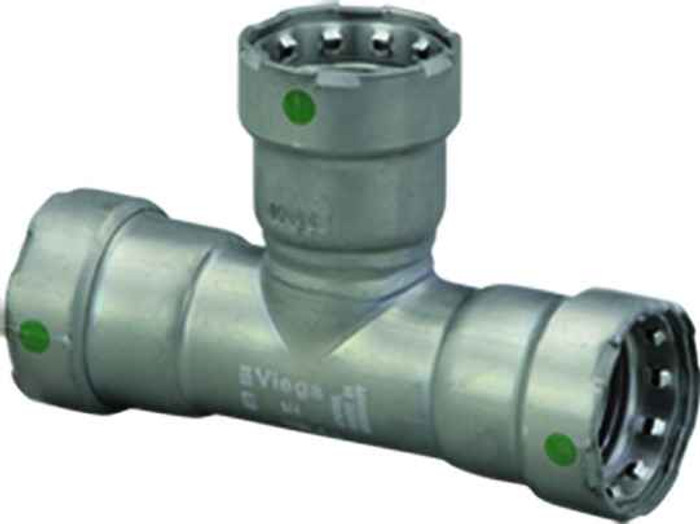

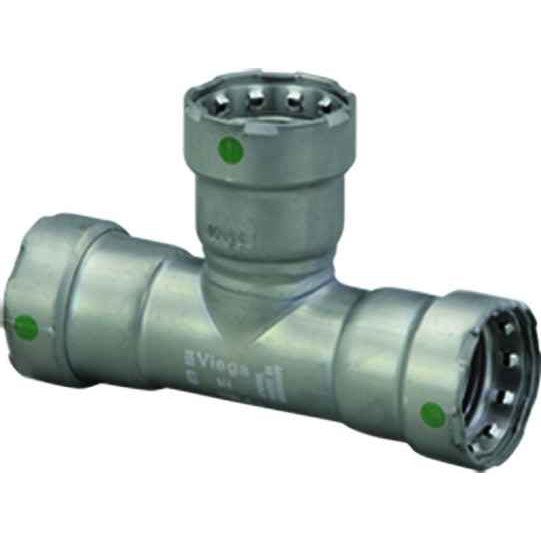

25305 Viega MegaPress tee Smart Connect technology Carbon steel, 3/4'' x 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Carbon Steel
- Product Dimension:
- 3/4'' x 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 4.528"
- Product Height:
- 1.492"
- Product Weight:
- 0.679 lbs
- Product Width:
- 2.992"
- Product Material:
- Carbon steel
Viega 25305 – Frequently Asked Questions
1) Is the Viega MegaPress 25305 tee 3/4 inch on all three outlets?
All three ends of the 25305 MegaPress tee are 3/4 inch, so it's a straight equal tee with no reduction on the branch. Overall the fitting measures 4.528 inches long by 2.992 inches wide by 1.492 inches high, which is the space you need to allow between hangers or in a tight joist bay.
2) Can I use a MegaPress carbon steel tee on a wet system, or is it gas only?
This is the standard MegaPress carbon steel tee, not the gas version. MegaPress and MegaPressG are distinct lines with different sealing elements, so if you're branching a fuel gas line, order the G fitting rather than the 25305. For threaded-pipe systems on the water or hydronic side, the carbon steel MegaPress body is the right family.
3) Can I press this tee into an existing threaded black iron system without cutting the whole run out?
Yes, that's the point of the carbon steel press line. You cut in at the branch location and press onto the existing 3/4 inch pipe ends, no threading and no hot work, so an occupied building stays occupied. All three outlets are press, so if you need to land on a threaded nipple at one leg you'll need a separate press-by-thread adapter alongside this tee.
4) What does Smart Connect mean on a MegaPress fitting, and does it change how I install it?
Smart Connect is the feature that lets an unpressed joint leak intentionally during pressure testing, so you find the connection you missed before the walls close up. It doesn't change the install sequence: cut, deburr, mark insertion depth, seat the pipe fully, press. The 25305 has three press ends, so there are three joints to verify on that test.
5) Where is the Viega 25305 MegaPress tee manufactured?
Made in Germany. Useful if you're filing country-of-origin documentation on a government or institutional job.
