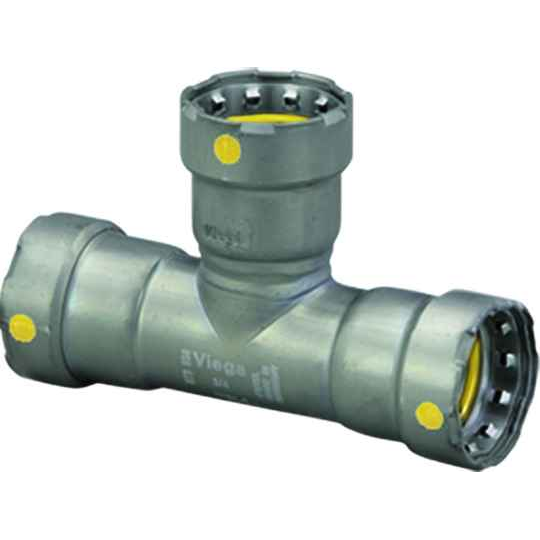

Viega 25306 MegaPressG tee Smart Connect technology Carbon steel, 3/4'' x 3/4'' x 3/4''

MegaPressG is Viega's gas-rated press system, and the 25306 is a carbon steel 3/4 inch tee built for that system. It joins black iron pipe by pressing rather than threading or welding, so a gas fitter can branch a run without cutting threads or pulling a torch permit. Carbon steel is the body material, which is what pairs it with black iron pipe rather than copper or PEX.

Press on all three ends. The connection type is P x P x P, meaning every port is a press socket, so there are no threads anywhere on the 25306. You slide it over prepped, deburred pipe and press each joint with the matching jaw. Nothing on this fitting will mate to a threaded nipple without a separate press by thread adapter.

The 25306 tee measures 4.528 inches long, 2.992 inches wide, and 1.492 inches high. That is the fitting body only, so add clearance for the press jaw to close around each socket. In cramped chases the jaw swing, not the tee, is usually what decides whether the joint can be made in place.

Smart Connect is the feature that makes an unpressed 25306 joint leak during pressure test rather than hide. An unpressed connection stays detectable under test so the crew finds the missed press before the wall closes up, instead of after. On a long branch run with a dozen joints, that is the difference between a punch item and a callback.

Carbon steel is the body material on the 25306, not stainless or copper, so it is a black iron gas piping fitting and should be treated like the pipe it joins. Standard practice for exposed carbon steel gas pipe applies here: it wants a coating or paint where it sees weather or condensation. For a corrosive or potable water branch, carbon steel is the wrong material and a stainless or copper press tee is the right call.

Viega part number 25306. That is the MPN a distributor orders against for the 3/4 x 3/4 x 3/4 MegaPressG carbon steel tee, and the fitting is made in Germany. Adjacent MegaPressG tees in the same family carry different numbers by size, so spec the 25306 specifically if all three ports need to be 3/4 inch.

Threaded black iron needs the pipe cut, threaded, doped and wrenched at every joint, and in an occupied building that means a threading machine on site. The 25306 presses instead: cut, deburr, mark depth, press. Where the work is overhead, in a finished space, or where a hot work permit is a problem, press wins on labor. Threaded still makes sense where you already own the threader and the run is short, or where the fitting has to be broken apart for service later, since a pressed joint is permanent.
