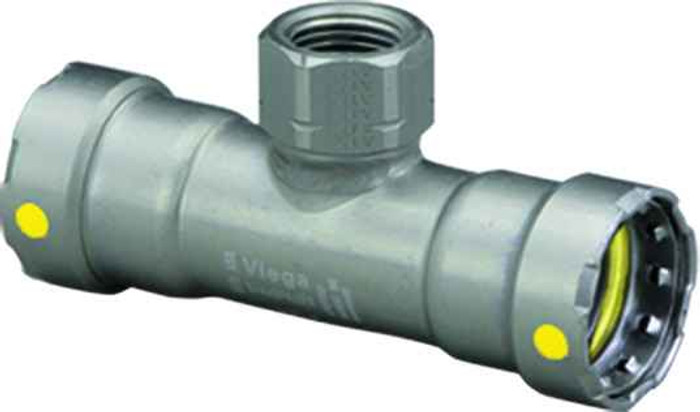

25406 Viega MegaPressG tee Smart Connect technology Carbon steel, 3/4'' x 3/4'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- Carbon Steel
- Product Dimension:
- 3/4'' x 3/4'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 4.528"
- Product Height:
- 1.496"
- Product Weight:
- 0.613 lbs
- Product Width:
- 2.299"
- Product Material:
- Carbon steel
Viega 25406 – Frequently Asked Questions
1) What are the three outlet sizes on the Viega 25406 MegaPressG tee, and which one is threaded?
The 25406 is a 3/4 in x 3/4 in x 1/2 in tee. The two 3/4 in ends are press connections (P1 x P2) and the 1/2 in branch is female pipe thread, so you press the run onto 3/4 in steel pipe and thread a 1/2 in male-threaded nipple, valve, or appliance connector into the branch.
2) Can I press the Viega MegaPressG 25406 onto copper or PEX?
No. It is a carbon steel press fitting, made to press onto black iron or carbon steel pipe of the matching size. Copper and PEX take entirely different fitting systems, so use a copper press or PEX fitting for those runs.
3) Is the Viega 25406 a gas fitting or a water fitting?
MegaPressG is the gas-rated line of Viega's carbon steel press system, identified by the G suffix, and the 25406 is a MegaPressG tee. Plain MegaPress carbon steel fittings are the non-gas version. Match the line to the service the drawing calls for and confirm the application with your local code official.
4) Do I need a special jaw to press the 3/4 inch ends of a MegaPressG fitting?
Yes, the press ends require the MegaPress jaw or ring sized for 3/4 in steel pipe, used in a press tool. This is not a threaded or grooved fitting on the run side, so no threading or welding is involved on those two ends, but the 1/2 in branch is FPT and gets made up with thread sealant or tape.
5) What does Smart Connect on the Viega 25406 tee actually do for me on the job?
Smart Connect is the feature that lets an unpressed connection leak during pressure testing so it shows itself before the wall closes up. On a tee like this with two press ends, that matters because it is easy to press one side and walk past the other; the test flags the miss instead of a callback later.
6) How much space do I need to fit the Viega 25406 tee in a joist bay or tight chase?
Plan around 4.528 in overall length, 2.299 in width, and 1.496 in height for the body. Get a tape on the bay before you cut the pipe, since a press tool and jaw need swing room around the fitting on top of the fitting's own footprint.
7) How heavy is a Viega 25406 tee when I am pricing out a bulk order or a hanger layout?
Each tee runs 0.613 lbs, so a case quantity stays light for handling, and the fitting adds little enough load that hanger spacing is driven by the steel pipe itself rather than by the tee.
