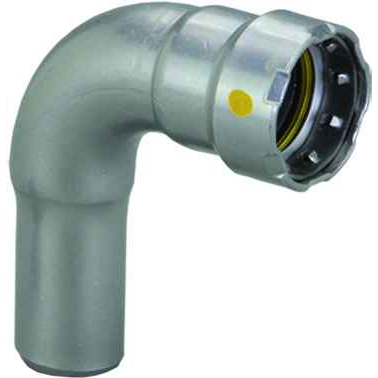

26071 Viega MegaPressG 90° street elbow Smart Connect technology Carbon steel, 1-1/2'' x 1-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FTG
- Country Of Origin:
- United States
- Material Type:
- Carbon Steel
- Product Dimension:
- 1-1/2'' x 1-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Street Elbows
- Product Type:
- Elbow
- Product Length:
- 5.433"
- Product Height:
- 2.437"
- Product Weight:
- 1.79 lbs
- Product Width:
- 5.118"
- Product Material:
- Carbon steel
Viega 26071 – Frequently Asked Questions
1) Will the 26071 press onto 1-1/2 inch black iron pipe already in the building?
The press end is sized for 1-1/2 inch carbon steel pipe, which is the same nominal IPS size as black iron. The fitting is carbon steel itself, so you are keeping a like-material joint rather than mixing in copper or brass on a steel run.
2) How much room do I need to fit the 1-1/2 inch MegaPressG street elbow in a tight chase?
Plan around 5.433 inches of length, 5.118 inches of width and 2.437 inches of height for the fitting itself. Remember the press tool jaw needs clearance around the socket as well, so the fitting envelope is the minimum, not the working space.
3) When should I use a street elbow instead of a regular 90 degree press elbow?
Use the street version when the turn has to come directly off another fitting. A standard 90 has two press sockets and needs a length of pipe into each one; the 26071 has one press socket and one fitting end that inserts straight into the next fitting's socket. Fewer joints, shorter assembly, less chance of running out of room in a chase.
