2H JMPRBRD ASY13 2K H9/16 F1.5L30.5
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Non-Insulated
- Product Group:
- Grounding & Bonding
- Product Net Depth Length:
- 30.5 in774.7 mm
- Product Type:
- Extra-Flexible Jumper Braid
- Selling Unit Of Measure:
- each
- Standards:
- NEMA
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
Blackburn FBE2H200A1-30-5 – Frequently Asked Questions

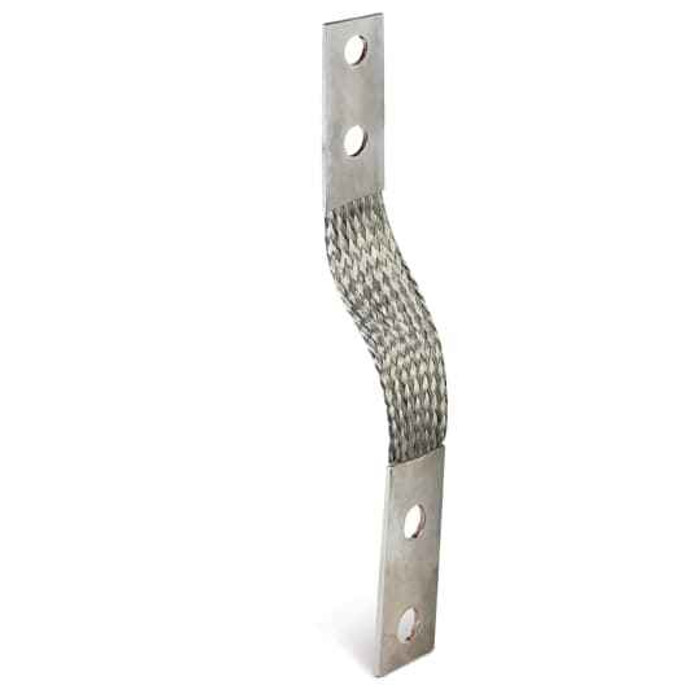

1) How long is the Blackburn FBE2H200A1-30-5 jumper braid?
The FBE2H200A1-30-5 braid assembly is 30.5 inches (774.7 mm) long. That length is the reason for the -30-5 suffix on the part number, so if you need a different span you are looking at a different dash number in the same FBE family. Measure the bonded span plus enough slack for movement before you settle on a length, since a flexible bonding jumper is there to take vibration and expansion without stressing the terminations.
2) Is the Blackburn FBE2H200A1-30-5 bonding jumper insulated?
No. It is a non-insulated, extra-flexible braid. Bare braid is normal for grounding and bonding jumpers, but it means you have to treat the whole length as live-to-ground metal: keep it clear of energized parts, and don't rely on it for any separation or abrasion protection where it crosses an edge or a moving joint.
3) What is a flexible braided bonding jumper used for instead of solid ground wire?
A braided jumper like the Blackburn FBE2H200A1-30-5 is used where the two bonded points move relative to each other: across expansion joints in busway or raceway, on transformer and motor mounts, on hinged enclosure doors, on equipment that vibrates. Solid or stranded conductor work-hardens and eventually cracks at the termination in those spots. The flat braid flexes across its whole length instead. For a fixed, non-moving bond, ordinary grounding conductor and a mechanical or compression lug is the simpler choice.
4) Is the Blackburn FBE2H200A1-30-5 sold individually or in a pack?
Sold each. One FBE2H200A1-30-5 braid assembly per unit, so order one per bonded connection. If you are bonding a run of expansion joints or a bank of enclosures, count the joints and order to match rather than assuming a multi-pack.
