You may also like

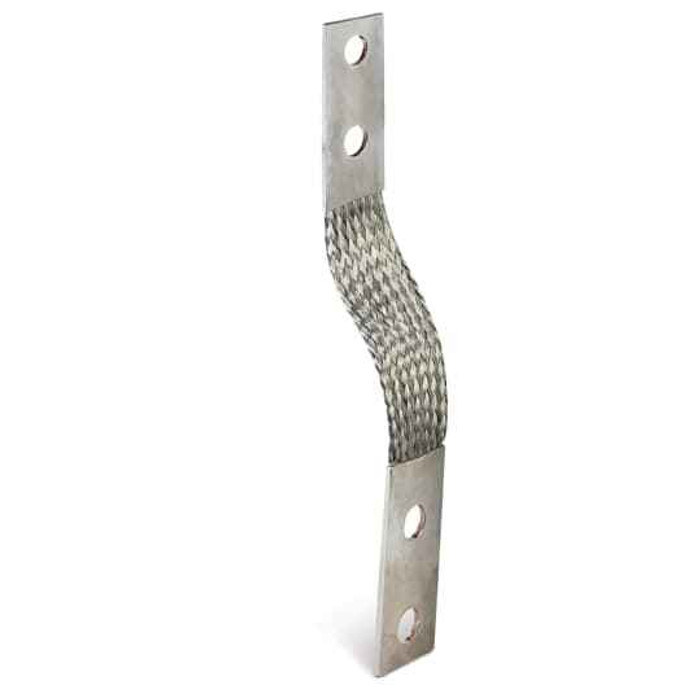

2H JMPR BRD ASY13 2K H9/16 F1.5 L12
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Non-Insulated
- Product Group:
- Grounding & Bonding
- Product Net Depth Length:
- 12 in304.8 mm
- Product Type:
- Extra-Flexible Jumper Braid
- Selling Unit Of Measure:
- each
- Standards:
- NEMA
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
Blackburn FBE2H200A1-12 – Frequently Asked Questions
1) How long is the Blackburn FBE2H200A1-12 jumper braid?
The FBE2H200A1-12 braid is 12 inches long (304.8 mm). That length is what you have to work with between the two termination points, so measure the gap you need to bond across, plus slack for movement, before ordering.
2) Is the Blackburn FBE2H200A1-12 bonding jumper insulated?
No. It is a non-insulated extra-flexible braid, so the conductor is exposed along its whole length. Keep it clear of energized parts and route it where an uninsulated bond is acceptable, which is normal practice for equipment grounding and bonding across hinges, gutters, and expansion joints.
3) Why use a flexible braid jumper instead of a solid or stranded ground wire?
A braided bonding jumper flexes repeatedly without work-hardening, which is why it gets used where the two bonded parts move relative to each other, enclosure doors, hinged panels, raceway expansion fittings, vibrating equipment frames. A solid or even stranded ground conductor in that spot eventually fatigues and breaks. The FBE2H200A1-12 is an extra-flexible braid assembly built for that duty.
4) Does the Blackburn FBE2H200A1-12 meet NEMA requirements?
NEMA is the standard referenced for this braid assembly. No UL file or other listing is carried on the record, so if your specification calls out a specific listing mark, verify against Blackburn's published data for the part before you submit it.
5) What is the correct part number to order for the 12 inch Blackburn 2-hole jumper braid?
Order Blackburn FBE2H200A1-12. That is the manufacturer part number for the 12 inch length, and it is the number to quote for a distributor cross-reference. The braid is furnished as a complete assembly rather than cut cable you terminate yourself.
6) Is the Blackburn FBE2H200A1-12 sold individually or in packs?
It ships each, one braid assembly per unit, so order the exact count of bond points you need. For MRO stocking, that means you can keep a small quantity on the shelf rather than buying a carton.
