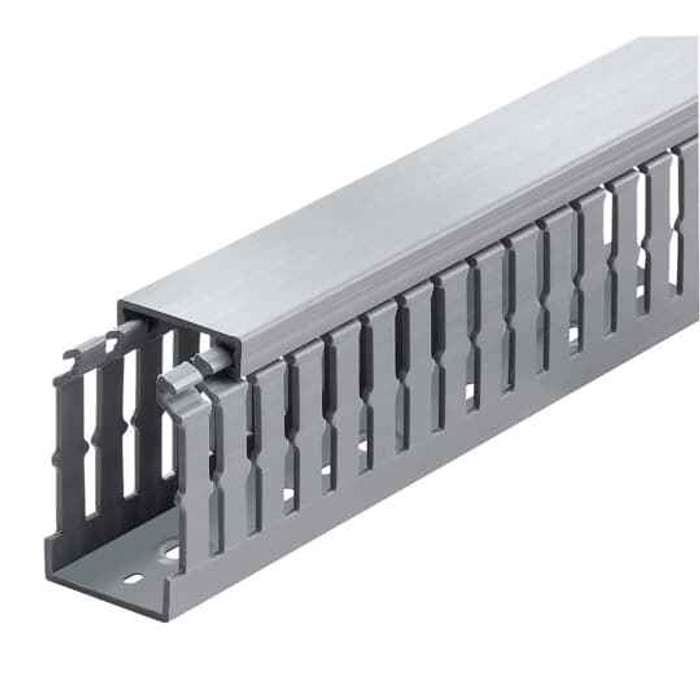

2X3 NARROW SLOT GRAY DUCT
Manufacturer Resources
Product Specs
- Brand Label:
- Ty-Duct
- Country Of Origin:
- United States (US)
- Effective Date:
- 20170118
- Entrance Type:
- Narrow
- Idea Granular Category Code Igcc :
- 5580 >> Wiring duct
- Product Color:
- Grey
- Product Material:
- PVC
- Product Name:
- PLASTIC WIRING DUCT
- Product Net Depth Length:
- 6 ft1.83 m
- Product Net Width:
- 2 in50.8 mm
- Product Type:
- Narrow Slot Duct
- Selling Unit Of Measure:
- foot
- Type Of Adhesive Backing:
- No
- Weee Category:
- Product Not in WEEE Scope
- Department:
- Electrical
Ty-Duct TYD2X3NPG6 – Frequently Asked Questions
1) What length do the Ty-Duct TYD2X3NPG6 wiring duct sticks come in, and how much do you get in a pack?
Each stick of the TYD2X3NPG6 narrow slot wiring duct runs 6 ft (1.83 m), and it is sold as a 100 pack of sticks. Selling unit of measure is the foot, so expect pricing and ordering to be figured on footage rather than per piece.
2) Does the Ty-Duct 2x3 narrow slot duct have adhesive backing, or do I have to screw it to the panel?
No adhesive backing on the TYD2X3NPG6. It mounts mechanically, so plan on screws or rivets through the duct base into your backpan, subpanel, or wall. Nothing for mounting is included, so pull the fasteners you need onto the same order.
3) What is the 2 inch dimension on the TYD2X3NPG6 narrow slot duct?
The net width on this Ty-Duct part is 2 in (50.8 mm). That is the figure to lay out against when you are spacing duct runs across a backpan or checking clearance to a DIN rail or terminal block row.
4) Is narrow slot duct the right choice, or should I use wide slot wiring duct?
Narrow slot duct, which is what the entrance type on the TYD2X3NPG6 is, has tighter finger spacing, so individual conductors stay captured in the duct instead of bowing out between fingers. That suits small gauge control, instrumentation, and signal wiring in a panel. If you are routing heavier power conductors or large bundles that need to break out in groups, wide slot duct is the easier fit because the openings are bigger and bundles drop in and out without fighting the fingers.
5) Is the Ty-Duct narrow slot wiring duct made in the USA? I have a domestic sourcing requirement.
Country of origin on the TYD2X3NPG6 is the United States. For a government, education, or institutional job carrying a domestic preference clause, that is the figure your procurement file needs.
6) Does a cover come with the TYD2X3NPG6, or is that ordered separately?
What ships on this part number is the duct base itself, a 6 ft narrow slot PVC body in grey. Covers are a separate line item on wiring duct, so if you need the runs closed up after wire dressing, add matching 2 in wide duct cover to the order along with your mounting fasteners.
7) Will the Ty-Duct gray wiring duct match the other duct already in my control panels?
It is grey PVC, the standard panel duct color, so it will read the same as existing grey duct runs in a typical industrial enclosure. The shade reference is the only color offered on this part number, so if your facility standard is white or black duct, this is not the one to order for a visual match.
8) What is the Ty-Duct TYD2X3NPG6 made of?
PVC. That matters for two reasons on a panel build: it can be cut to length with a duct shear or fine tooth saw on site rather than needing a power saw, and it is non-conductive, so the duct itself does not need bonding the way a metal wireway does.
