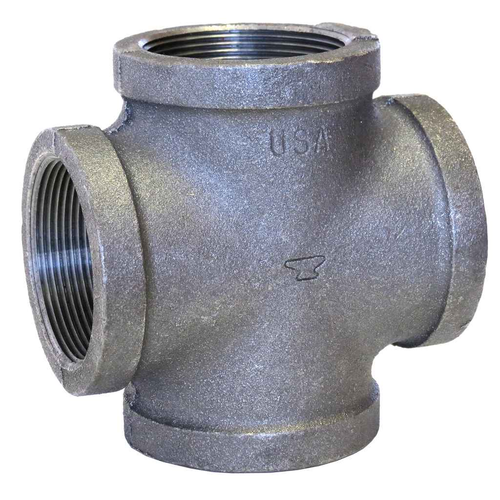

3 BLK MI CROSS
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- End Conn Size 4:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 3
- Size 2:
- 3
- Size 3:
- 3
- Size 4:
- 3
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Crosses
- Product Type:
- Cross
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 7.94 lbs
ASC Engineered Solutions 310071204 – Frequently Asked Questions
1) Are all four openings on the ASC 3 inch black malleable iron cross the same size?
All four outlets are 3 inch, so it's a straight cross with no reducing branches. Every end is female pipe thread (FPT), threaded to ASME B1.20.1 NPT, so it takes standard 3 inch male threaded pipe nipples on all four sides.
2) What material spec does this ASC malleable iron cross meet?
The casting conforms to ASTM A-197, the malleable iron standard, with dimensions and pressure class to ASME B16.3. Those two together are what most mechanical specs cite for threaded malleable fittings, so it will satisfy a drawing calling out either.
3) Can I use this cross instead of two tees back to back?
Yes, and it's the tighter install. A 3 inch cross puts all four branches on a single center, where two tees add a nipple between them and shift one branch off center. Use the cross where you need two opposed outlets on the same plane; use tees when the branches need to be separated along the run.
