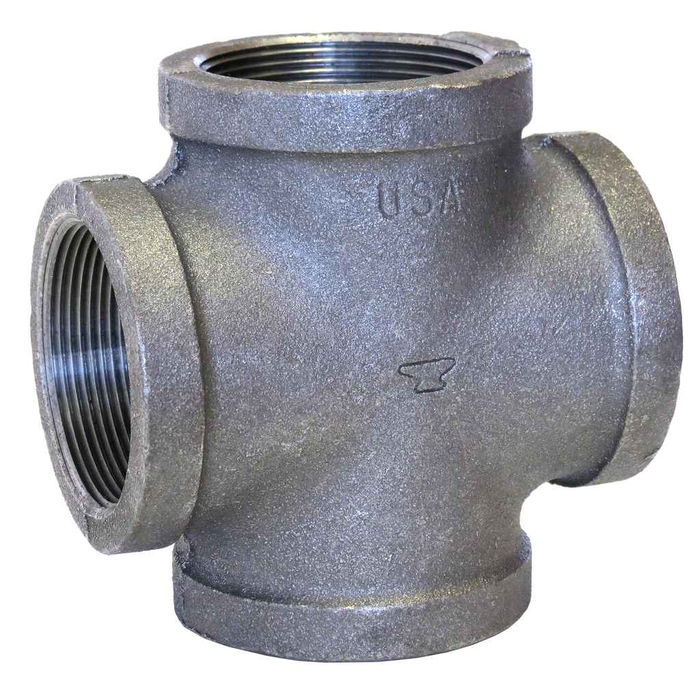

3/8 BLK MI CROSS
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- End Conn Size 4:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.375
- Size 2:
- 0.375
- Size 3:
- 0.375
- Size 4:
- 0.375
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Crosses
- Product Type:
- Cross
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 0.28 lbs
ASC Engineered Solutions 310069604 – Frequently Asked Questions
1) Are all four openings on the ASC 3/8 black malleable iron cross the same size?
Yes, all four outlets are 3/8 inch, so it's a straight (equal) cross, not a reducing one. Every opening is female pipe thread (FPT), so you thread 3/8 inch male NPT pipe nipples or male-end fittings into all four ports.
2) Is this black cross suitable for a fire sprinkler system?
It carries UL/FM approval, which is what an AHJ and a sprinkler contractor look for on fire protection piping. It's standard-weight malleable iron to ASME B16.3 with ASME B1.20.1 threads, the usual build for threaded sprinkler branch work.
3) Black iron or galvanized: which cross do I use for a gas line versus a wet line?
This one is black finish malleable iron. Black is the normal choice for natural gas and LP fuel piping and for closed-loop or dry service. For potable water or anywhere the fitting sees moisture and you want corrosion resistance, use the galvanized equivalent instead. Dimensionally they're the same fitting, B16.3 standard weight, so the swap does not change your layout.
4) How much does a 3/8 inch black malleable cross weigh for takeoff and hanger sizing?
0.28 lbs each. Light enough that a single fitting adds nothing meaningful to a hanger load, but useful if you're pricing freight on a full box for a job.
5) What part number do I order this ASC cross under?
ASC Engineered Solutions manufacturer part number 310069604, the 3/8 inch black malleable iron cross.
