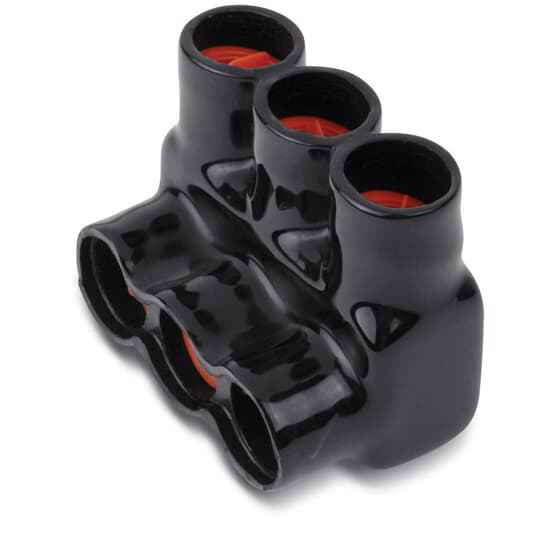

3 PORT SAME SIDE MULTI TAP 250-6
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Group:
- Wire & Cable Management
- Product Type:
- AMT Connector
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Electrical taps
- Voltage Rating:
- 600 V
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Color:
- Black
- Product Material:
- Aluminum
Blackburn AMTS25063 – Frequently Asked Questions
1) What is the Blackburn AMTS25063 multi-tap connector used for?
The AMTS25063 is a 3-port, same-side multi-tap connector for splitting or tapping conductors in a distribution or service application. All three tap ports enter from the same side, so it's the one to use when your branch conductors all come from one direction and you don't want to route wire around the block. It's rated 600 V and sold individually.
2) What conductor range does the Blackburn AMTS25063 take?
The 250-6 in the part number is the conductor range: 250 kcmil down to 6 AWG on each of the three tap ports. Conductors outside that window won't seat properly in the barrel, so size your tap leads within 250 kcmil to 6 AWG before ordering.
3) Is the Blackburn AMTS25063 tap UL listed, and what voltage can I use it at?
It carries UL file E9809 and is rated for 600 V, which covers standard commercial and industrial branch and feeder work up to 600 volts. That rating is the one an inspector or MRO spec will ask for.
4) Can I use this Blackburn tap with both copper and aluminum conductors?
The body of the AMTS25063 is aluminum, which is the standard construction for dual-rated AL9CU mechanical taps of this type. Before terminating aluminum, confirm the conductor marking stamped on the connector body itself matches the metal you're landing, and use the appropriate joint compound where your spec calls for it.
5) Why choose a same-side multi-tap instead of an opposite-side or dual-sided block?
Same-side means all three tap ports face one direction. That keeps your make-up on one side of the block, which matters in a shallow gutter, a crowded pull box, or a panel where you can only get a wrench in from one face. If your branch conductors arrive from both directions, an opposite-side or dual-sided multi-tap is the better layout because it avoids doubling conductors back across the block.
6) What part number do I put on the order for the 3-port same-side 250-6 Blackburn tap?
Order Blackburn AMTS25063. That's the manufacturer part number for the 3-port, same-side, 250 kcmil to 6 AWG multi-tap, and there is one configuration under it, so nothing further needs specifying.
7) How is the Blackburn AMTS25063 sold, and does it come insulated?
It ships as a single connector, sold each, in black aluminum. It's a bare mechanical tap block, so any insulating cover, boot, or tape-and-shrink build-up is a separate item you add to the order.
8) Is the Blackburn AMTS25063 made in the USA for a Buy American job?
Country of origin on the AMTS25063 is the United States, which is what a government, school, or institutional procurement package usually needs documented for domestic-content requirements.
