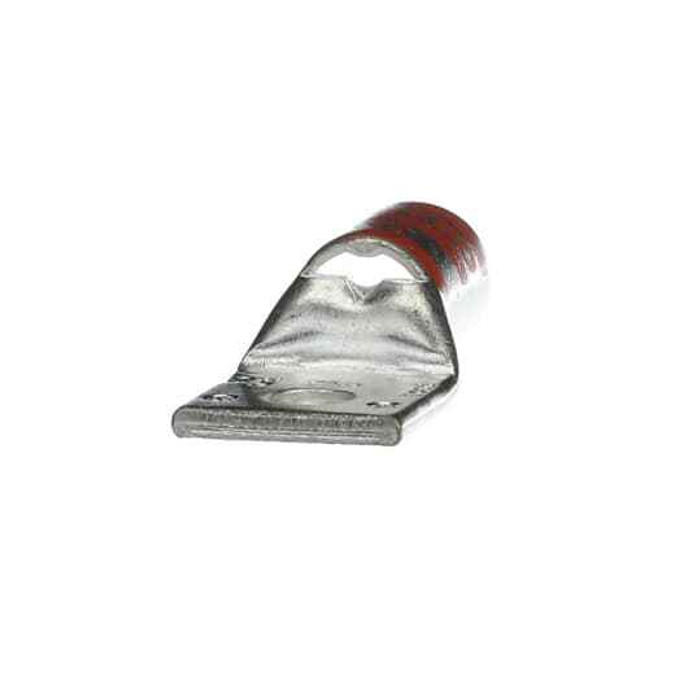

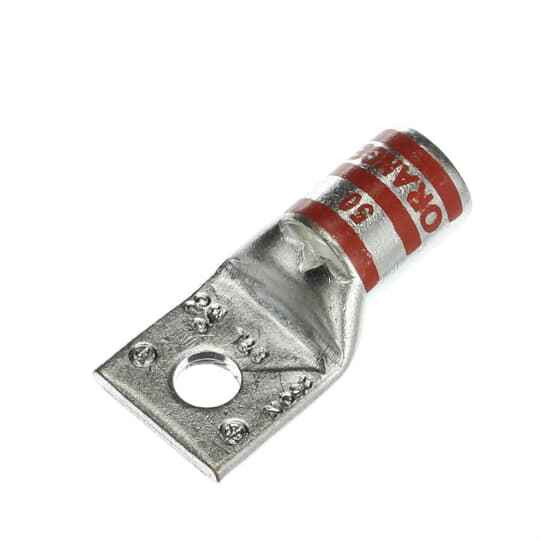

Thomas & Betts 54163-TB 3/0 CU STD. BRL. 1 HOLE 5/16IN BOLT

The 54163-TB is sized for 3/0 AWG copper conductor only. It's a copper compression (crimp) lug, so it is not a set-screw mechanical lug and will not accept a range of conductor sizes - one size, one die. For other conductors you need the matching size in the Color Keyed line.

The 54163-TB carries a 35 kV voltage rating, which covers medium-voltage cable terminations as well as any 600 V application. It is UL listed under file E9809.

The 54163-TB is a one-hole copper compression lug for 3/0 AWG cable with a 5/16 inch stud size. On the Burndy side, the closest family is HYLUG, such as the Burndy YA31L Hylug one-hole copper compression lug, which is built for 350 kcmil cable with a 1/2 inch stud. That means the YA31L is a larger conductor and larger bolt hole than the 54163-TB, so it is the same style of connector but not a drop-in for a 3/0 run landing on a 5/16 inch stud. Match the conductor size and stud diameter before substituting.

The Thomas & Betts 54163-TB is a standard barrel design, a single crimp barrel for 3/0 AWG copper with one 5/16 inch bolt hole. If the application calls for a long barrel - typically for a second crimp or added pull-out resistance - the Burndy HYLUG long barrel tin-plated copper terminal lug is the long barrel counterpart in copper. Confirm the conductor size and stud diameter on the long barrel part you select, since barrel length and hole size are specified separately.

Orange is the color code for the 3/0 AWG die in the Thomas & Betts Color Keyed system. The die index on the crimping tool matches the color on the barrel, so an inspector can confirm from across the vault that the right die was used on the right lug. Match the orange die to this lug.

Standard barrel. A standard barrel takes fewer crimps and takes up less length behind the pad, which is what you want in a tight gutter or termination cabinet. Long barrel lugs, like the Burndy HYLUG tin-plated copper terminal lug, add barrel length for more crimps and higher pullout where the installation spec calls for it. If the drawing specifies long barrel, the 54163-TB is not the substitute.

A hydraulic or battery crimper with the Color Keyed die matching the orange 3/0 index, plus the 5/16 inch bolt, nut and washers for the stud connection, which are not supplied with the lug. No set screw or hex key is involved - this is a compression terminal, not a mechanical one.

Compatibility with a specific switchgear line depends on the manufacturer's approved accessory list, and for Masterclad gear the connector sold for that purpose is the Square D Masterclad Burndy crimp lug switchgear connector accessory. Use the 54163-TB where a general 3/0 copper, 5/16 inch stud termination is called for.

Yes. The 54163-TB is a Color Keyed lug and its orange color identifies the die and conductor combination within that Thomas & Betts system, so an installer crimping it uses the matching Color Keyed die. Burndy HYLUG copper lugs, such as the YA31L, are specified by conductor size and stud size rather than by that color key, so when cross-referencing you match on conductor and bolt hole and then confirm the correct die for whichever system you are crimping with.

It is sold each, so you can buy the exact count a termination needs rather than a full carton. Remember a three-phase plus neutral set is four lugs per end.
