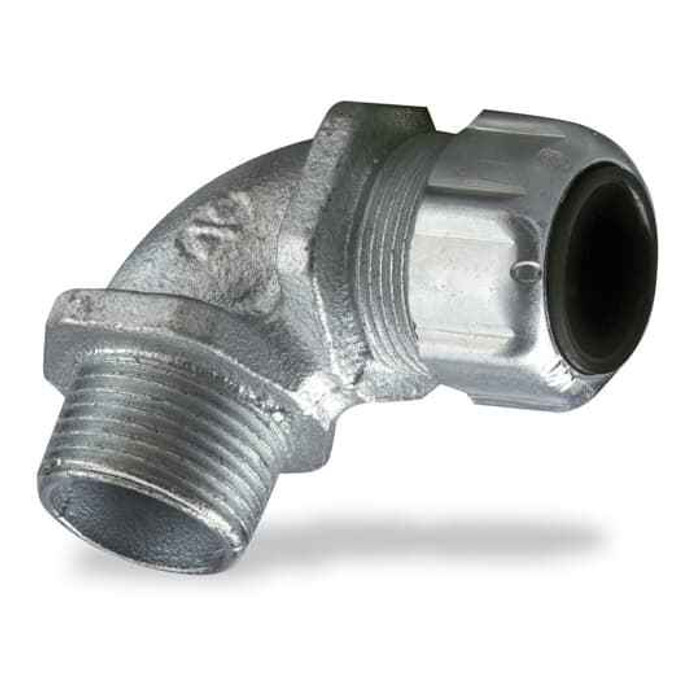

3/4 90 DEG RANGER CORD FITT.31-.56
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Type:
- 90 Degree Cord Connector
- Department:
- Electrical
- Product Color:
- Metallic
- Product Material:
- Malleable Iron
- Product Group:
- Wiring Devices
- Product Subgroup:
- Cord Grips
Thomas & Betts 4971 – Frequently Asked Questions
1) What cord diameter range does the Thomas & Betts 4971 cord connector clamp?
The 4971 Ranger cord fitting takes cord with an outside diameter of .31 to .56 inches. Measure the jacket OD on your SO/SJ cord before ordering; anything under .31 or over .56 will not seal or grip properly in this body.
2) Why use a 90 degree cord connector instead of a straight one?
The 4971 is a 90 degree cord connector, which turns the cord at the enclosure so it drops straight down the wall or runs flat against it instead of standing proud of the box. That matters where there is no clearance behind a machine or panel, and it keeps the cord from taking a sharp bend right at the strain relief. If you have room for the cord to leave the box in line with the hub, a straight fitting is the simpler choice.
3) Is the Thomas & Betts 4971 cord grip metal or plastic?
Malleable iron body, metallic finish. That is the one to use on machine tools, pendant drops and industrial enclosures where a nylon fitting would get knocked off; it also carries the mechanical abuse better than die cast.
4) Will a 4971 cord grip work for a 14/3 SJ power cord on a piece of shop equipment?
Check the jacket OD rather than the wire gauge. The fitting grips .31 to .56 inch cord, which covers most 16/3 through 14/3 portable cord, but jacket diameter varies by cord type and manufacturer. Caliper the cord at the jacket and match it to that window.
5) What part number do I order for the Thomas & Betts 3/4 inch 90 degree Ranger cord fitting?
Order Thomas & Betts 4971. That is the 3/4 inch, 90 degree Ranger cord fitting for .31 to .56 inch cord, and it is sold as a single fitting rather than a kit.
