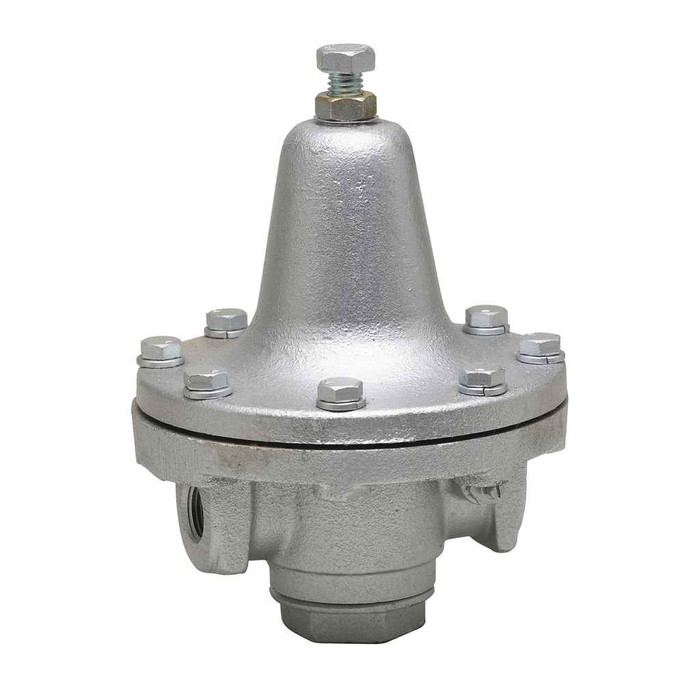

3/4 In Iron Process Steam Pressure Regulator, Reduced Pressure Range 3 To 15 psi
Manufacturer Resources
Product Specs
- Adjustable Reduced Pressure Range:
- 3 to 15
- Application:
- Commercial and Industrial
- Body Material:
- Iron
- Corrosion Resistant Coating:
- No
- Disc Material:
- Stainless Steel
- Inlet Connection Size:
- 3/4 IN
- Inlet Connection Type:
- Female Threaded
- Inlet Thread Type:
- NPT
- Maximum Working Pressure:
- 200
- Maximum Working Pressure Bar:
- 14
- Minimum Temperature:
- 33°F
- Minimum Temperature Celsius:
- 0.5
- Minimum Temperature Fahrenheit:
- 33
- Outlet Connection Size:
- 3/4 IN
- Outlet Connection Type:
- Female Threaded
- Outlet Thread Type:
- NPT
- Series:
- 152A
- Strainer:
- No
- Strainer Material:
- Stainless Steel
- Thermal Expansion Bypass:
- No
- Trim Material:
- Stainless Steel
- Valve Style:
- Standard
- Department:
- Plumbing
- Product Group:
- Plumbing
- Product Subgroup:
- Valves
- Product Type:
- Pressure Regulator
- Gauge:
- No Gauge
Watts 830918 – Frequently Asked Questions
1) What downstream pressure can I set on the Watts 830918 steam regulator?
The reduced (outlet) pressure adjusts anywhere from 3 to 15 psi. That covers typical low pressure steam work such as process equipment, kettles, and heating coils running under 15 psi. If your equipment needs a set point above 15 psi, this spring range will not get you there and you need a higher range version of the 152A.
2) Does the Watts 830918 come with a strainer and a pressure gauge?
No to both. The 830918 ships without an integral strainer and without a gauge. Plan on piping a separate Y strainer ahead of it to keep scale and pipe debris off the stainless seat, and add a gauge in the downstream line if you need to read and dial in the set pressure.
3) Can I use the Watts 152A pressure regulator on a potable water line?
It is not a water pressure reducing valve. The 152A 830918 is an iron bodied process steam regulator with no corrosion resistant coating and no thermal expansion bypass, both of which you want on a domestic water PRV. For potable water service on a 3/4 inch line, use a bronze or lead free water PRV instead.
4) What is the maximum inlet pressure on the Watts 152A regulator?
Maximum working pressure is 200 psi (14 bar), so the iron body will take a supply line well above the 3 to 15 psi it reduces to. Minimum rated temperature is 33 degrees F, which matters only for freeze protection on an idle line, not for steam service.
5) Is this Watts steam regulator suitable for a commercial kitchen or plant process line?
Yes. The 152A is built for commercial and industrial process steam duty, with an iron body and stainless steel trim and disc for steam service. It is a standard style valve, not a specialty or high capacity design, so size it against your steam load at the 3 to 15 psi set point.
