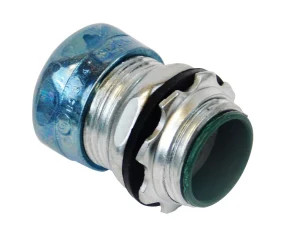

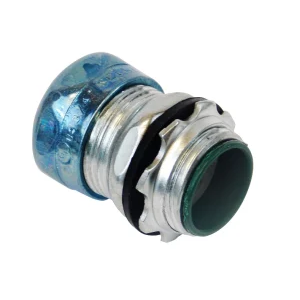

Atkore Allied Tube & Conduit CCR50-ICKON 1/2" Raintight Compression Connector With Insulated Throat
Model: ATC-CCR50-ICKON
1/2" Raintight Compression Connector With Insulated Throat
Features
Blue nut eases identification
Zinc plated to avoid corrosion
Raintight for outdoor and wet location usage
Allied Tube & Conduit
$52.59
$2.84
3/4" Raintight Compression Connector With Insulated Throat
Features
- Blue nut eases identification
- Zinc plated to avoid corrosion
- Raintight for outdoor and wet location usage
Manufacturer Resources
Product Specs
- Department:
- Electrical
Allied Tube & Conduit CCR75-ICKON – Frequently Asked Questions
1) Can I use this compression connector outdoors or in a wet location?
Yes. The CCR75-ICKON is a raintight compression fitting intended for outdoor and wet location use, and the body is zinc plated to resist corrosion. Set-screw EMT connectors are not raintight and should stay inside dry locations.
2) Does this 3/4 inch EMT connector have an insulated throat for pulling THHN?
It does. The CCR75-ICKON has an insulated throat, so conductors pass over a smooth insulating collar instead of a bare metal edge at the box entry. That is what inspectors look for when the fitting terminates conductors in a box.
3) What is the part number to order for a 3/4 inch raintight EMT connector from Allied Tube & Conduit?
Order Allied Tube & Conduit part CCR75-ICKON. The CCR prefix is the raintight compression connector line, 75 is the 3/4 inch trade size, and ICKON denotes the insulated throat version with the blue nut.
4) Compression versus set screw EMT connector, which one do I need?
Use a compression fitting like the CCR75-ICKON anywhere the conduit can get wet, outdoors, on a rooftop, or in a damp location, because it seals on the tube as the nut is tightened. Set screw connectors are cheaper and faster but are dry-location only. For a 3/4 inch EMT run that leaves the building, this is the fitting.
5) Why does this Allied connector have a blue nut?
The blue compression nut is a quick visual cue on the job that the fitting is the insulated-throat raintight version rather than a plain steel connector. Handy when a crew is sorting loose fittings out of a bucket or an inspector is checking a wet-location run from a distance.
