Metallics JRM72SLT 3/8-16 x 1-...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.60
$0.60

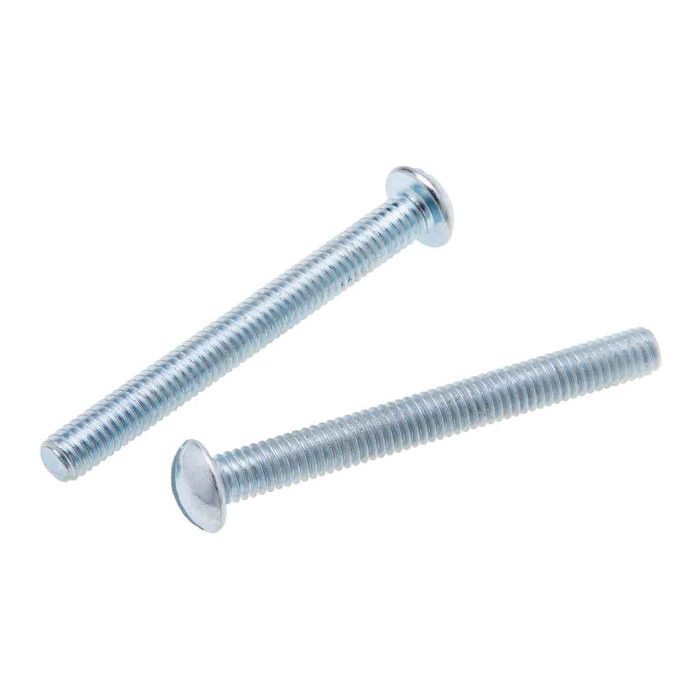

Metallics JRM72SLT 3/8-16 x 1-1/4 in. Round Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JRM72SLT 3/8-16 x 1-1/4 in. Round Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JRM72SLT
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.60
$0.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3/8-16 x 1-1/4 in. Round Head Slotted Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • In 1985, Metallics was the first fastener company in America to offer a full line of Combo’s! | Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Steel Zinc Material
    • Round head with slotted Drive
    • 3/8-16 Diameter, 1-1/4" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.237 - 0.256 in.
Fastener Head Type:
Round
Fastener Head Width:
0.67 - 0.708 in.
Fastener Length:
1/1/04
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Round_Head_Machine_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
4.47 lbs
Product Width:
3.5 in
Recess Penetration Gaging Depth:
0.182 - 0.208
Slot Depth:
0.117 - 0.155
Slot Width:
0.081 - 0.094
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
16
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
JRM
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JRM72SLT – Frequently Asked Questions

1) What thread does the Metallics JRM72SLT machine screw use, and will it run into a 3/8-16 tapped hole or nut?
The JRM72SLT is a 3/8-16 machine screw, 16 threads per inch, so it threads into any 3/8-16 tapped hole, nut, or strut channel nut. Usable length is 1-1/4 inches under the head, which is what limits how much material you can clamp. Note 3/8-16 is a UNC coarse thread; it will not engage a 3/8-24 fine-thread nut.
2) Are these zinc plated steel screws OK outdoors or in a wet location?
The JRM72SLT is carbon steel with a zinc finish, which is a dry-location and indoor plating. It handles handling and incidental moisture, but in wet, washdown, coastal, or buried applications zinc plated steel corrodes. For those, go to a stainless 18-8 machine screw in the same 3/8-16 x 1-1/4 size.
3) How strong are the Metallics JRM72SLT screws - can I use them on a structural or load-bearing connection?
Tensile strength is 60,000 psi minimum with a hardness of Rockwell B70 to B100, made from AISI 1006-1022 low carbon steel. That is standard commercial machine screw material, fine for mounting boxes, panels, covers, enclosures, and equipment. It is not a graded structural fastener - if a drawing calls out an SAE Grade 5 or Grade 8 bolt, or an ASTM structural bolt, this screw does not substitute.
4) Is a machine screw like this the right fastener for mounting into sheet metal or drywall?
No. A machine screw such as the 3/8-16 x 1-1/4 JRM72SLT has a straight, blunt-ended machine thread and needs a mating tapped hole or a nut - it will not cut its own thread. For sheet metal use a self-tapping or sheet metal screw; for hollow wall use a toggle or anchor. Machine screws are for pre-tapped equipment holes, channel nuts, and bolted-through assemblies.
5) Do the JRM72SLT screws come loose or in a package, and what is the smallest quantity I can order?
They ship in a jar, with an order minimum of 100 count. So the buying unit is a 100-piece jar rather than individual screws - plan on that if you only need a handful for one box. The packaged jar weighs 4.47 lbs.
6) Do these Metallics machine screws meet Buy American or ARRA requirements on a federal job?
The JRM72SLT carries ARRA Compliant and Buy American Compliant flags in Metallics' product data, with country of origin listed as China. On a federally funded project where the specification demands domestic melt and manufacture, verify which standard your contract actually invokes, because the origin and the compliance flag point in different directions depending on the clause.
7) I need a different length or quantity in the Metallics JRM round head slotted line - is that possible?
Metallics states other sizes and quantities in the JRM round head slotted series are available by request beyond the 3/8-16 x 1-1/4 inch JRM72SLT. If you are standardizing a maintenance stock across several diameters and lengths, ask for the sizes you need rather than substituting a nearby length.
