Metallics JRM116SLT 3/8-16 x 2...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

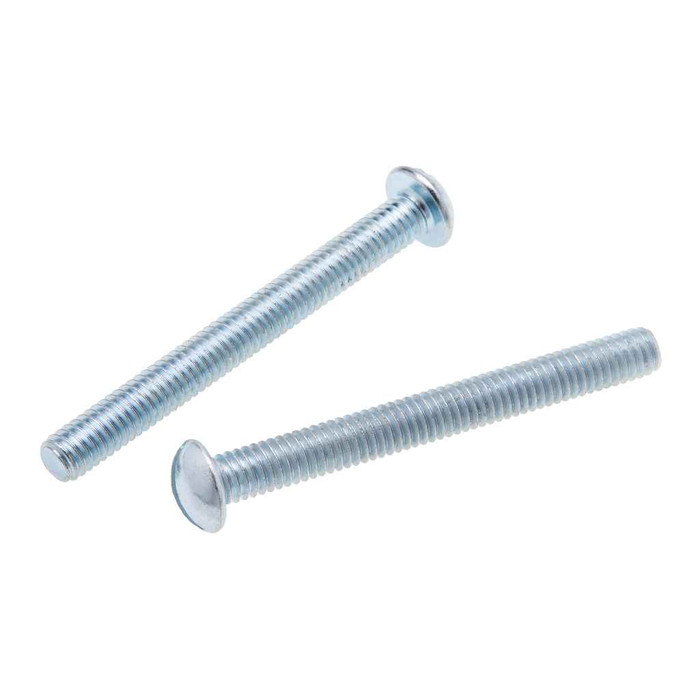

Metallics JRM116SLT 3/8-16 x 2 in. Round Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JRM116SLT 3/8-16 x 2 in. Round Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JRM116SLT
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3/8-16 x 2 in. Round Head Slotted Machine Screws - Steel Zinc - 100qty

  • Features

    • Steel Zinc Material
    • Round head with slotted Drive
    • 3/8-16 Diameter, 2" Length

  • Additional Notes

    • In 1985, Metallics was the first fastener company in America to offer a full line of Combo’s! | Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.237 - 0.256 in.
Fastener Head Type:
Round
Fastener Head Width:
0.67 - 0.708 in.
Fastener Length:
2
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Round_Head_Machine_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
6.54 lbs
Product Width:
4.5 in
Recess Penetration Gaging Depth:
0.182 - 0.208
Slot Depth:
0.117 - 0.155
Slot Width:
0.081 - 0.094
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
16
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
JRM
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JRM116SLT – Frequently Asked Questions

1) Will a Metallics JRM116SLT machine screw thread into a 3/8-16 tapped hole or standard 3/8-16 nut?
Yes. The JRM116SLT is a 3/8-16 machine screw, 16 threads per inch, which is the standard 3/8 inch UNC coarse thread. It mates with any 3/8-16 tapped hole, nut, or strut channel nut. Usable grip is limited by the 2 inch screw length.
2) Can I use zinc plated steel machine screws like these outdoors?
The JRM116SLT is zinc plated carbon steel, which is a mild indoor and protected-location finish. It handles damp interiors and covered exteriors, but in direct weather, coastal air, or wash-down areas the plating sacrifices and the steel underneath rusts. For those openings specify a stainless 3/8-16 round head machine screw instead.
3) Are these Metallics screws strong enough for structural or high-load use?
Rated 60,000 psi minimum tensile with a hardness of Rockwell B70 to B100, made from AISI 1006 to 1022 low carbon steel. That is a standard low carbon machine screw, comparable to unhardened commercial grade, fine for fixtures, panels, boxes, covers and general MRO work. It is not a Grade 5 or Grade 8 cap screw, so do not substitute it where a drawing calls for a high strength bolt.
4) How are the Metallics JRM116SLT screws packaged and what is the minimum order?
They ship in a jar, with a minimum of 100 count. The packed jar weighs 6.54 lbs.
5) Do these 3/8-16 machine screws come with nuts or washers?
No. The JRM116SLT is a bare machine screw only, supplied as a 100 count jar. If you are not threading into a tapped hole you need to order 3/8-16 hex nuts and any flat or lock washers separately.
6) Do the Metallics JRM116SLT screws meet Buy American or ARRA requirements on a federal job?
Metallics lists the JRM116SLT as compliant for both Buy American and ARRA. Country of origin is China, so on a project with a domestic-content clause stricter than the standard compliance flag, verify against your specific contract language.
7) Is a round head slotted machine screw the right choice, or should I use a flat head?
Round head sits on top of the surface and spreads load over a 0.67 to 0.708 inch bearing face, so it works where you have an untapered through hole and no need for a flush surface. Use a flat head instead when the hole is countersunk or the screw has to finish flush, and a pan or truss head when you need a lower profile than the 0.237 to 0.256 inch this head stands up.
