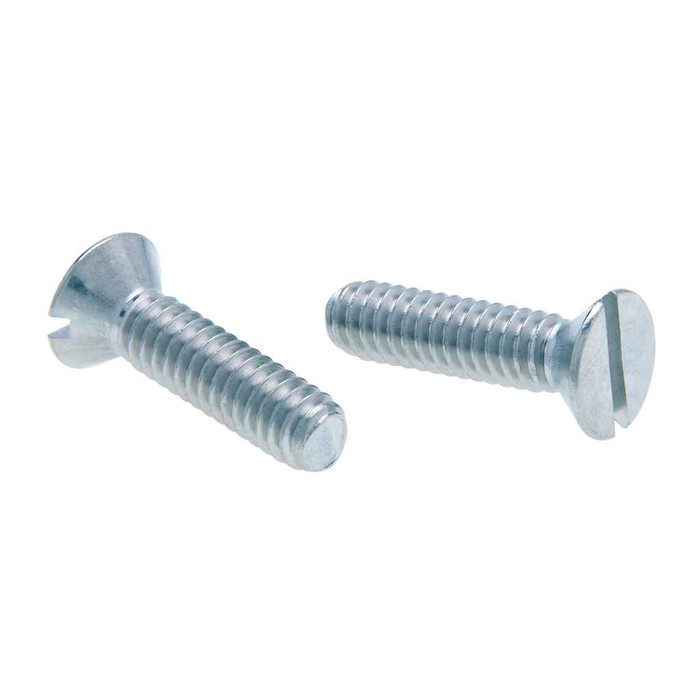

Metallics FM136 3/8-16 x 5 in. Flat Head Slotted Machine Screws - Steel Zinc - 25qty

Metallics FM136 3/8-16 x 5 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: FM136
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.94
$48.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3/8-16 x 5 in. Flat Head Slotted Machine Screws - Steel Zinc - 25qty

  • Features

    • Zinc yellow screws are popular in electronics applications.
    • Flat head with slotted Drive
    • Steel Zinc Material
    • 3/8-16 Diameter, 5" Length

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
25 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.2 - 0.23 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.67 - 0.717 in.
Fastener Length:
5
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Box
Product Group:
Fasteners
Product Height:
3.25 in
Product Length:
7.25 in
Product Weight:
13.64 lbs
Product Width:
6.75 in
Slot Depth:
0.07 - 0.106
Slot Width:
0.081 - 0.094
Sub Division:
Electrical-E H2
Tensile Strength:
4650 lb minimum
Thread Per Inch:
16
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics FM136 – Frequently Asked Questions

1) Will a 3/8-16 x 5 in. flat head machine screw thread into a standard 3/8-16 tapped hole or nut?
Yes. The Metallics FM136 is cut to a 3/8-16 UNC thread (16 threads per inch) to ANSI/ASME B1.1, so it mates with any standard 3/8-16 coarse tapped hole, nut, or strut channel nut. If the hole you are working with is 3/8-24 fine thread, this screw will not start in it.
2) Are these screws suitable for a Buy American or ARRA-funded project?
Both boxes are checked on the FM136: it is listed as Buy American compliant and ARRA compliant. Country of origin is recorded as multiple, so if your submittal requires a single named origin on the certificate, request that documentation with the order.
3) Can I buy just a few of these 5 inch machine screws, or is there a minimum?
They ship in a box with an order minimum of 100 count, so this is a bulk fastener line rather than a handful-at-a-time item. If you need a different quantity or a different length in the same FM and FMP series, other sizes and quantities are available by request.
4) Will zinc plated steel hold up outdoors or in a damp mechanical room?
Zinc plating on the FM136 is a light corrosion barrier suited to the indoor electrical, plumbing, and HVAC work it is catalogued for. In wet exteriors, coastal air, or chemical exposure the plating sacrifices itself and the carbon steel underneath will eventually rust, so specify stainless for those openings. The description notes that hardness and tensile figures for stainless machine screws are guides only, since no national standard sets those values.
