Metallics JFM116 3/8-16 x 2 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

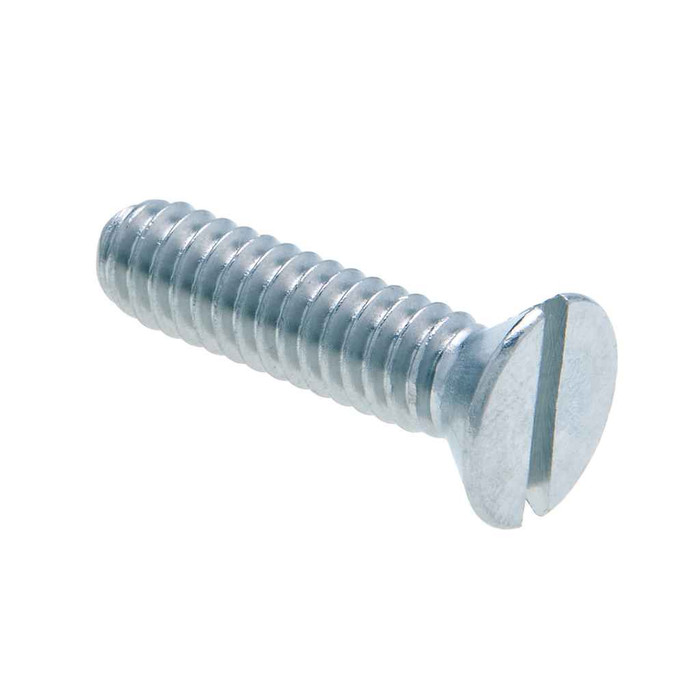

Metallics JFM116 3/8-16 x 2 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM116 3/8-16 x 2 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM116
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3/8-16 x 2 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Features

    • Steel Zinc Material
    • Flat head with slotted Drive
    • Zinc yellow screws are popular in electronics applications.
    • 3/8-16 Diameter, 2" Length

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.2 - 0.23 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.67 - 0.717 in.
Fastener Length:
2
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
5.83 lbs
Product Width:
4.5 in
Slot Depth:
0.07 - 0.106
Slot Width:
0.081 - 0.094
Sub Division:
Electrical-E H2
Tensile Strength:
4650 lb minimum
Thread Per Inch:
16
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM116 – Frequently Asked Questions

1) Will the Metallics JFM116 machine screw thread into a 3/8-16 tapped hole or standard 3/8-16 nut?
Yes. The JFM116 is a 3/8-16 UNC thread at 16 threads per inch, made to ANSI/ASME B1.1, so it mates with any standard 3/8-16 coarse tapped hole, nut or strut channel nut. Length under the head is 2 inches.
2) Is a zinc plated steel machine screw strong enough to hang electrical boxes and conduit supports?
For dry interior electrical, plumbing and HVAC work, yes. The JFM116 is zinc plated steel from AISI 1006-1022 stock, rated Rockwell B70-B100 hardness with a 4650 lb minimum tensile. That covers box mounting, strut and hanger work. Zinc plating is a light coating, so for exterior, wet or corrosive locations go with a stainless flat head machine screw in the same 3/8-16 x 2 size instead.
3) Does the Metallics JFM116 screw qualify for a Buy American or ARRA funded project?
No. The JFM116 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your job carries a domestic content requirement, this screw will not satisfy it.
4) How many 3/8-16 x 2 in. flat head screws come in the Metallics JFM116 jar?
The JFM116 ships in a jar with an order minimum of 100 pieces. Pack weight is 5.83 lbs.
5) Is a machine screw the right choice here, or do I need a bolt or self-tapping screw?
A machine screw like the JFM116 is fully threaded and meant to go into a pre-tapped hole or be run through a clearance hole and secured with a nut. It will not cut its own thread, so if you are fastening into sheet metal with no tap, you want a self-drilling or sheet metal screw instead. The flat head version is for applications where the fastener has to finish flush; if the surface does not need to be flush, a round or pan head in the same 3/8-16 x 2 size is easier to drive.
6) What is the Metallics part number and series for the 3/8-16 x 2 inch flat head slotted screw?
Order it as Metallics JFM116. It belongs to the FM and FMP machine screw series.
