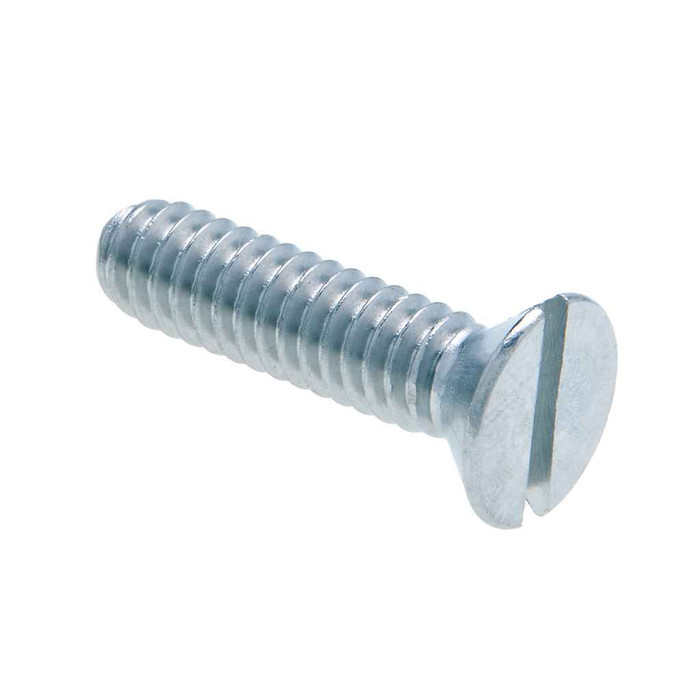

Metallics JFM36 3/8-16 x 1/2 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM36 3/8-16 x 1/2 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM36
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3/8-16 x 1/2 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Zinc yellow screws are popular in electronics applications.
    • Steel Zinc Material
    • Flat head with slotted Drive
    • 3/8-16 Diameter, 1/2" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.2 - 0.23 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.67 - 0.717 in.
Fastener Length:
2-Jan
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
2.06 lbs
Product Width:
3 in
Slot Depth:
0.07 - 0.106
Slot Width:
0.081 - 0.094
Sub Division:
Electrical-E H2
Tensile Strength:
4650 lb minimum
Thread Per Inch:
16
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM36 – Frequently Asked Questions

1) Will a 3/8-16 machine screw thread into my existing 3/8 inch coarse-thread nut or strut channel nut?
Yes. The Metallics JFM36 is cut to 3/8-16 UNC coarse thread, 16 threads per inch, to ANSI/ASME B1.1, so it mates with any standard 3/8-16 nut, channel nut, or tapped hole. It will not engage a 3/8-24 fine thread hole.
2) Does the flat head on the JFM36 sit flush, and what countersink do I need?
It is a flat countersunk head, so it finishes flush with the surface when the hole is countersunk to match. Head width runs 0.67 to 0.717 inch and head height 0.2 to 0.23 inch, which is what your countersink has to accept for the screw to seat level. Drive is a single slot, so a flat blade driver, not a Phillips.
3) With a 1/2 inch long screw, how thick a material can I actually fasten?
Length on the JFM36 is 1/2 inch, and on a flat countersunk head that length is measured overall including the head, since the head sinks into the work. Practically that leaves you fastening thin stock, sheet metal, box covers, and device plates where the nut or tapped hole is right behind the material. For anything thicker you want a longer screw in the same 3/8-16 thread.
4) Can I use the JFM36 on a federally funded job with Buy American requirements?
No. These screws are not Buy American compliant and are not ARRA compliant, with country of origin listed as multiple. For a project with domestic sourcing requirements you need a domestically produced machine screw instead.
5) Are these zinc plated screws suitable for outdoor or wet locations?
Material is zinc plated steel, which is a mild corrosion coating meant for dry interior work, electrical boxes, panels, and mechanical rooms. Field application is electrical, plumbing, heating and air conditioning work. For exterior, damp, or washdown areas use a stainless machine screw in the same 3/8-16 thread instead.
6) How are these Metallics machine screws packaged and what is the minimum order?
They ship 100 to a jar, and the jar is the order minimum. Shipping weight for the jar is 2.06 lbs. If you need a different size or a different count, Metallics offers other sizes and quantities by request.
7) Do these screws meet a published dimensional standard for spec work?
Yes. The JFM36 is made to ASME B18.6.3-1998 for head and slot dimensions, with threads to ANSI/ASME B1.1 and steel per AISI 1006 to 1022. Slot width is 0.081 to 0.094 inch and slot depth 0.07 to 0.106 inch, both within that dimensional standard.
8) What is the difference between a machine screw like this and a self-tapping sheet metal screw?
A machine screw has a uniform straight 3/8-16 machine thread and needs a mating tapped hole or nut, which is why it works in strut channel nuts, panel standoffs, and device boxes and can be removed and reinstalled repeatedly. A self-tapping screw forms its own thread in sheet stock and has no nut. If the hole in your assembly is already tapped or you are using a nut behind it, the machine screw is the right part.
