Metallics JFM123 3/8-16 x 2-1/...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

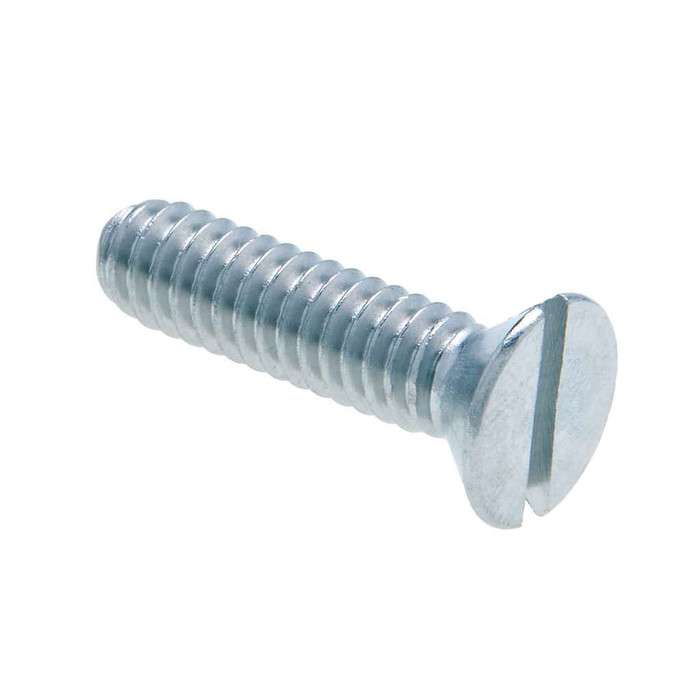

Metallics JFM123 3/8-16 x 2-1/2 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM123 3/8-16 x 2-1/2 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM123
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3/8-16 x 2-1/2 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Features

    • 3/8-16 Diameter, 2-1/2" Length
    • Steel Zinc Material
    • Flat head with slotted Drive
    • Zinc yellow screws are popular in electronics applications.

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.2 - 0.23 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.67 - 0.717 in.
Fastener Length:
2/1/02
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
3.47 lbs
Product Width:
4.5 in
Slot Depth:
0.07 - 0.106
Slot Width:
0.081 - 0.094
Sub Division:
Electrical-E H2
Tensile Strength:
4650 lb minimum
Thread Per Inch:
16
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM123 – Frequently Asked Questions

1) Will a 3/8-16 flat head machine screw thread into a standard 3/8 coarse tapped channel or strut nut?
Yes. The Metallics JFM123 is a 3/8-16 UNC screw cut to the ANSI/ASME B1.1 thread standard, 16 threads per inch, so it mates with any standard 3/8-16 coarse-thread nut, tapped strut insert, or tapped hole. It will not engage a 3/8-24 fine thread.
2) How big is the head on the Metallics JFM123 flat head screw, and will it sit flush?
Head width runs 0.67 to 0.717 inch with a head height of 0.2 to 0.23 inch. Being a flat countersunk head, it seats flush in an 82-degree countersink or a chamfered hole of that diameter. If your plate or box is only punched with a straight hole, the head will stand proud by up to about 0.23 inch.
3) Do these Metallics screws qualify for a Buy American or ARRA funded project?
No. The JFM123 is not Buy American compliant and is not ARRA compliant; country of origin is listed as multiple. If your government, school, or transit project carries a domestic sourcing requirement, these will not satisfy it and you need a domestically produced fastener.
4) What dimensional standard do these Metallics flat head machine screws meet?
The JFM123 is made to ASME B18.6.3-1998 for head and drive dimensions, with threads to ANSI/ASME B1.1. That means head diameter, head height, and slot geometry are interchangeable with any other B18.6.3 flat head slotted machine screw of the same 3/8-16 x 2-1/2 inch size, which matters if you are matching existing hardware on a submittal.
5) How are the Metallics JFM123 screws packaged, and is there a minimum order?
They ship in a jar of 100 pieces, and the jar is the order minimum, so 100 is the smallest quantity. The packed jar weighs 3.47 lb. Plan quantity in multiples of 100 when you are ordering for a multi-unit or multi-floor job.
6) Is a 2-1/2 inch machine screw long enough for my application, and what if I need a different length?
Grip length is 2-1/2 inches overall for a flat head, measured head top to point, since flat heads are measured to the top of the head rather than under it. Subtract your material stack to see how much thread lands in the nut or tapped hole. Other sizes and quantities in the Metallics FM and FMP machine screw series are available by request.
