Metallics JFM130 3/8-16 x 3 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$385.71

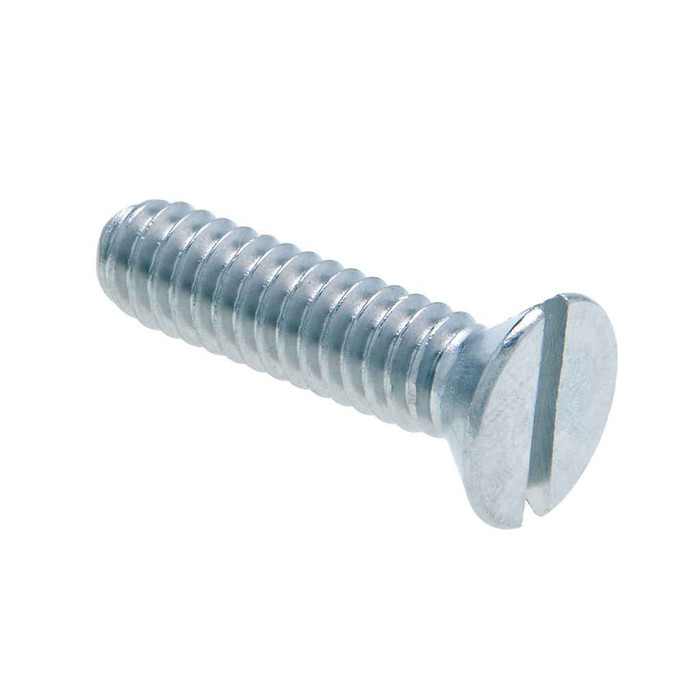

Metallics JFM130 3/8-16 x 3 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM130 3/8-16 x 3 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM130
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$385.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3/8-16 x 3 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Steel Zinc Material
    • Zinc yellow screws are popular in electronics applications.
    • 3/8-16 Diameter, 3" Length
    • Flat head with slotted Drive

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.2 - 0.23 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.67 - 0.717 in.
Fastener Length:
3
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
8.19 lbs
Product Width:
4.5 in
Slot Depth:
0.07 - 0.106
Slot Width:
0.081 - 0.094
Sub Division:
Electrical-E H2
Tensile Strength:
4650 lb minimum
Thread Per Inch:
16
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM130 – Frequently Asked Questions

1) Will a 3/8-16 machine screw thread into a standard 3/8 UNC tapped hole or nut?
Yes. The Metallics JFM130 is a 3/8-16 UNC screw, 16 threads per inch, cut to ANSI/ASME B1.1. That is the standard coarse thread for 3/8 inch hardware, so it mates with any 3/8-16 tapped channel, strut nut, or hex nut.
2) How deep do I need to countersink for this flat head screw to sit flush?
The flat head on the JFM130 runs 0.67 to 0.717 in. across the head and 0.2 to 0.23 in. in head height, dimensioned to ASME B18.6.3-1998. Use a standard 82 degree countersink sized for that head diameter and the screw will seat flush with the surface.
3) How strong is this screw, and will it hold in a structural or load-carrying connection?
The JFM130 is rated at 4,650 lb minimum tensile, with hardness of Rockwell B70-B100, made from AISI 1006-1022 steel. That is plenty for electrical, plumbing, and HVAC mounting, panel, and bracket work. It is a commercial machine screw, not a graded structural bolt, so if your drawing calls out an SAE grade or ASTM structural bolt, specify that instead.
4) Do these screws meet Buy American or ARRA requirements for a federal or public project?
No. Model JFM130 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your contract carries a domestic sourcing clause, this screw will not satisfy it and you need a domestically produced fastener.
5) How much material can a 3 inch long machine screw actually clamp?
Fastener length is 3 inches, measured from the bearing surface of the flat head (flat heads are measured overall, so the full 3 inches goes into the hole). Subtract whatever thread engagement your nut or tapped hole needs and the rest is usable grip, so this size suits stacked plates, spacers, and through-bolting thicker assemblies rather than thin sheet work.
6) Is zinc plated steel okay outdoors or in a damp mechanical room?
The finish is zinc plating over steel, which handles indoor and protected locations well, dry electrical rooms, panel interiors, mechanical spaces. Zinc plate is a sacrificial coating, not stainless, so for direct weather exposure, wash-down areas, or corrosive atmospheres go with a stainless machine screw in the same 3/8-16 x 3 size.
7) Are these machine screws sold individually or by the box?
They ship in a jar, with an order minimum of 100 pieces per jar. If you need a different count or a different size in the FM/FMP series, other sizes and quantities are available by request.
8) What is the shipping weight on a jar of these 3/8-16 x 3 in. screws?
A jar comes in at 8.19 lbs, with carton dimensions of 7.25 x 4.5 x 4.5 in. Worth knowing if you are staging several sizes on a cart or spec'ing a stock room shelf.
