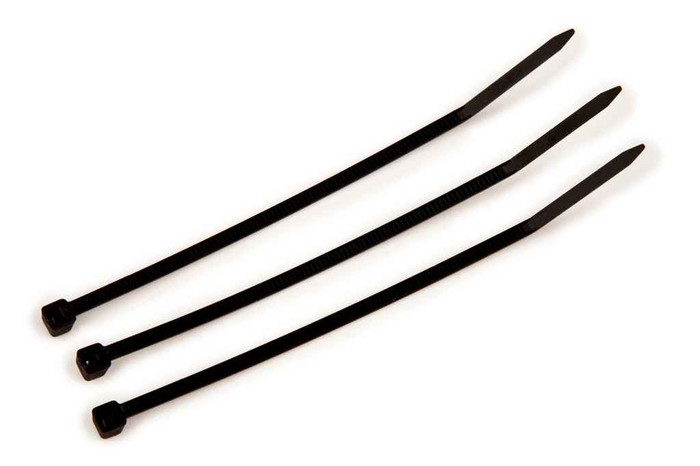

3M Miniature Cable Tie 4 in Black Nylon 6/6 18 lbs Tensile Strength UL Listed, 100 Pack

3M Miniature Cable Tie 4 in Black Nylon 6/6 18 lbs Tensile Strength UL Listed

Professional Wire Management with Curved Tip Design

The 3M Miniature Cable Tie delivers reliable wire bundle and harness component securing with its curved tip design for faster threading and installation. Constructed from durable Nylon 6/6 material, this 4 in black cable tie provides 18 lbs tensile strength and operates across a wide temperature range from -40�F to 185�F. UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces, ensuring compliance with professional installation requirements.

Professional Features & Benefits

• 18 lbs Tensile Strength: Provides secure holding power for reliable wire bundle management in demanding applications.
• Curved Tip Design: Enables faster threading and installation, reducing installation time and effort.
• Nylon 6/6 Construction: Delivers exceptional durability and chemical resistance for long-lasting performance.
• UL Listed & Plenum Rated: Meets UL 62275 Type 21/21S and AH-2 plenum rating for compliant use in air handling spaces.
• Wide Temperature Range: Operates reliably from -40�F to 185�F (-40�C to 85�C) for versatile environmental applications.
• UV Resistant: Maintains integrity and performance when exposed to ultraviolet light conditions.
• Made in USA: Ensures consistent quality and manufacturing standards for professional applications.

Technical Specifications

• Cable Length Imperial: 4 in
• Cable Length Metric: 104.14 mm
• Cable Tie Base Height: 4 in
• Cable Tie Length: 101 mm
• Cable Tie Type: Miniature
• Color Family Incorporate Product Color: Black
• Flammability Rating: UL 94 V-2
• Manufacturer Catalog Number: 7000133450
• Manufacturing Origin: USA
• Maximum Bundle Diameter: 0.75 Inch
• Maximum Bundle Diameter Metric: 19.1 mm
• Maximum Insulation Outer Diameter Metric: 3.7 mm
• Maximum Insulation Outside Diameter: 0.145 in
• Maximum Operating Temperature: 85 Degree Celsius
• Maximum Operating Temperature Celsius: 85 Degree Celsius
• Maximum Operating Temperature Fahrenheit: 185 Degree Fahrenheit
• Minimum Bundle Diameter: 0.0625 Inch
• Minimum Bundle Diameter Metric: 1.6 mm
• Minimum Installation Temperature Celsius: 0 Degree Celsius
• Minimum Installation Temperature Fahrenheit: 32 Degree Fahrenheit
• Minimum Operating Temperature Celsius: -40 Degree Celsius
• Minimum Operating Temperature Fahrenheit: -40 Degree Fahrenheit
• Operating Temperature Celsius: 85 Degree Celsius
• Operating Temperature Fahrenheit: 185 Degree Fahrenheit
• Operating Temperature Range Celsius: -40 �C to 85 �C
• Operating Temperature Range Fahrenheit: -40 �F to 185 �F
• Overall Length Imperial: 4.1 in
• Overall Length Metric: 104 mm
• Overall Width Imperial: 0.1 in
• Overall Width Metric: 2.5 mm
• Package Height: 7.00000 in
• Package Length: 1.50000 in
• Package Weight: 0.0661 LBS
• Plenum Rated: Yes
• Product Material: Nylon 6/6
• Product Type: Standard
• Tensile Strength Imperial: 18 lbs
• Tensile Strength Metric: 8.17 kg
• Uv Resistant: Yes

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Wire Management
• HVAC System Installations
• Telecommunications Equipment
• Industrial Control Cabinets
• Data Center Cable Management
• Commercial Building Systems
• Plenum Space Applications

Why Choose 3M Quality?

3M cable ties deliver proven reliability with UL Listed certification and plenum rating compliance for professional installations. The UV resistant Nylon 6/6 construction and wide operating temperature range ensure long-term performance in demanding environments, while the Made in USA manufacturing provides consistent quality standards for critical wire management applications.
