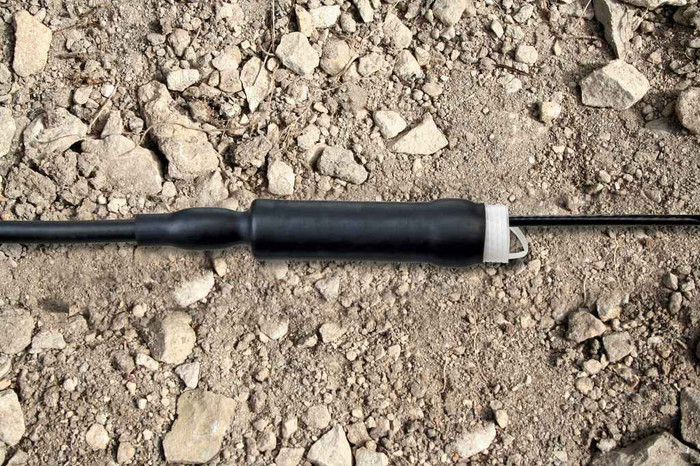

3M 7000058804 3M, Cold Shrink Quick Splice Low Voltage QSLV-M 8-2/0, Non-shielded, 1 kV, 10/case

3M 7000058804 3M, Cold Shrink Quick Splice Low Voltage QSLV-M 8-2/0, Non-shielded, 1 kV, 10/case

(No reviews yet) Write a Review

Model: 7000058804
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$150.31
$100.31
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M, Cold Shrink Quick Splice Low Voltage QSLV-M 8-2/0, Non-shielded, 1 kV, 10/case

  • Features

    • Open-ended tubular sleeves with a sealing mastic on each end for range taking and water resistant tight seal
    • Factory-expanded for easy installation
    • The third, center segment of the core remains inside the cold shrink tube, acting as a support structure
    • Sleeve is made of EPDM rubber which contains no chlorides nor sulfur, sealing mastic provides a water-resistant sealing
    • For direct-bury, secondary low-voltage, non-shielded cable splices
    • Rated for up to 1 kV applications


7000058804 - spec sheet

Manufacturer Resources

Product Specs

Cable Outside Diameter Metric :
19.0 mm
Cable Shielding:
Non-shielded
Cable Type:
Power Cable
Conductor Material:
Aluminum
Conductor Sizes Imperial :
2 AWG
Connector Included:
No
Connector Maximum Outside Diameter:
0.687 in
Connector Maximum Outside Diameter Metric :
17.0 mm
Country Of Origin:
United States
Dielectric Strength V Mil :
365 V/mil
Elongation Uom:
%
Etim Class 7 0:
EC001169
Etim Class 8 0:
EC001169
For Connection Of Paper With Plasticinsulated Cables:
No
Indoor Outdoor:
Both
Insulation O D Range:
0.20-0.75 in
Insulation O D Range Metric :
5-19 mm
Insulation Outer Diameter Imperial :
0.2 in
Insulation Outer Diameter Metric :
10.16 mm
Manufacturing Origin:
USA
Maximum Conductor Size Imperial :
2/0 AWG
Maximum Conductor Size Metric :
70
Maximum Connector Length:
2.50 in
Maximum Connector Length Metric :
63 mm
Maximum Connector O D :
0.687 in
Maximum Connector O D Metric :
17 mm
Minimum Conductor Size Imperial :
8 AWG
Minimum Conductor Size Metric :
10 mm²
Number Of Conductors:
3
Product Color:
Black
Product Model:
Cold Shrink
Product Technology:
Cold Shrink
Product Voltage:
1 kV
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Shelf Life:
1800
Splice Type:
Inline
Voltage Rating:
0.6/1 kV
Department:
Electrical
