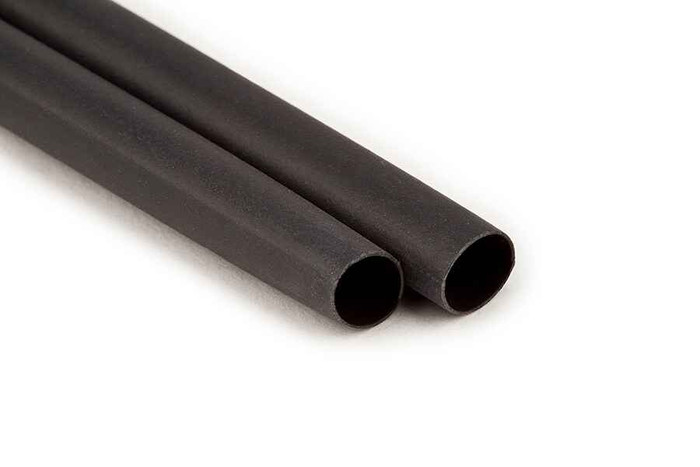

3M 7010319944 3M, Heat Shrink Heavy-Wall Cable Sleeve ITCSN 0400 Black 6-In Piece

3M 7010319944 3M, Heat Shrink Heavy-Wall Cable Sleeve ITCSN 0400 Black 6-In Piece

(No reviews yet) Write a Review

Model: 7010319944
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$85.66
$35.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M, Heat Shrink Heavy-Wall Cable Sleeve ITCSN 0400 Black 6-In Piece

  • Features

    • Suitable for insulating secondary splices, as well as direct buried, submersible and dig-in repairs
    • Made of black cross-linked polyolefin
    • Superior resistance to abrasion, corrosion and chemicals
    • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
    • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
    • Offers reliable performance for electrical splices, connections and terminations

Manufacturer Resources

Product Specs

Inner Diameter After Shrink Imperial :
0.15 in
Inner Diameter After Shrink Metric :
3.8 mm
Inner Diameter Before Shrink Imperial :
0.4 in
Inner Diameter Before Shrink Metric :
10.2 mm
Maximum Operating Temperature Celsius :
110 Degree Celsius
Maximum Operating Temperature Fahrenheit :
230 Degree Fahrenheit
Department:
Electrical

3M 7010319944 – Frequently Asked Questions

1) What cable diameter range does the 3M ITCSN 0400 heat shrink sleeve cover?
The ITCSN 0400 sleeve goes on over anything up to 0.4 in (10.2 mm) and recovers down to 0.15 in (3.8 mm) inside diameter. So the splice or conductor bundle you are covering has to slide inside 0.4 in before heating, and it needs to be at least 0.15 in across so the tubing grips and seals instead of bottoming out on itself. Anything larger than 0.4 in needs the next size up in the ITCSN family.
2) Can this 3M heavy-wall shrink sleeve be direct buried or used underwater?
Yes. The ITCSN 0400 is rated for direct burial, submersible service and dig-in repairs, which is the reason to reach for a heavy-wall adhesive-lined sleeve rather than thin-wall tubing. The cross-linked polyolefin resists abrasion, corrosion and chemicals, so it holds up in a trench or a wet vault.
3) How hot can the ITCSN 0400 sleeve run once it is installed?
Continuous service tops out at 230 F (110 C), with a low end of -67 F (-55 C). That covers a secondary splice in an unconditioned vault, a buried run, or an outdoor pedestal in winter. If your conductor insulation is rated above 110 C, the sleeve becomes the limiting component.
4) Is the 3M ITCSN 0400 sleeve UL Listed and RoHS compliant?
It is UL Listed, CSA Certified, and compliant with RoHS 2011/65/EU. That combination is what most institutional and utility specs call for on a buried or submersible secondary splice, and the CSA mark covers work on the Canadian side.
5) Is heavy-wall shrink sleeve the right choice, or will regular thin-wall tubing do?
For a secondary splice that gets buried, submerged, or is exposed to backfill and dig-in damage, go heavy-wall. The ITCSN 0400 is built for that duty, with thick cross-linked polyolefin that resists abrasion, corrosion and chemicals. Thin-wall tubing is fine for strain relief and light insulation on a dry indoor run, but it will not take mechanical punishment in a trench.
6) What size piece do I get, and how many splices will it cover?
You get a single 6 inch piece of ITCSN 0400 sleeving under part number 7010319944. Cut it to whatever overlap your splice needs, allowing enough length past the connector on each side to seal onto the cable jacket.
7) What color is the 3M ITCSN 0400 sleeve, and is it UV suitable for outdoor use?
Black cross-linked polyolefin. Black is the standard choice for outdoor and buried electrical work, and it is what this sleeve ships as, so there is no color option to specify when ordering.
