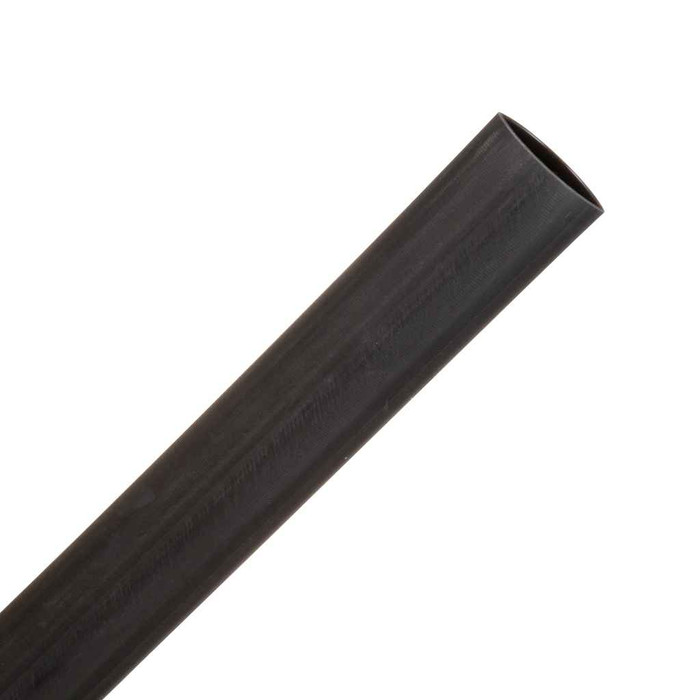

3M 7100086432 3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1100, 100/Case

3M 7100086432 3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1100, 100/Case

(No reviews yet) Write a Review

Model: 7100086432
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$62.93
$12.92
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1100, 100/Case

  • Features

    • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
    • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
    • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
    • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
    • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
    • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals


7100086432 - spec sheet

Manufacturer Resources

Product Specs

Adhesive Lined:
Yes
Ais Url Article Information Sheet :
https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xmY_GMxm94v70k17zHvu9lxtD7xtBevSS
Cable Size Range:
2-4/0 AWG
Country Of Origin:
United States
Dielectric Strength V Mil :
500 V/mil
Direct Bury:
Yes
Elongation Uom:
%
Etim Class 8 0:
EC000217
Expanded Inner Diameter:
1.1 in
Expanded Inner Diameter Metric :
27.9 mm
Flame Retardant:
No
Flammability Rating:
Non-Flame Retardant
Heat Shrink Type:
Adhesive-Lined Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink Imperial :
0.062 in
Inner Diameter After Shrink Metric :
1.57 mm
Inner Diameter Before Shrink Imperial :
0.125 in
Inner Diameter Before Shrink Metric :
3.18 mm
Manufacturing Origin:
USA
Maximum Operating Temperature Celsius :
100
Maximum Operating Temperature Celsius Uom:
Degree
Maximum Operating Temperature Fahrenheit :
230.0 Degree
Maximum Voltage Rating:
1 kV
Minimum Expanded Tubing I D :
1.1 in
Minimum Shrink Temperature Celsius :
121
Minimum Shrink Temperature Fahrenheit :
250 °F
Non Corrosive:
Yes
Operating Temperature Celsius :
-55 to 100 Degrees Celsius
Operating Temperature Fahrenheit :
-67 °F to 230 °F
Operating Temperature Range Celsius :
-55 °C to -100 °C
Operating Temperature Range Fahrenheit :
-67 °F to 230 °F
Overall Length Imperial :
6.0 in
Overall Length Metric :
152.0 mm
Product Material:
Polyolefin
Product Type:
Splice
Product Voltage:
1 kV
Rds Url Regulatory Data Sheet :
https://cdmsweb.3m.com/ingredientcommunication/file/Media/3oiRvIxw8vI=
Recovered Inner Diameter:
0.37 in
Recovered Inner Diameter Metric :
9.4 mm
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Shelf Life:
3600
Shrink Ratio:
3:01
Solution For:
Access Network: FTTH/FTTB/CATV
Specifications Met:
UL 486D*
Splice Type:
Heat Shrink
Tensile Strength Imperial :
2400 Pound-Force Per Square Inch
Tubing Type:
Heavy Wall
Units Per Case:
100
Department:
Electrical

3M 7100086432 – Frequently Asked Questions

1) What cable sizes will the 3M ITCSN-1100 heat shrink sleeve fit?
The ITCSN-1100 covers 2 AWG through 4/0 AWG cable. It goes on with a 1.1 inch (27.9 mm) expanded inner diameter and recovers down to 0.37 inch (9.4 mm), so it will grip well under the connector as well as over it. Anything larger than 4/0 needs the next size up in the ITCSN family.
2) Can this 3M heat shrink sleeve be direct buried or used in a wet vault?
Yes. The ITCSN-1100 is rated for direct bury, and the adhesive lining is what makes that work: it melts as the sleeve recovers and seals the ends against moisture. 3M lists it for direct-buried, submersible, and dig-in repair work as well as insulating secondary splices.
3) What voltage is the ITCSN-1100 cable sleeve rated for?
600 V under UL 486D, with a product voltage rating of 1 kV. Dielectric strength is 500 V/mil. That puts it squarely in secondary and low-voltage work, not in place of a primary cable splice kit.
4) Is the ITCSN-1100 flame retardant? I need it for a plenum or interior riser.
No. It is classed non-flame retardant, so it should not be specified where a flame-retardant or plenum-rated material is called for. Its strengths are outdoor, buried, and enclosure work: abrasion, corrosion, and chemical resistance with a moisture seal. If your spec calls out flame retardancy, choose a flame-retardant heat shrink instead.
5) How much heat does it take to shrink the ITCSN-1100, and can I use a heat gun?
Minimum shrink temperature is 250 F (121 C), so a standard electrical heat gun or a torch with a soft flame will recover it. Work the heat around the circumference from the center out so the adhesive flows toward both ends. Note it is a non-flame-retardant polyolefin, so keep an open flame moving and off the finished surface.
6) Is a 6 inch sleeve long enough to cover a 4/0 compression splice?
Each ITCSN-1100 sleeve is 6.0 inches (152 mm) long before shrinking, and it shrinks in diameter, not appreciably in usable length. For a standard compression connector on 2 to 4/0 cable that leaves overlap onto the jacket at both ends, which is what the adhesive needs to seal against. For a long inline barrel or a lug with a deep palm, plan on a longer sleeve or a second piece.
7) What temperature range can this heat shrink sleeve live in once installed?
Continuous service runs from -67 F to 230 F (-55 C to 100 C). That covers outdoor pedestal and vault work in cold climates as well as warm conduit runs. It is not a high-temperature engine or exhaust-adjacent product.
8) Is this UL Listed and RoHS compliant for a government or utility spec job?
The ITCSN-1100 is UL Listed and CSA Certified, meets UL 486D, and is RoHS 2011/65/EU compliant without exemption. Country of origin is the United States. Those are the four line items most institutional and utility submittals ask for on a low-voltage cable sleeve.
9) What is the difference between heavy-wall adhesive-lined sleeve and plain thin-wall heat shrink tubing?
The ITCSN-1100 is heavy-wall, adhesive-lined, cross-linked polyolefin with a 3:1 shrink ratio and 2400 psi tensile strength. The thick wall and the melt-flow adhesive give mechanical protection and a moisture seal, which is why it is approved for direct bury. Plain thin-wall tubing insulates and dresses a joint but does not seal it and will not stand up to buried or abraded service. If the splice stays dry inside a panel, thin-wall is enough; if it goes in the ground or a wet vault, use this.
10) How many sleeves come in a case of 3M 7100086432?
That part number, 7100086432, is a 100-piece case of ITCSN-1100 sleeves. It is the bulk case pack, so it suits a crew stocking a truck or a utility storeroom rather than a one-off repair.
11) Will this sleeve corrode the conductors or connector it is shrunk over?
No. The ITCSN-1100 is a non-corrosive formulation, so it can go directly over copper or aluminum connectors and lugs without attacking the metal. 3M also lists it for physical protection of high voltage air-insulated connectors and lugs.
