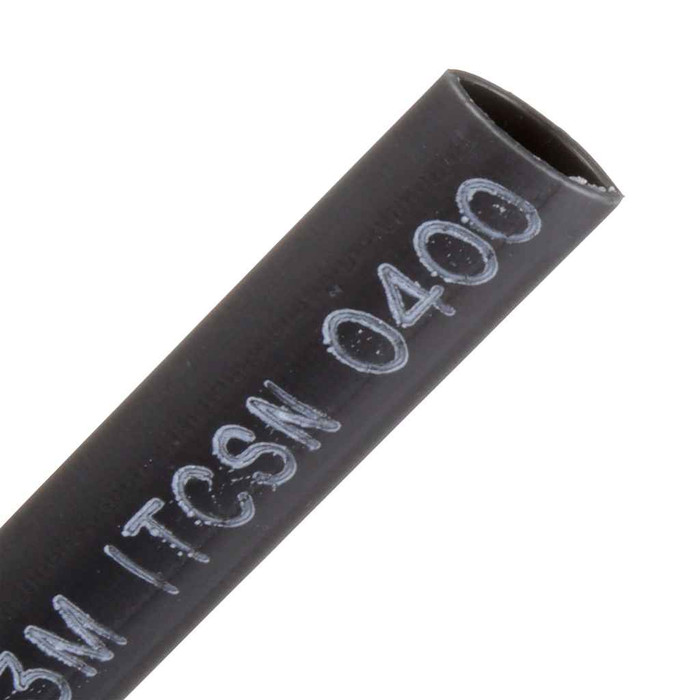

3M 7000132151 3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, 12-6 AWG, Expanded/Recovered I.D. 0.40/0.15 in, 6 in Length, 100/case

3M 7000132151 3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, 12-6 AWG, Expanded/Recovered I.D. 0.40/0.15 in, 6 in Length, 100/case

(No reviews yet) Write a Review

Model: 7000132151
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$58.20
$8.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, 12-6 AWG, Expanded/Recovered I.D. 0.40/0.15 in, 6 in Length, 100/case

  • Features

    • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
    • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
    • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
    • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
    • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
    • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available


7000132151 - spec sheet

Manufacturer Resources

Product Specs

Adhesive Lined:
Yes
Ais Url Article Information Sheet :
https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xmY_GMxm94v70k17zHvu9lxtD7xtBevSS
Cable Size Range:
12-6 AWG
Chemical Resistant:
Yes
Country Of Origin:
United States
Dielectric Strength V Mil :
500 V/mil
Direct Bury:
Yes
Elongation Uom:
%
Etim Class 8 0:
EC000217
Expanded Inner Diameter:
0.4 in
Expanded Inner Diameter Metric :
10.2 mm
Flame Retardant:
No
Flammability Rating:
Non-Flame Retardant
Heat Shrink Type:
Adhesive-Lined Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink Imperial :
0.15 in
Inner Diameter After Shrink Metric :
0.381 cm²
Inner Diameter Before Shrink Imperial :
0.4 in
Inner Diameter Before Shrink Metric :
1.016 cm²
Manufacturing Origin:
USA
Maximum Operating Temperature Celsius :
100
Maximum Operating Temperature Celsius Uom:
Degree
Maximum Operating Temperature Fahrenheit :
230.0 Degree
Maximum Voltage Rating:
1 kV
Minimum Expanded Tubing I D :
0.4 in
Minimum Shrink Temperature Celsius :
121
Minimum Shrink Temperature Fahrenheit :
250 °F
Non Corrosive:
Yes
Operating Temperature Celsius :
-55 to 100 Degrees Celsius
Operating Temperature Fahrenheit :
-67 °F to 230 °F
Operating Temperature Range Celsius :
-55 °C to -100 °C
Operating Temperature Range Fahrenheit :
-67 °F to 230 °F
Overall Length Imperial :
6.0 in
Overall Length Metric :
152.4 mm
Product Color:
Black
Product Material:
Adhesive-lined Polyolefin
Product Type:
Splice
Product Voltage:
1 kV
Rds Url Regulatory Data Sheet :
https://cdmsweb.3m.com/ingredientcommunication/file/Media/3oiRvIxw8vI=
Recovered Inner Diameter:
0.15 in
Recovered Inner Diameter Metric :
3.8 mm
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Shelf Life:
3600
Shrink Ratio:
3:01
Solution For:
Access Network: FTTH/FTTB/CATV
Specifications Met:
UL 486D*
Splice Type:
Heat Shrink
Tensile Strength Imperial :
2400 Pound-Force Per Square Inch
Tubing Type:
Heavy Wall
Units Per Case:
100
Department:
Electrical

3M 7000132151 – Frequently Asked Questions

1) Can this 3M sleeve be direct buried or used in a wet vault?
Yes. The ITCSN-0400 is rated for direct burial, and the adhesive lining is what makes that work: the lining melts and flows during shrink to seal the ends against moisture ingress. 3M lists it for direct-buried, submersible and dig-in repairs as well as insulating secondary splices. It is also non-corrosive and chemical resistant.
2) Is this 3M sleeve flame retardant? I need it for an occupied building plenum.
No. The ITCSN-0400 is a non-flame-retardant cross-linked polyolefin sleeve. If your specification calls for a flame retardant jacket over the splice, this is not the part, and you should select a flame-retardant heat shrink tubing instead. It is UL Listed, CSA Certified and RoHS 2011/65/EU compliant without exemption.
3) Is the 3M ITCSN-0400 a connector or just insulation over one?
It is insulation and sealing only, not a mechanical connection. You still need a crimp or compression connector to join the conductors, then the sleeve goes over it. A copper compression splice such as the Burndy YS6C Hylink long barrel splice is the type of connector that goes underneath; the 3M heavy-wall sleeve then covers and seals it.
4) For a direct-buried secondary splice, do I need the 3M ITCSN-0400 sleeve in addition to a Burndy YS6C connector?
The sealing comes from the sleeve, not the connector. The Burndy YS6C Hylink is a copper compression splice and provides the conductor joint only. The 3M ITCSN-0400 heavy wall sleeve is adhesive-lined and rated for direct bury, giving you the moisture seal and mechanical protection a buried or submersible repair needs, with 600 V per UL 486D, a -67 to 230 F service range and chemical and corrosion resistance. If the splice goes in the ground, plan on the sleeve over the crimp.
5) How hot does a heat gun need to get to shrink the 3M ITCSN-0400 sleeve?
Minimum shrink temperature is 250 F (121 C), so a standard electrical heat gun or a propane torch with a flame spreader will recover it. Work the heat around the circumference from the center out so the adhesive flows and pushes air out both ends. Once installed, the sleeve runs continuously from -67 F to 230 F (-55 C to 100 C).
6) How long is each sleeve and how many come in a case?
Each piece is 6 in (152.4 mm) long, black, and cases are 100 pieces. Lay the 6 inches against your splice before ordering: with a long-barrel compression connector you want adhesive-sealed overlap onto sound insulation at both ends, so a long barrel on 6 AWG can leave very little margin.
7) Why choose heavy-wall over thin-wall heat shrink for an underground repair?
Heavy-wall tubing gives you a thicker, tougher jacket over the splice, which is what stands up to backfill abrasion, rock, and shovel strikes on a dig-in repair. The ITCSN-0400 is a heavy-wall, adhesive-lined construction with 2400 psi tensile strength, split resistant and fast shrinking. Thin-wall tubing is fine for strain relief and marking on a panel, but it is not what you bury.
8) Can I use the ITCSN-0400 where a flame retardant sleeve is specified?
No. The ITCSN-0400 is classed non-flame retardant, so it should not be used where the drawing calls for a flame retardant tubing. What it does bring is a 3:1 shrink heavy wall cross-linked polyolefin body with 500 V/mil dielectric strength, 2400 psi tensile strength, a 121 C minimum shrink temperature and RoHS 2011/65/EU compliance without exemption - suited to insulating secondary splices and buried or submersible repairs rather than fire-rated assemblies.
9) My cable is larger than 6 AWG - what do I use instead of the ITCSN-0400?
The ITCSN-0400 covers 12-6 AWG with a 0.40 in expanded I.D. shrinking to 0.15 in, so it will not pass a larger conductor or connector barrel. The ITCSN family continues in larger sizes - 0800, 1100, 1500 and 2000 are all covered by the same UL 486D 600 V rating, with 3000 also CSA certified - so step up to the ITCSN size whose expanded I.D. clears your crimped connector.
