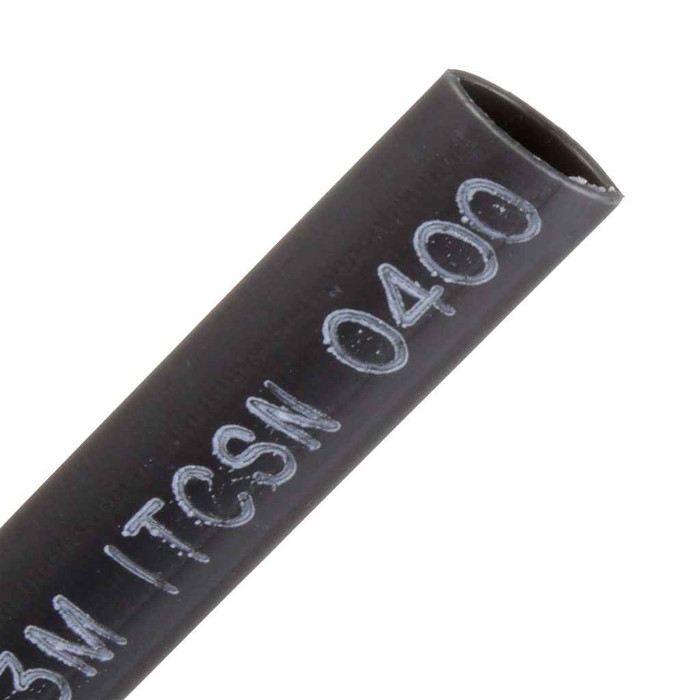

3M 7000031472 3M, Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, 12-6 AWG, Expanded/Recovered I.D. 0.40/0.15 in, 6 in Length, boxed, 25/Case

3M 7000031472 3M, Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, 12-6 AWG, Expanded/Recovered I.D. 0.40/0.15 in, 6 in Length, boxed, 25/Case

(No reviews yet) Write a Review

Model: 7000031472
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$62.39
$13.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M, Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, 12-6 AWG, Expanded/Recovered I.D. 0.40/0.15 in, 6 in Length, boxed, 25/Case

  • Features

    • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
    • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
    • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
    • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
    • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67,230 °F (55,110 °C)
    • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant


7000031472 - spec sheet

Manufacturer Resources

Product Specs

Adhesive Lined:
Yes
Ais Url Article Information Sheet :
https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xmY_GMxm94v70k17zHvu9lxtD7xtBevSS
Cable Size Range:
12-6 AWG
Chemical Resistant:
Yes
Country Of Origin:
United States
Dielectric Strength V Mil :
500 V/mil
Direct Bury:
Yes
Elongation Uom:
%
Etim Class 8 0:
EC000217
Expanded Inner Diameter:
0.4 in
Expanded Inner Diameter Metric :
10.2 mm
Flame Retardant:
No
Flammability Rating:
Non-Flame Retardant
Heat Shrink Type:
Adhesive-Lined Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink Imperial :
0.15 in
Inner Diameter After Shrink Metric :
0.381 cm²
Inner Diameter Before Shrink Imperial :
0.4 in
Inner Diameter Before Shrink Metric :
1.016 cm²
Manufacturing Origin:
USA
Maximum Operating Temperature Celsius :
100
Maximum Operating Temperature Celsius Uom:
Degree
Maximum Operating Temperature Fahrenheit :
230.0 Degree
Maximum Voltage Rating:
1 kV
Minimum Expanded Tubing I D :
0.4 in
Minimum Shrink Temperature Celsius :
121
Minimum Shrink Temperature Fahrenheit :
250 °F
Non Corrosive:
Yes
Operating Temperature Celsius :
-55 to 100 Degrees Celsius
Operating Temperature Fahrenheit :
-67 °F to 230 °F
Operating Temperature Range Celsius :
-55 °C to -100 °C
Operating Temperature Range Fahrenheit :
-67 °F to 230 °F
Overall Length Imperial :
6.0 in
Overall Length Metric :
152.4 mm
Product Color:
Black
Product Material:
Adhesive-lined Polyolefin
Product Type:
Splice
Product Voltage:
1 kV
Rds Url Regulatory Data Sheet :
https://cdmsweb.3m.com/ingredientcommunication/file/Media/3oiRvIxw8vI=
Recovered Inner Diameter:
0.15 in
Recovered Inner Diameter Metric :
3.8 mm
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Shelf Life:
3600
Shrink Ratio:
3:01
Solution For:
Access Network: FTTH/FTTB/CATV
Specifications Met:
UL 486D*
Splice Type:
Heat Shrink
Tensile Strength Imperial :
2400 Pound-Force Per Square Inch
Tubing Type:
Heavy Wall
Units Per Case:
25
Department:
Electrical

3M 7000031472 – Frequently Asked Questions

1) What wire sizes will the 3M ITCSN-0400 heat shrink sleeve cover?
The ITCSN-0400 sleeve covers 12 to 6 AWG cable. It goes on at a 0.40 inch expanded inner diameter and recovers down to 0.15 inch, a 3:1 shrink, so it grips tight over the conductor and the splice body across that range. If your cable is larger than 6 AWG, step up to a bigger ITCSN size rather than forcing this one.
2) Can this 3M heat shrink sleeve be direct buried or used in a wet pit?
Yes. The ITCSN-0400 is rated for direct bury, and the adhesive lining is what makes that work: it melts during shrinking and seals the ends against moisture wicking. It's used for insulating secondary splices, direct-buried, submersible and dig-in repairs, and for physical protection of air-insulated connectors and lugs. It also resists abrasion, corrosion and chemicals.
3) What temperature does this 3M sleeve need to shrink, and can I use a torch?
Minimum shrink temperature is 250 F (121 C). A propane torch with a soft flame or an electric heat gun both get there; keep the flame moving and work from the center out so the adhesive flows and pushes air out both ends. In service the sleeve holds from -67 F to 230 F (-55 C to 100 C). One thing to know before you pick a heat source: this is a non-flame-retardant polyolefin, so it will support combustion if you park a flame on it.
4) Is the 3M ITCSN-0400 flame retardant? I need it for an indoor cable tray.
No. The ITCSN-0400 is a non-flame-retardant cross-linked polyolefin. If your specification calls for a flame-retardant sleeve in a plenum, tray, or other indoor run where fire propagation matters, this is the wrong part. It is built for the environmental side of the job: abrasion, corrosion, chemicals, and direct burial.
5) Is the Burndy YS6C Hylink splice an alternative to the 3M ITCSN-0400 heat shrink sleeve?
They do different jobs and are commonly used together rather than one in place of the other. The 3M ITCSN-0400 is a heat shrink splice sleeve - an adhesive-lined, heavy wall polyolefin tube, 6 in long, that goes over a completed connection for insulation and sealing. The Burndy YS6C is a Hylink long barrel copper compression splice, which is the metallic connector that mechanically joins the two conductors. A compression splice makes the electrical joint; the ITCSN-0400 covers it. If you need the conductors physically joined, you need a compression connector such as the YS6C; if the joint is already made and you need it insulated and moisture sealed, the ITCSN-0400 is the part.
6) How long is each sleeve, and how many come in a case?
Each ITCSN-0400 sleeve is 6 inches long (152.4 mm), and they ship 25 to a case, boxed. Six inches gives you enough length to cover a barrel connector plus a couple of inches of overlap onto the jacket at each end, which is what you want for the adhesive to seal against.
7) What is the difference between heavy wall and thin wall heat shrink for an underground repair?
Wall thickness is the whole point underground. The ITCSN-0400 is heavy wall, which means more material left after recovery for mechanical protection against rock, backfill and dig-in damage, plus it carries the adhesive liner that seals the ends. Thin wall tubing is fine for strain relief and marking on a dry indoor run, but it will not take abrasion in a trench. Heavy wall with a 3:1 ratio also means it goes on over a bulky crimp barrel and still pulls down tight on the bare conductor.
8) Does the 3M ITCSN-0400 meet RoHS, and where is it made?
RoHS 2011/65/EU compliant without exemption, and made in the United States. It is also UL Listed to UL 486D and CSA Certified across the ITCSN 0400 through 2000 sizes. For a government or institutional submittal, that gives you domestic origin plus the UL and CSA references on one line item.
9) My conductors are larger than 6 AWG - what should I use instead of the ITCSN-0400?
The ITCSN-0400 covers 12 to 6 AWG with a 0.40 in expanded inside diameter, so heavier conductors will not enter it. Step up within the same ITCSN heavy wall family - the 600 V UL 486D listing on the sleeve applies to ITCSN 0400, 0800, 1100, 1500 and 2000, and CSA certification adds 3000, with each number corresponding to a larger expanded diameter. Size by the expanded I.D. against the largest point of the assembly, usually the connector barrel rather than the bare conductor.
10) Is a non-adhesive heat shrink sleeve an acceptable substitute for the ITCSN-0400?
Only where sealing is not required. The ITCSN-0400 is adhesive lined, which is what makes it suitable for direct-buried, submersible and dig-in repairs, since the lining flows on recovery and blocks moisture at the cable entries. Non-adhesive heavy wall tubing gives mechanical and abrasion cover but no seal. Note also that the ITCSN-0400 is non-flame retardant, so for an application with a flame retardance requirement, a flame retardant tubing is the correct choice rather than this sleeve.
11) What color are these sleeves and will they hold up to sunlight and chemicals?
Black, in adhesive-lined polyolefin. The material is rated non-corrosive and chemical resistant, and 3M lists it as protecting against abrasion, corrosion and chemicals. Tensile strength is 2400 psi, so it takes handling and backfill without splitting.
12) Can I use the ITCSN-0400 on fiber and telecom drop cable, not just power?
Yes, 3M positions the ITCSN sleeve for access network work including FTTH, FTTB and CATV, alongside secondary power splices. The sizing is what governs: the recovered 0.15 inch inner diameter has to close down onto whatever you are sealing, so match the cable outer diameter, not the service type.
