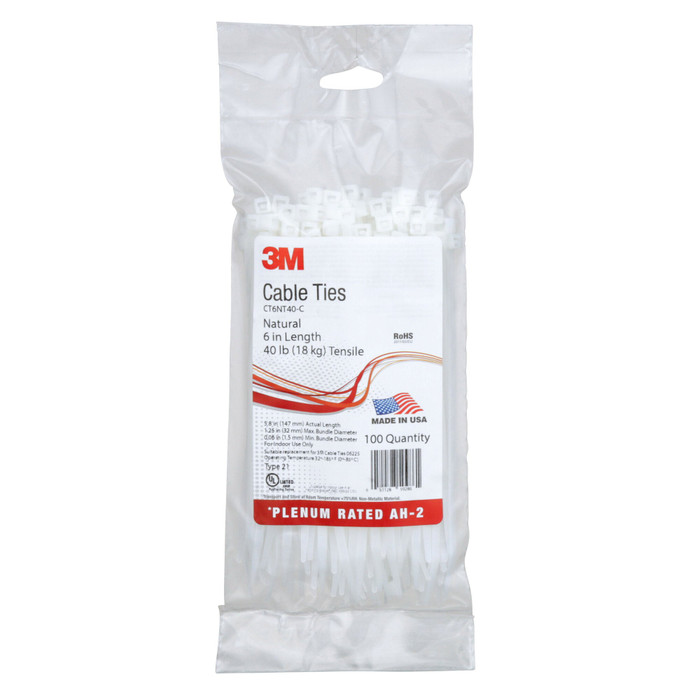

3M™ Intermediate Cable Ties CT6NT40-C
Features
- Secure wire bundles and harness components quickly, without slipping
- UL Listed 62275 Type 21 and Plenum Rated AH-2 for use in air handling spaces
- Made in the USA
- Can be quickly mounted to walls and structures with screws, bolts or rivets for added security
Manufacturer Resources
3M Electrical Supplies Application Guide
Product Specs
- Maximum Operating Temperature Celsius:
- 85 Degree Celsius
- Maximum Operating Temperature Fahrenheit:
- 185 Degree Fahrenheit
- Minimum Operating Temperature Celsius:
- -40 Degree Celsius
- Minimum Operating Temperature Fahrenheit:
- -40 Degree Fahrenheit
- Overall Length Imperial:
- 5.8 in
- Overall Length Metric:
- 5.8 mm
- Package Quantity:
- 100
- Tensile Strength Imperial:
- 30 lbs
- Tensile Strength Metric:
- 13.6 kg
- Department:
- Electrical
- Product Type:
- Cable Tie
- Product Group:
- Cable Management & Identification
- Product Subgroup:
- Cable Ties & Mounts
- Plenum Rated:
- Yes
- Cable Tie Length:
- 218 mm
- Minimum Bundle Diameter:
- 0.0625 Inch
- Flammability Rating:
- UL 94 V-2
- Product Material:
- Nylon 6/6
- Maximum Bundle Diameter:
- 1.25 Inch
- Cable Tie Type:
- Intermediate
- Maximum Insulation Outside Diameter:
- 0.145 in
- Maximum Operating Temperature:
- 85 Degree Celsius
- Cable Tie Base Height:
- 6 in
- Manufacturing Origin:
- USA
3M 7010350069 – Frequently Asked Questions
1) Can 3M CT6NT40-C cable ties be used in a plenum or return air space?
Yes. The 3M CT6NT40-C intermediate cable tie is UL Listed 62275 Type 21 and Plenum Rated AH-2 for use in air handling spaces, so it can go above a plenum ceiling or in a return air plenum where non-rated nylon ties are not permitted.
2) How strong is the 3M CT6NT40-C cable tie, and what size bundle will it take?
The CT6NT40-C is a 30 lb (13.6 kg) tensile strength intermediate tie with an overall length of 5.8 inches. That length is what limits the bundle: a 5.8 inch tie suits small wire bundles and harnesses, not large conduit runs or trunk cable. For heavier bundles, step up to a longer, higher tensile tie.
3) Will these 3M cable ties hold up outdoors or in an unheated attic or mechanical room?
The CT6NT40-C is rated for continuous use from -40 to 185 degrees F (-40 to 85 degrees C), so cold attics, unheated garages and warm mechanical spaces are all inside its range. Nothing in the rating covers long-term UV exposure, so for direct sunlight service pick a tie specified as UV stabilized.
4) Can these cable ties be screwed to a wall or stud instead of just wrapped around a bundle?
Yes. The CT6NT40-C has a mounting provision so the tie can be fastened to walls and structures with a screw, bolt or rivet, which lets you anchor a bundle to a stud or panel rather than only cinching it. No screws are supplied, so pick fasteners to suit the substrate.
5) How many ties come in a pack of 3M 7010350069?
The 3M 7010350069 CT6NT40-C ships 100 ties per package. For MRO stock or a multi-unit rough-in, order by that pack count rather than by the piece.
6) Which 3M part number do I order for the CT6NT40-C cable tie?
Order 3M part 7010350069. CT6NT40-C is the 3M product designation for the intermediate, plenum rated tie; 7010350069 is the orderable number that carries the 100 piece pack.
