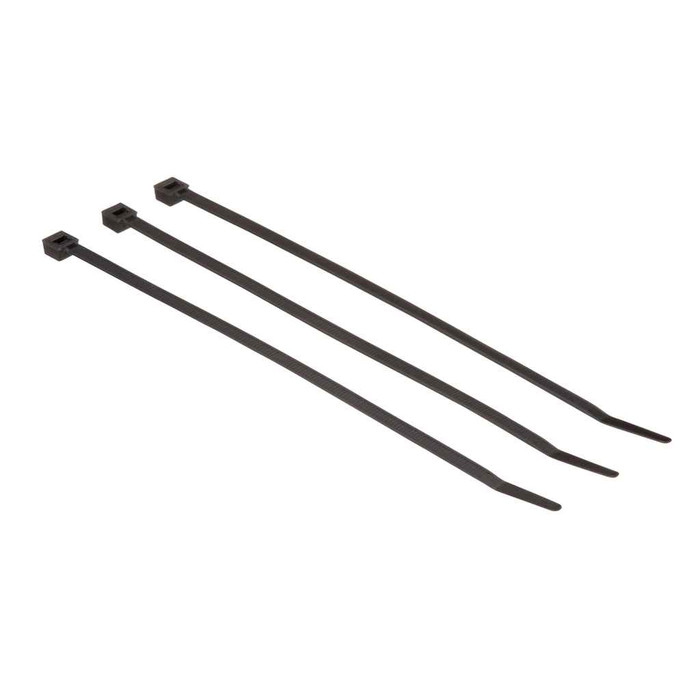

3M™ Cable Tie CT8BK50-C, 1000/Case
7000031853 - spec sheet
Features
- Curved tip allows for faster threading and installation
- Made in the USA
- UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
- Secure wire bundles and harness components quickly, without slipping
7000031853 - spec sheet
Manufacturer Resources
Product Specs
- Ais Url Article Information Sheet:
- https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xMY_ZPYtS5v70k17zHvu9lxtD7xtBevSS
- Cable Diameter Range:
- 8,1 - 39,4 mm
- Cable Length Imperial:
- 8.0 in
- Cable Length Metric:
- 193.04 mm
- Cable Management Products:
- Cable Ties
- Cable Tie Base Height:
- 8 in
- Cable Tie Length:
- 193.0 mm
- Cable Tie Type:
- Standard
- Country Of Origin:
- Honduras
- Etim Class 8 0:
- EC000046
- Flammability Rating:
- UL 94 V-2
- Manufacturing Origin:
- USA
- Maximum Bundle Diameter:
- 1.87 Inch
- Maximum Bundle Diameter Metric:
- 51.0 mm
- Maximum Insulation Outer Diameter Metric:
- 3.7 mm
- Maximum Insulation Outside Diameter:
- 0.145 in
- Maximum Operating Temperature:
- 85 Degree Celsius
- Maximum Operating Temperature Celsius:
- 85.0 Degree
- Maximum Operating Temperature Fahrenheit:
- 185.0 Degree
- Maximum Recommended Voltage Rating:
- 600.0 V
- Mil Spec:
- MS3367-1-0
- Minimum Bundle Diameter:
- 0.0625 Inch
- Minimum Bundle Diameter Metric:
- 1.6 mm
- Minimum Installation Temperature Celsius:
- -20 Degree Celsius
- Minimum Operating Temperature Celsius:
- -40.0 Degree
- Minimum Operating Temperature Fahrenheit:
- -40.0 Degree
- Operating Temperature Celsius:
- 85 Degree Celsius
- Operating Temperature Fahrenheit:
- 185 Degree Fahrenheit
- Operating Temperature Range Celsius:
- -40 °C to 85 °C
- Operating Temperature Range Fahrenheit:
- -40 °F to 185 °F
- Overall Length Imperial:
- 7.6 in
- Overall Length Metric:
- 193.0 mm
- Overall Width Imperial:
- 0.18 in
- Overall Width Metric:
- 4.6 mm
- Package Quantity:
- 100.0 EACH
- Plenum Rated:
- Yes
- Product Color:
- Black
- Product Material:
- Nylon 6/6
- Product Type:
- Cable Tie
- Rds Url Regulatory Data Sheet:
- https://cdmsweb.3m.com/ingredientcommunication/file/Media/hshU5W72F9o=
- Rohs Eu Comments:
- RoHS 2011/65/EU compliant without exemption
- Solution For:
- Longhaul/Metro Loop Network: Outdoor
- Tape Type:
- Barricade
- Tensile Strength Imperial:
- 50 lbs
- Tensile Strength Metric:
- 22.68 kg
- Ul Approval:
- Yes
- Units Per Bag:
- 100
- Units Per Case:
- 1000
- Uv Resistant:
- Yes
- Department:
- Electrical
- Product Subgroup:
- Cable Ties & Mounts
3M 7000031853 – Frequently Asked Questions
1) Can 3M CT8BK50-C cable ties be used in a plenum or return air space?
Yes. The CT8BK50-C is plenum rated and UL Listed 62275 Type 21 or 21S, with an AH-2 rating for use in air handling spaces. That is the rating inspectors look for when ties run above a ceiling used as a return air plenum.
2) Will these black nylon cable ties hold up outdoors in sunlight?
Yes. These are black Nylon 6/6 and UV resistant, which is why 3M lists them for outdoor longhaul/metro loop network work. Operating range is -40 F to 185 F (-40 C to 85 C).
3) Is a 50 lb tensile cable tie strong enough for commercial wire harnessing?
The CT8BK50-C is rated at 50 lbs (22.68 kg) tensile, which is the standard-duty class used for general electrical bundling, harnesses, and low-voltage runs. For heavy outdoor bundles or structural strain, step up to a heavy-duty tie.
4) How cold can it be when I install 3M CT8BK50-C ties?
Minimum installation temperature is -20 C. The tie continues to operate down to -40 C once installed, but cinching nylon below -20 C risks cracking, so bring ties indoors before a cold-weather pull.
5) How many 3M CT8BK50-C ties come in a case, and how are they bagged?
The case holds 1000 ties, bagged 100 per bag. That packaging suits MRO stockrooms and crews who want to pull a bag to the truck instead of opening a full case.
6) What is the flammability rating on 3M CT8BK50-C cable ties?
UL 94 V-2, and the ties carry UL approval. Combined with the AH-2 plenum rating, that covers most commercial spec language for ties in concealed and air-handling spaces.
7) Do these 3M cable ties meet a military spec?
They are listed to MS3367-1-0, the common miniature plain cable strap callout. Handy when a drawing or government MRO order specifies MS3367 rather than a commercial part number.
8) Are 3M CT8BK50-C cable ties RoHS compliant, and where are they made?
They are RoHS 2011/65/EU compliant without exemption. Manufacturing origin is listed as USA, with country of origin recorded as Honduras.
9) What voltage circuits can these ties be used around?
Maximum recommended voltage rating is 600 V, which covers standard commercial branch circuits, panel wiring, and low-voltage data runs.
