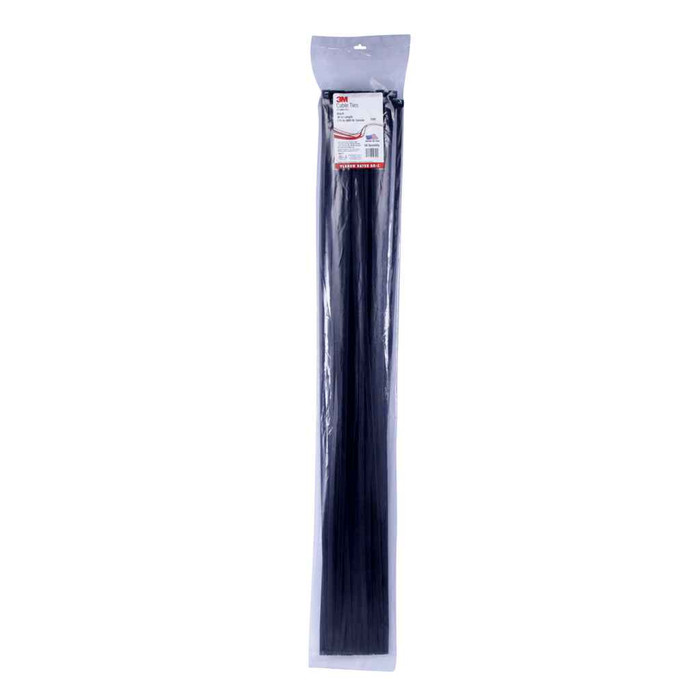

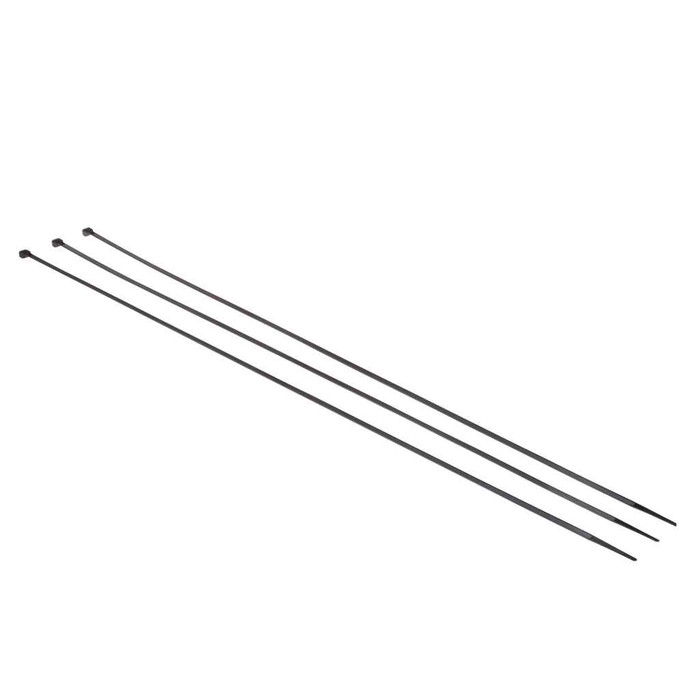

3M™ Cable Tie CT36BK175-L, 500/Case
7000031861 - spec sheet
Features
- Curved tip allows for faster threading and installation
- UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
- Made in the USA
- Secure wire bundles and harness components quickly, without slipping
7000031861 - spec sheet
Manufacturer Resources
3M Electrical Supplies Application Guide
Product Specs
- Ais Url Article Information Sheet:
- https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xMY_ZPYtS5v70k17zHvu9lxtD7xtBevSS
- Cable Diameter Range:
- 8,1 - 39,4 mm
- Cable Length Imperial:
- 36.0 in
- Cable Length Metric:
- 914.4 mm
- Cable Management Products:
- Cable Ties
- Cable Tie Base Height:
- 36 in
- Cable Tie Length:
- 914.0 mm
- Cable Tie Type:
- Heavy Duty
- Etim Class 8 0:
- EC000046
- Flammability Rating:
- UL 94 V-2
- Manufacturing Origin:
- USA
- Maximum Bundle Diameter:
- 11 Inch
- Maximum Bundle Diameter Metric:
- 279.0 mm
- Maximum Insulation Outer Diameter Metric:
- 3.7 mm
- Maximum Insulation Outside Diameter:
- 0.145 in
- Maximum Operating Temperature:
- 85 Degree Celsius
- Maximum Operating Temperature Celsius:
- 85.0 Degree
- Maximum Operating Temperature Fahrenheit:
- 185.0 Degree
- Maximum Recommended Voltage Rating:
- 600.0 V
- Mil Spec:
- MS3367-12-0
- Minimum Bundle Diameter:
- 1.5 Inch
- Minimum Bundle Diameter Metric:
- 8.1 mm
- Minimum Installation Temperature Celsius:
- 0 Degree Celsius
- Minimum Operating Temperature Celsius:
- -40.0 Degree
- Minimum Operating Temperature Fahrenheit:
- -40.0 Degree
- Operating Temperature Celsius:
- 85 Degree Celsius
- Operating Temperature Fahrenheit:
- 185 Degree Fahrenheit
- Operating Temperature Range Celsius:
- 0 °C to 85 °C
- Operating Temperature Range Fahrenheit:
- 32 °F to 185 °F
- Overall Length Imperial:
- 36.0 in
- Overall Length Metric:
- 914.0 mm
- Overall Width Imperial:
- 0.335 in
- Overall Width Metric:
- 8.5 mm
- Package Quantity:
- 50.0 PCS
- Plenum Rated:
- Yes
- Product Color:
- Black
- Product Material:
- Nylon 6/6
- Product Type:
- Cable Tie
- Rds Url Regulatory Data Sheet:
- https://cdmsweb.3m.com/ingredientcommunication/file/Media/hshU5W72F9o=
- Rohs Eu Comments:
- RoHS 2011/65/EU compliant without exemption
- Solution For:
- Longhaul/Metro Loop Network: Outdoor
- Tensile Strength Imperial:
- 175 lbs
- Tensile Strength Metric:
- 79.38 kg
- Ul Approval:
- Yes
- Units Per Bag:
- 50
- Units Per Case:
- 500
- Uv Resistant:
- Yes
- Department:
- Electrical
- Product Subgroup:
- Cable Ties & Mounts
- Product Group:
- Cable Management & Identification
3M 7000031861 – Frequently Asked Questions
1) Can I use these 3M cable ties in a plenum or return air space?
Yes. The CT36BK175-L is plenum rated, UL Listed to 62275 Type 21 or 21S with an AH-2 plenum rating for use in air handling spaces. That is the rating an inspector looks for on ties run above a suspended ceiling used as a return plenum.
2) Will these cable ties hold up outdoors in sunlight?
Yes. The black CT36BK175-L is UV resistant Nylon 6/6, and 3M lists it as a solution for outdoor longhaul and metro loop network work. Black UV-stabilized nylon is the standard choice for exterior runs; natural-color nylon ties are the ones that go brittle in sun.
3) How much weight will a 175 lb tensile cable tie actually hold?
The CT36BK175-L is rated at 175 lbs (79.38 kg) minimum loop tensile strength, which puts it in the heavy duty class rather than general purpose. That rating is the loop strength of the tie, not a lifting or support rating, so bundles still need independent support per code.
4) What temperature range can these 36 inch nylon ties be used in?
Continuous operating range is -40 to 185 degrees F (-40 to 85 C). One thing to watch on install: 3M specifies a minimum installation temperature of 0 C (32 F), so if you are tying off in freezing weather, warm the ties before cinching them or the nylon can crack.
5) Do these 3M ties meet MIL spec for military or aerospace harness work?
The CT36BK175-L is listed to MS3367-12-0 and is RoHS 2011/65/EU compliant without exemption. It also carries a UL 94 V-2 flammability rating on the nylon.
6) How many cable ties come in a case of 3M 7000031861, and how are they bagged?
That part number ships 500 ties per case, bagged 50 to a bag. Useful if you are splitting stock between crews or trucks without opening the whole case.
7) Are these 3M cable ties made in the USA?
3M lists manufacturing origin as USA for the CT36BK175-L, with country of origin shown as Honduras. If a job carries a Buy American or domestic-content requirement, use those two values as stated on the 3M data.
