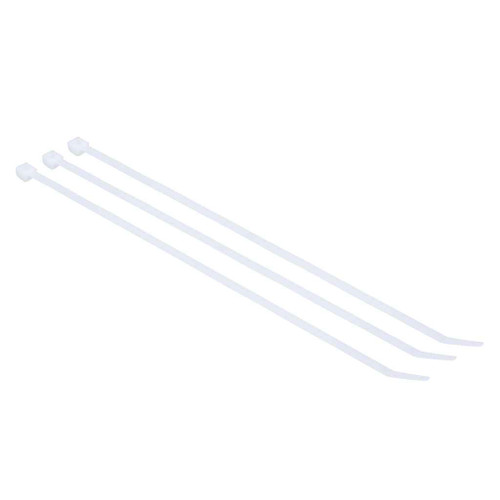

3M™ Cable Tie CT6NT40-C, 1000/Case

  • Features

    • Secure wire bundles and harness components quickly, without slipping
    • Curved tip allows for faster threading and installation
    • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
    • Made in the USA


7000133454 - spec sheet

Manufacturer Resources

Product Specs

Ais Url Article Information Sheet:
https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xMY_ZP82xNv70k17zHvu9lxtD7xtBevSS
Cable Diameter Range:
8,1 - 39,4 mm
Cable Length Imperial:
6.0 in
Cable Length Metric:
147.32 mm
Cable Management Products:
Cable Ties
Cable Tie Base Height:
6 in
Cable Tie Length:
218.0 mm
Cable Tie Type:
Intermediate
Country Of Origin:
Honduras
Etim Class 8 0:
EC000046
Flammability Rating:
UL 94 V-2
Manufacturing Origin:
USA
Maximum Bundle Diameter:
1.25 Inch
Maximum Bundle Diameter Metric:
51.0 mm
Maximum Insulation Outer Diameter Metric:
3.7 mm
Maximum Insulation Outside Diameter:
0.145 in
Maximum Operating Temperature:
85 Degree Celsius
Maximum Operating Temperature Celsius:
85.0 Degree
Maximum Operating Temperature Fahrenheit:
185.0 Degree
Maximum Recommended Voltage Rating:
600.0 V
Mil Spec:
MS3367-5-9
Minimum Bundle Diameter:
0.0625 Inch
Minimum Bundle Diameter Metric:
1.6 mm
Minimum Installation Temperature Celsius:
-20 Degree Celsius
Minimum Operating Temperature Fahrenheit:
-40.0 Degree
Operating Temperature Celsius:
85 Degree Celsius
Operating Temperature Fahrenheit:
185 Degree Fahrenheit
Operating Temperature Range Celsius:
-40 °C to 85 °C
Operating Temperature Range Fahrenheit:
-40 °F to 185 °F
Overall Length Imperial:
5.8 in
Overall Length Metric:
147.0 mm
Overall Width Imperial:
0.142 in
Overall Width Metric:
3.6 mm
Package Quantity:
100.0 EACH
Plenum Rated:
Yes
Product Material:
Nylon 6/6
Product Type:
Standard
Rds Url Regulatory Data Sheet:
https://cdmsweb.3m.com/ingredientcommunication/file/Media/I14sCjuQlxU=
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Solution For:
Longhaul/Metro Loop Network: Outdoor
Tensile Strength Imperial:
40 lbs
Tensile Strength Metric:
18.14 kg
Ul Approval:
Yes
Units Per Bag:
100
Units Per Case:
1000
Uv Resistant:
No
Department:
Electrical
Product Subgroup:
Cable Ties & Mounts

3M 7000133454 – Frequently Asked Questions

1) Can 3M CT6NT40-C cable ties be used in a plenum or return air space?
Yes. The CT6NT40-C is plenum rated AH-2 and UL Listed 62275 Type 21 or 21S for use in air handling spaces, so it is acceptable above a plenum ceiling where standard ties are not.
2) Are these 3M cable ties OK outdoors in sunlight?
No. The natural nylon 6/6 CT6NT40-C is not UV resistant, so keep it to indoor and protected runs. For exposed exterior work use a black UV-stabilized tie instead.
3) What temperature range can these ties be installed and used in?
Service range is -40 F to 185 F (-40 C to 85 C). Installation should not be done below -20 C, since nylon gets brittle and the pawl can crack when you cinch it cold.
4) Do these ties meet a military spec for harness work?
The CT6NT40-C is called out to MS3367-5-9, the spec commonly referenced for plain nylon self-clinching cable straps in harness assemblies.
5) What is the flammability rating and voltage rating on the 3M CT6NT40-C?
UL 94 V-2 flammability, with a maximum recommended voltage rating of 600 V. That covers typical branch circuit and control wiring bundles in commercial buildings.
6) How many ties come in a case of 3M 7000133454?

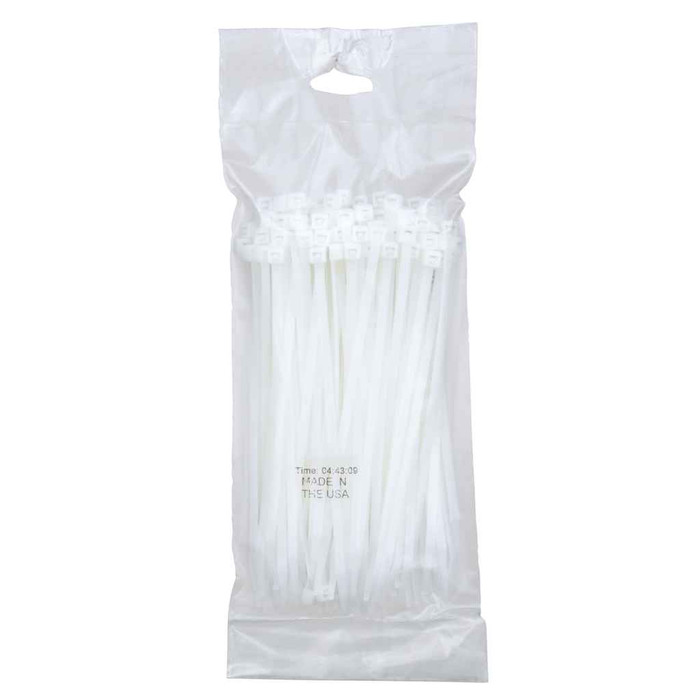

1000 ties per case, packed 100 per bag, so you can break it out by the bag to crews without opening the whole case.
7) Are 3M CT6NT40-C cable ties RoHS compliant, and where are they made?
RoHS 2011/65/EU compliant without exemption. Manufacturing origin is listed as USA, with country of origin Honduras.
