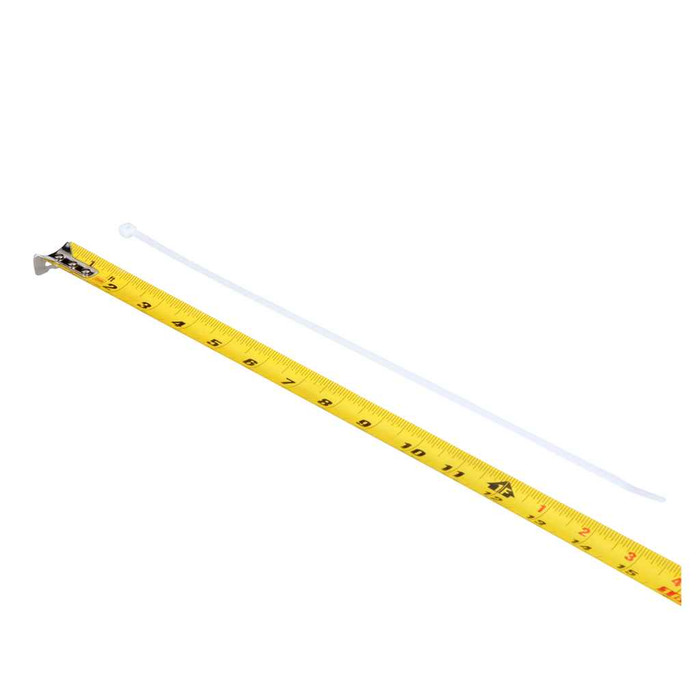

3M™ Cable Tie CT15NT50-D, 2500/Case
7000133463 - spec sheet
Features
- Made in the USA
- Secure wire bundles and harness components quickly, without slipping
- UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
- Curved tip allows for faster threading and installation
7000133463 - spec sheet
Manufacturer Resources
Product Specs
- Ais Url Article Information Sheet:
- https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xMY_ZP82xNv70k17zHvu9lxtD7xtBevSS
- Cable Diameter Range:
- 8,1 - 39,4 mm
- Cable Length Imperial:
- 15.0 in
- Cable Length Metric:
- 370.84 mm
- Cable Management Products:
- Cable Ties
- Cable Tie Base Height:
- 15 in
- Cable Tie Length:
- 399.0 mm
- Cable Tie Type:
- Standard
- Country Of Origin:
- Honduras
- Etim Class 8 0:
- EC000046
- Flammability Rating:
- UL 94 V-2
- Manufacturing Origin:
- USA
- Maximum Bundle Diameter:
- 4 Inch
- Maximum Bundle Diameter Metric:
- 102.0 mm
- Maximum Insulation Outer Diameter Metric:
- 3.7 mm
- Maximum Insulation Outside Diameter:
- 0.145 in
- Maximum Operating Temperature:
- 85 Degree Celsius
- Maximum Operating Temperature Celsius:
- 85.0 Degree
- Maximum Operating Temperature Fahrenheit:
- 185.0 Degree
- Maximum Recommended Voltage Rating:
- 600.0 V
- Mil Spec:
- MS3367-2-9
- Minimum Bundle Diameter:
- 0.0625 Inch
- Minimum Bundle Diameter Metric:
- 1.6 mm
- Minimum Installation Temperature Celsius:
- -20 Degree Celsius
- Minimum Operating Temperature Celsius:
- -40.0 Degree
- Minimum Operating Temperature Fahrenheit:
- -40.0 Degree
- Operating Temperature Celsius:
- 85 Degree Celsius
- Operating Temperature Fahrenheit:
- 185 Degree Fahrenheit
- Operating Temperature Range Celsius:
- -40 °C to 85 °C
- Operating Temperature Range Fahrenheit:
- -40 °F to 185 °F
- Overall Length Imperial:
- 14.6 in
- Overall Length Metric:
- 371.0 mm
- Overall Width Imperial:
- 0.18 in
- Overall Width Metric:
- 4.6 mm
- Package Quantity:
- 500.0 PCS
- Plenum Rated:
- Yes
- Product Material:
- Nylon 6/6
- Product Type:
- Cable Ties
- Rds Url Regulatory Data Sheet:
- https://cdmsweb.3m.com/ingredientcommunication/file/Media/I14sCjuQlxU=
- Rohs Eu Comments:
- RoHS 2011/65/EU compliant without exemption
- Solution For:
- Longhaul/Metro Loop Network: Outdoor
- Tensile Strength Imperial:
- 50 lbs
- Tensile Strength Metric:
- 22.68 kg
- Ul Approval:
- Yes
- Units Per Bag:
- 500
- Units Per Case:
- 2500
- Uv Resistant:
- No
- Department:
- Electrical
- Product Subgroup:
- Cable Ties & Mounts
3M 7000133463 – Frequently Asked Questions
1) Can I use these 3M cable ties in a plenum or return-air ceiling?
Yes. The CT15NT50-D is plenum rated and the description states UL Listed 62275 Type 21 or 21S with an AH-2 plenum rating for use in air handling spaces, so it is acceptable for above-ceiling return-air plenums where standard nylon ties are not.
2) Will these hold up outdoors in direct sunlight?
No. The natural nylon CT15NT50-D is not UV resistant, so it should not be used in sustained direct sun. For exposed exterior runs choose a black UV-stabilized tie instead. Temperature is not the limit here, it operates from -40 F to 185 F (-40 C to 85 C), but unprotected natural nylon degrades under UV.
3) How many ties come in a case of 3M 7000133463?
7000133463 ships 2,500 ties per case, packed 500 per bag, so five bags to a case. That bag count is useful for splitting stock between trucks or floors without opening the full case.
4) Are these cable ties flame rated for use in an equipment enclosure?
The material is Nylon 6/6 with a UL 94 V-2 flammability rating, and the tie carries a maximum recommended voltage rating of 600 V, which covers typical branch-circuit and control panel work.
5) Can I install these in a cold warehouse or outdoors in winter?
Installation should be done at -20 C or warmer. Once installed, the tie operates down to -40 C (-40 F). Nylon stiffens as it chills, so pulling ties tight below the -20 C install floor risks cracking the strap.
6) Does the 3M CT15NT50-D meet a military spec?
It is listed to MS3367-2-9, the military specification callout for this class of self-clinching plastic cable strap, and it is RoHS 2011/65/EU compliant without exemption. Both matter on government and institutional submittals.
7) Where are 3M CT15NT50-D cable ties made?
The record lists Honduras as country of origin with USA manufacturing origin, and the product description states Made in the USA. Worth confirming against your submittal if you are working to a domestic-content requirement.
