3M 7100165292 3M™ Scotchlok™ F...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.49
$0.51

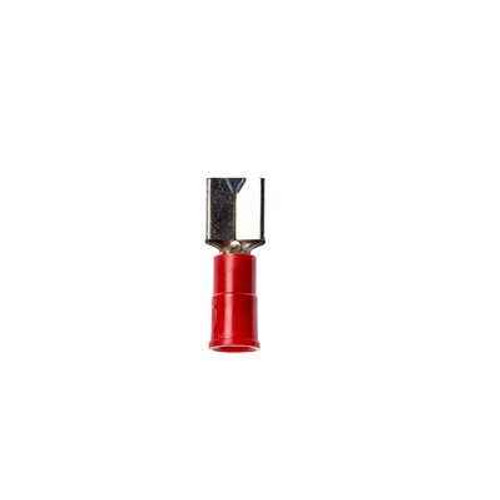

3M 7100165292 3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 100/bottle, MVI18-250DFX, 500/Case

3M 7100165292 3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 100/bottle, MVI18-250DFX, 500/Case

(No reviews yet) Write a Review

Model: 7100165292
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.49
$0.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 100/bottle, MVI18-250DFX, 500/Case

  • Features

    • Allows for quick and easy disconnect of wires
    • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
    • Dents and rolled edges of this female disconnect terminal offer excellent holding force
    • Made of durable brass for good conductivity and has corrosion-resistant tin plating
    • Mates with 0.25-in wide male tab
    • Vinyl-insulated, butted seam with an interlocking barrel and funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Manufacturer Resources

Product Specs

Ais Url Article Information Sheet:
https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xm82G4YtZov70k17zHvu9lxtD7xtBevSS
Barrel Inside Diameter:
0.076 Inch
Barrel Style:
Interlocking Barrel
Connection Width Imperial:
0.25 in
Connection Width Metric:
6.35 mm
Country Of Origin:
United States
Disconnect Type:
Female
Fastener Orientation:
Female
Fork Type:
Standard Fork
Insulation Material:
Vinyl
Manufacturing Origin:
USA
Mates With Female Width:
0.250 Inch
Mates With Male Tab Width W:
0.250 Inch
Maximum Conductor Size Imperial:
18 AWG
Maximum Conductor Size Metric:
1 mm²
Maximum Insulation Outer Diameter Imperial:
0.145 in
Minimum Conductor Size Imperial:
22 AWG
Minimum Conductor Size Metric:
.34 mm²
Overall Length Imperial:
0.83 in
Packaging:
100 per bottle
Pad Width:
0.25
Rds Url Regulatory Data Sheet:
https://cdmsweb.3m.com/ingredientcommunication/file/Media/beqcwmlW8Bo=
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Solution For:
Wireless Network: Infrastructure Accessories
Terminal Style:
Standard
Terminal Type:
Disconnect
Ul File Number:
E70512
Units Per Case:
500
Department:
Electrical
Product Subgroup:
Lugs & Terminals
Product Type:
Disconnect Switch

3M 7100165292 – Frequently Asked Questions

1) What wire gauge does the 3M Scotchlok MVI18-250DFX female disconnect crimp onto?
The MVI18-250DFX takes 22 to 18 AWG stranded or solid conductor (0.34 to 1 mm2). The barrel inside diameter is 0.076 inch, and the vinyl sleeve will accept wire insulation up to 0.145 inch outside diameter. Anything heavier than 18 AWG needs a larger disconnect from the 16-14 or 12-10 range.
2) How hot can a vinyl insulated Scotchlok disconnect get before the insulation fails?
The rated range is -40 to 221 degrees F (-40 to 105 degrees C). That covers most HVAC cabinet, appliance and control panel work, but it rules out the terminal for high heat spots such as flue-adjacent or furnace burner wiring, where a nylon or high-temp sleeve is required instead.
3) Is the 3M MVI18-250DFX disconnect UL listed and RoHS compliant?
It is covered under 3M UL file number E70512 and is RoHS 2011/65/EU compliant without exemption. That combination is what most institutional and government procurement specs are looking for on a crimp terminal.
4) Does this brass disconnect hold up in damp or corrosive locations?
The terminal body is brass for conductivity with corrosion-resistant tin plating, and the vinyl sleeve covers the barrel. That suits general indoor, panel and equipment work. It is not a sealed or heat-shrink adhesive-lined terminal, so direct outdoor exposure or wet wells call for an environmentally sealed disconnect instead.
5) Are 3M Scotchlok terminals made in the USA for buy-American procurement?
Country of origin on the MVI18-250DFX is the United States, which is what institutional and federal buyers need on the line item when domestic sourcing is written into the spec.
6) How many 3M MVI18-250DFX disconnects come in a case?
They are bottled 100 per bottle, with 500 units per case, so a case is five bottles. The bottle packaging is meant for bench and service-van use rather than a loose bag.
7) What is the overall length of the MVI18-250DFX female disconnect?
Overall length is 0.83 inch with a 0.25 inch pad width, so it stays compact enough for tight terminal blocks and crowded control cabinets where a longer terminal would bind against the panel door.
8) Is this a fully insulated female disconnect or the tab-only style?
It is a fully vinyl-insulated female quick-disconnect with a butted seam, interlocking barrel and a funnel-shaped PVC sleeve that guides the strands in during crimping. The dents and rolled edges in the receptacle give the holding force on the male tab, so it stays put under vibration.
