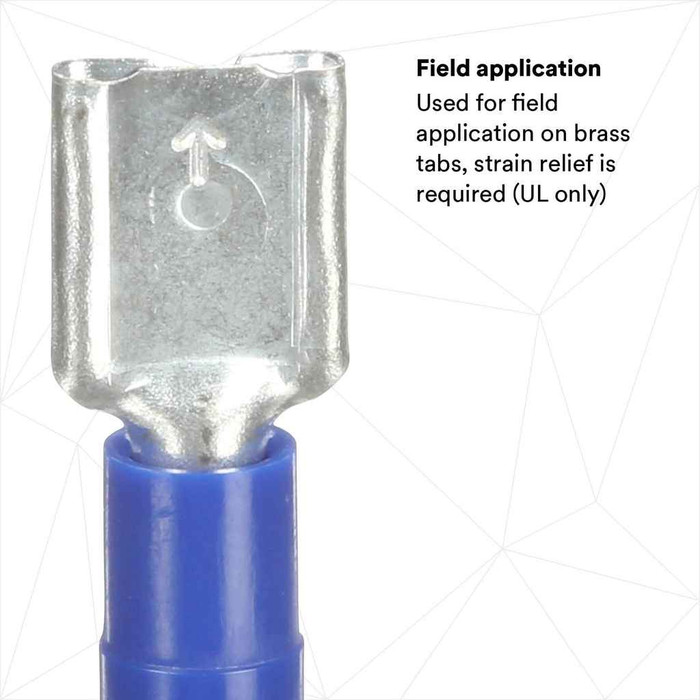

3M 7000133285 3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 100/bottle, MVU14-250DFX, 500/Case

3M 7000133285 3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 100/bottle, MVU14-250DFX, 500/Case

(No reviews yet) Write a Review

Model: 7000133285
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.44
$0.44
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

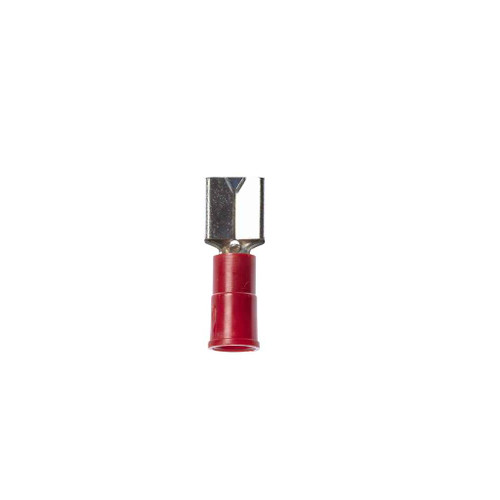

You may also like
3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 100/bottle, MVU14-250DFX, 500/Case

  • Features

    • Allows for quick and easy disconnect of wires
    • Dents and rolled edges of this female disconnect terminal offer excellent holding force
    • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Manufacturer Resources

Product Specs

Ais Url Article Information Sheet :
https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xm82G48mePv70k17zHvu9lxtD7xtBevSS
Barrel Inside Diameter:
0.080 Inch
Barrel Length Imperial :
0.25 Inch
Barrel Style:
Butted
Conductor Sizes Imperial :
16 - 14 AWG
Connection Type:
Wire
Connection Width Imperial :
0.25 in
Connection Width Metric :
6.35 mm
Connector Connector Tool:
Connector
Connector Style:
Insulation Displacement
Country Of Origin:
United States
Diameter D :
0.23 Inch
Disconnect Type:
Female
Fastener Orientation:
Female
Flame Retardant:
No
Grease Filling Against Corrosion:
No
Insulation Color:
Blue
Insulation Material:
Vinyl
Interrupt Free Shifting:
No
Manufacturing Origin:
USA
Mates With Female Width:
0.250 Inch
Mates With Male Tab Width W :
0.25 Inch
Maximum Conductor Size Imperial :
16 AWG
Maximum Conductor Size Metric :
1.5 mm²
Maximum Insulation Outer Diameter Imperial :
0.145 in
Maximum Insulation Outer Diameter Metric :
3.7 mm
Maximum Insulation Outside Diameter:
0.145 in
Maximum Operating Temperature Celsius :
105.0 Degree
Maximum Operating Temperature Fahrenheit :
221.0 Degree
Maximum Recommended Voltage Rating:
600.0 V
Minimum Conductor Size Imperial :
14 AWG
Minimum Conductor Size Metric :
2.5 mm²
Overall Diameter Imperial :
0.23 in
Overall Length Imperial :
0.87 in
Overall Length Metric :
22.09 mm
Overall Width Imperial :
0.37 in
Packaging:
100 per bottle
Pad Width:
0.25
Product Color:
Blue
Product Material:
ETP Copper
Rds Url Regulatory Data Sheet :
https://cdmsweb.3m.com/ingredientcommunication/file/Media/4N5AKEHpZWM=
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Solution For:
Wireless Network: Infrastructure Accessories
Tab Width:
0.25
Terminal Style:
Standard
Terminal Type:
Disconnect
Ul File Number:
E70512
Units Per Case:
500
