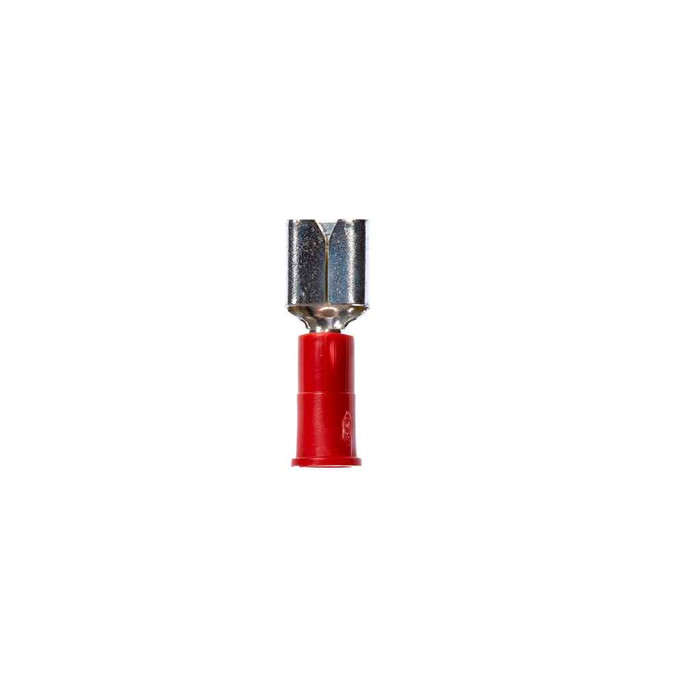

3M Scotchlok Female Disconnect Terminal 22-18 AWG Red Vinyl Insulated 0.25 Inch Tab Width

3M Scotchlok Female Disconnect Terminal 22-18 AWG Red Vinyl Insulated 0.25 Inch Tab Width

Professional Wire Connection Solution with Quick Disconnect Capability

The 3M Scotchlok Female Disconnect Terminal delivers reliable wire connection performance for 22-18 AWG conductors with red vinyl insulation and 0.25 inch tab width compatibility. This professional-grade terminal features a butted-seam barrel construction with ETP copper material and accommodates maximum operating temperatures up to 105�C (221�F) with 600V voltage rating. The funnel-designed polyvinyl chloride sleeve ensures easy wire insertion while dents and rolled edges provide excellent holding force for secure connections.

Professional Features & Benefits

• 22-18 AWG Wire Range: Accommodates common wire sizes for versatile electrical connection applications with reliable conductor compatibility.
• 600V Voltage Rating: Supports high-voltage applications with professional-grade electrical performance and safety standards.
• Red Vinyl Insulation: Provides clear visual identification and electrical protection with durable polyvinyl chloride material construction.
• 0.25 Inch Tab Width: Ensures proper mating compatibility with standard male tabs for secure mechanical and electrical connections.
• ETP Copper Construction: Delivers excellent conductivity and corrosion resistance for long-term electrical performance and reliability.
• 105�C Operating Temperature: Withstands elevated temperatures for demanding electrical environments and professional installations.
• Quick Disconnect Design: Allows for easy wire connection and disconnection without tools for efficient maintenance and service operations.

Technical Specifications

• Barrel Inside Diameter: 0.080 Inch
• Barrel Length Imperial: 0.25 Inch
• Barrel Style: Butted
• Color Family Incorporate Product Color: Red
• Conductor Size: 22 - 18 AWG
• Connection Type: Wire
• Connection Width Imperial: 0.25 in
• Connection Width Metric: 6.35 mm
• Connector Connector Tool: Connector
• Connector Style: Insulation Displacement
• Diameter D: 0.23 Inch
• Disconnect Type: Female
• Fastener Orientation: Female
• Flame Retardant: No
• Grease Filling Against Corrosion: No
• Insulation Color: Red
• Insulation Material: Vinyl
• Insulation Outer Diameter Metric: 3.68 mm
• Interrupt Free Shifting: No
• Manufacturer Catalog Number: 7000133356
• Manufacturing Origin: USA
• Mates With Female Width: 0.250 Inch
• Mates With Male Tab Width W: 0.25 Inch
• Maximum Conductor Size: 18 AWG
• Maximum Insulation Outer Diameter Imperial: 0.145 Inch
• Maximum Insulation Outer Diameter Metric: 3.7 mm
• Maximum Insulation Outside Diameter: 0.145 in
• Maximum Operating Temperature Celsius: 105 Degree Celsius
• Maximum Operating Temperature Fahrenheit: 221 Degree Fahrenheit
• Maximum Recommended Voltage Rating: 600 V
• Maximum Wire Gauge: 18 AWG
• Minimum Conductor Size: 22 AWG
• Minimum Wire Gauge: 22 AWG
• Overall Diameter Imperial: 0.23 in
• Overall Length Imperial: 0.87 in
• Overall Length Metric: 22.09 mm
• Overall Width Imperial: 0.37 in
• Package Height: 4.37500 in
• Package Length: 1.62500 in
• Package Weight: 0.3961 LBS
• Pad Width: 0.25 in
• Product Material: ETP Copper
• Tab Width: 0.187
• Terminal Style: Standard
• Terminal Type: Standard

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Connections
• Control Circuit Wiring
• Automotive Electrical Systems
• Industrial Equipment Connections
• HVAC Control Wiring
• Appliance Wire Connections
• Electronic Device Assembly

Why Choose 3M Quality?

3M Scotchlok terminals deliver proven reliability with USA manufacturing origin and professional-grade ETP copper construction. The 600V voltage rating and 105�C temperature capability ensure dependable performance in demanding electrical applications, while the quick disconnect design provides efficient maintenance and service access for professional installations.
